3-Way Movement

��#��#!�##�#!
#Passenger Seat - 3-Way Movement:

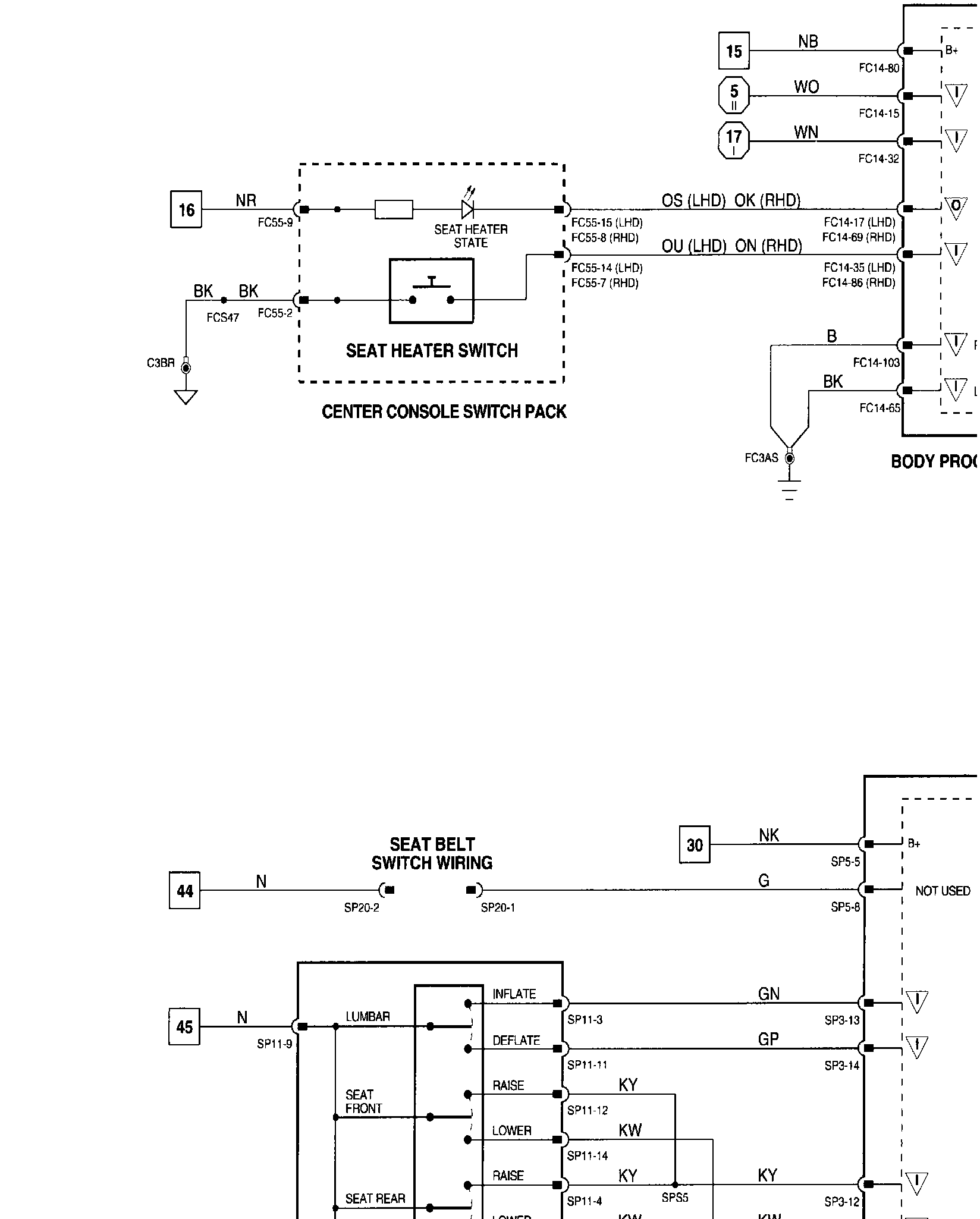

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

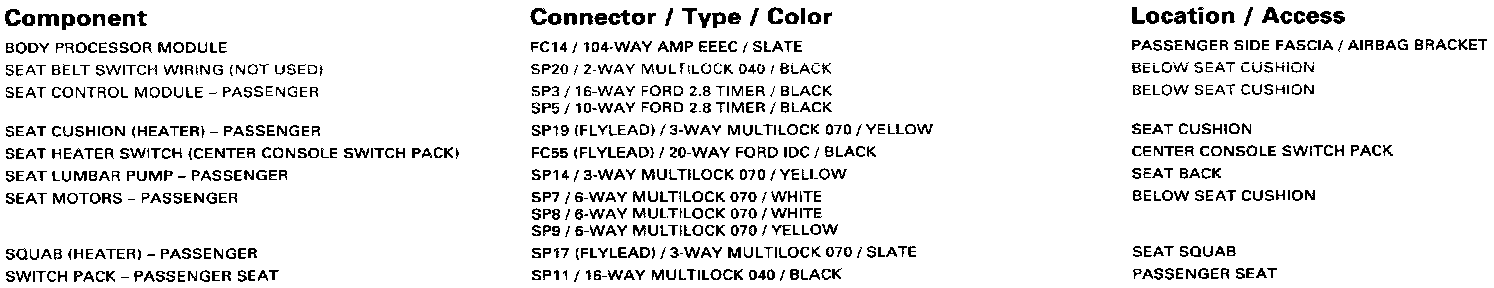

Passenger's Seat - 3-Way Movement: Components:

Components Informations

Passenger's Seat - 3-Way Movement: Harness-To-Harness Connectors:

Harness-To-Harness Connector Informations

Passenger's Seat - 3-Way Movement: Grounds:

Grounds Informations

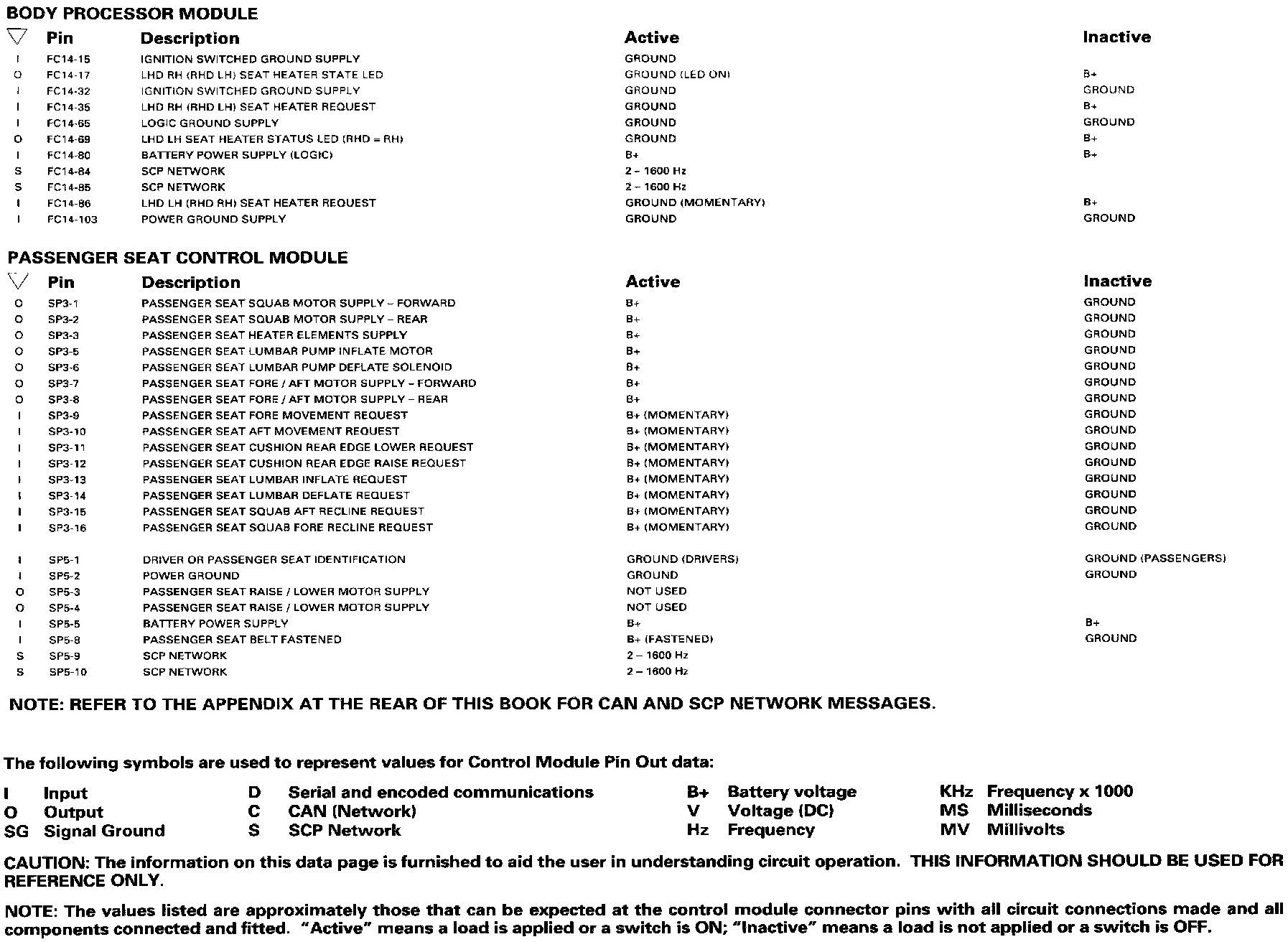

Passenger's Seat - 3-Way Movement: Control Module Pin Out Information:

Control Module Pin Out Informations
