2-Way Movement

��#5�#��#)�#��#Passenger Seat - 2-Way Movement:

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

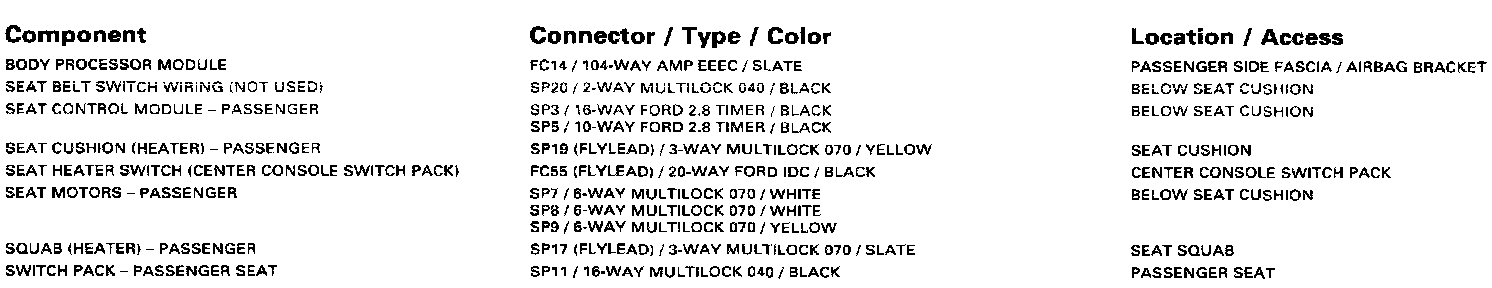

Passenger's Sear - 2-Way Movement: Components:

Components Informations

Passenger's Sear - 2-Way Movement: Harness-To-Harness Connectors:

Harness-To-Harness Connector Informations

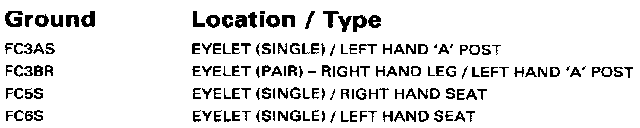

Passenger's Sear - 2-Way Movement: Grounds:

Grounds Informations

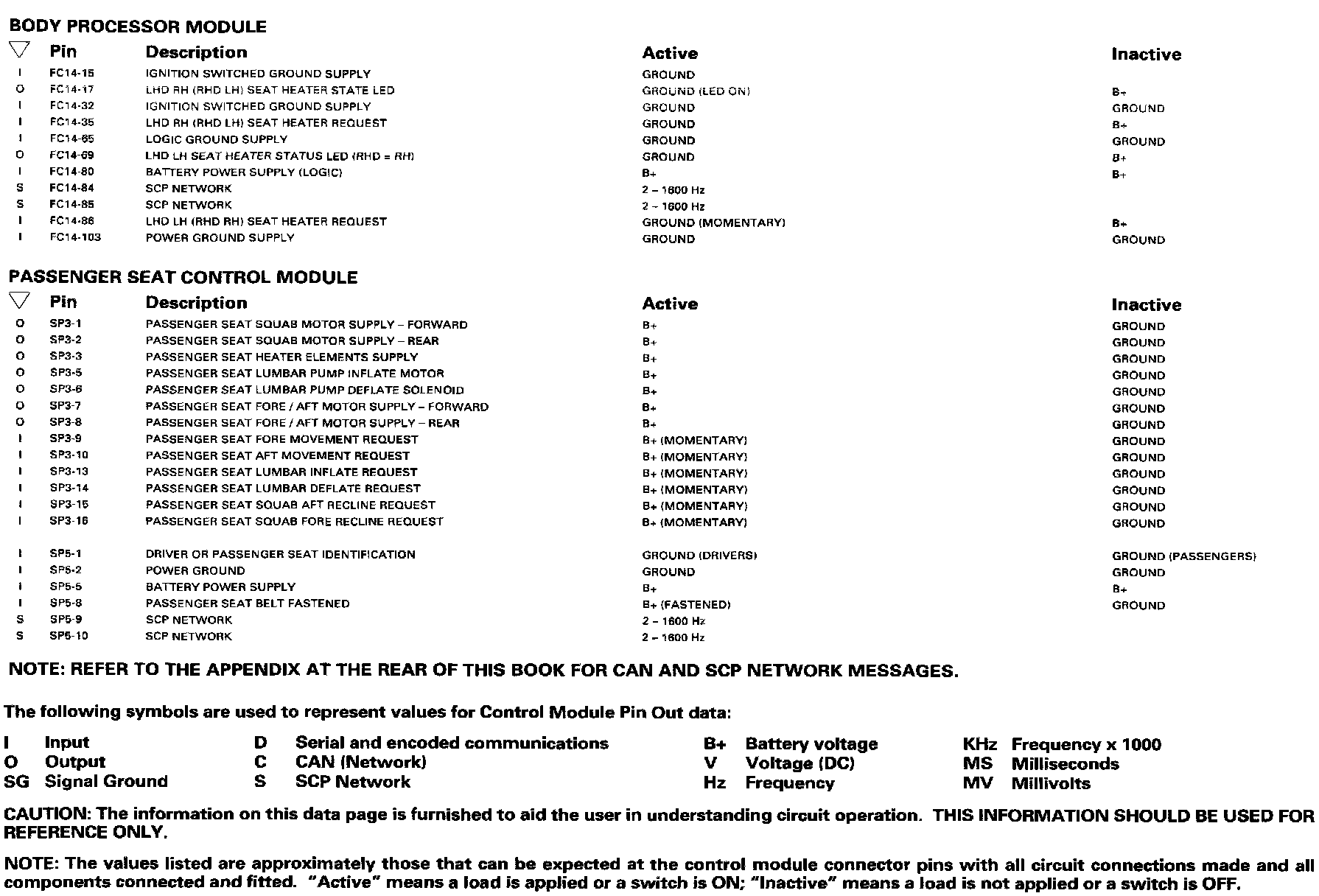

Passenger's Sear - 2-Way Movement: Control Module Pin Out Information:

Control Module Pin Out Informations
