Without Memory

'-�"�I�"Ae�"Nz�"a��"Driver Seat - Non Memory:

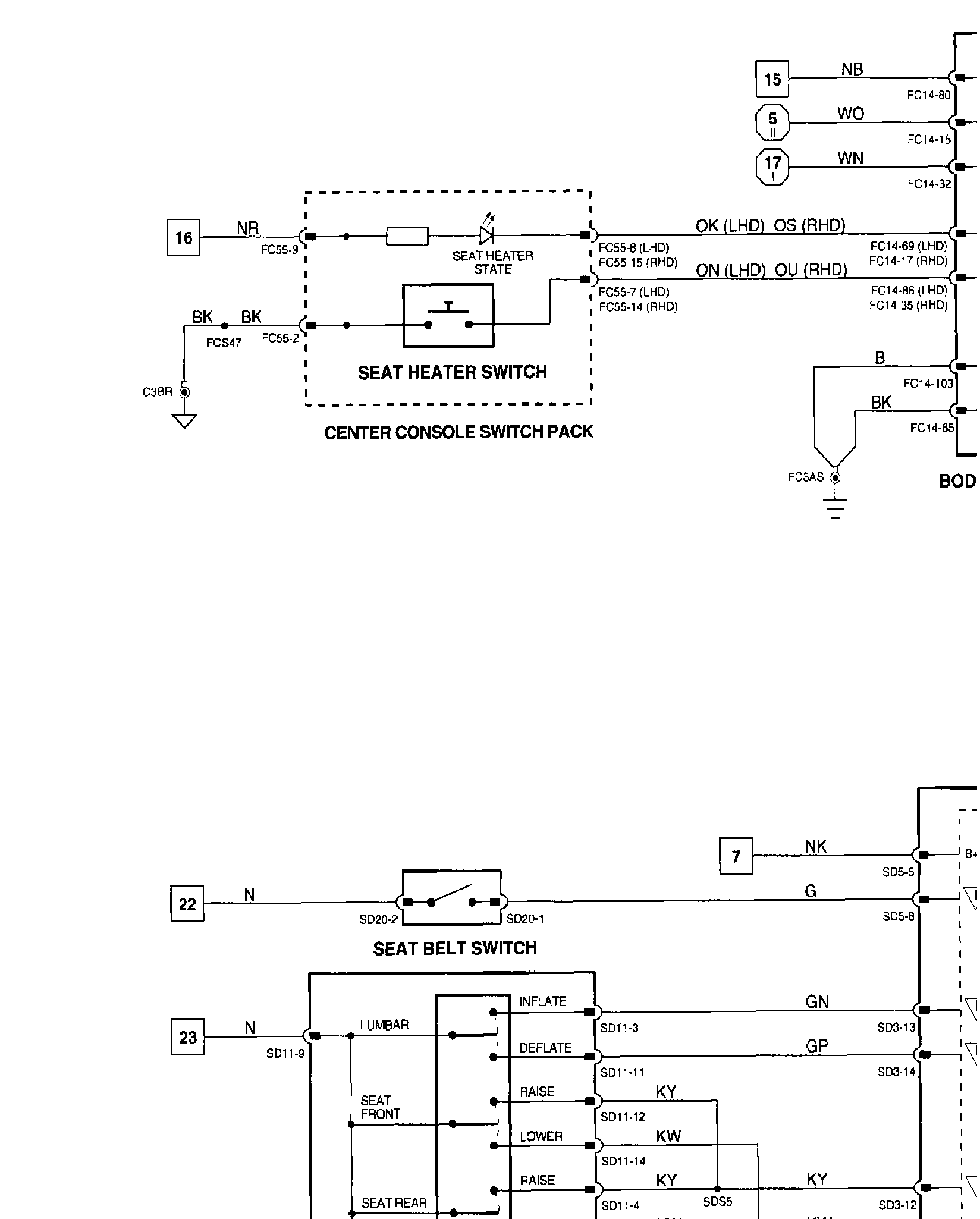

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

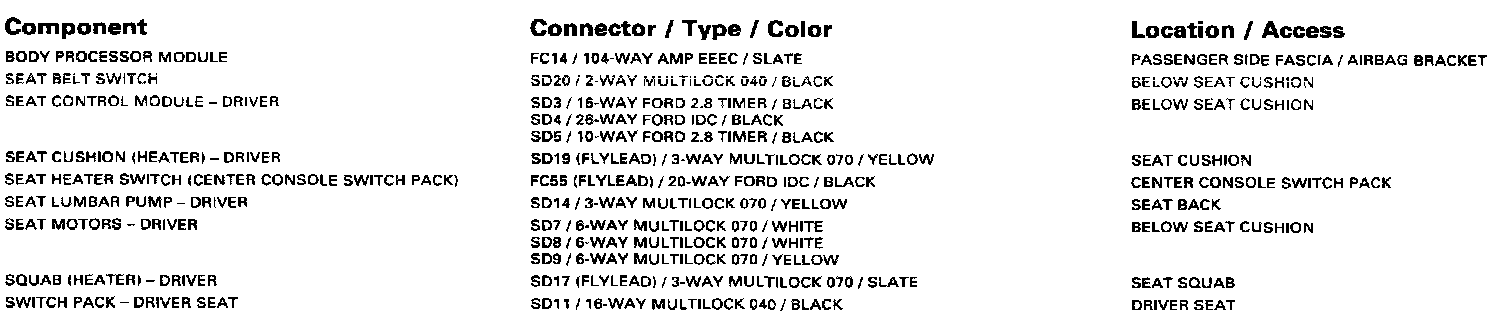

Driver's Seat - Non Memory: Components:

Components Informations

Driver's Seat - Non Memory: Harness-To-Harness Connectors:

Harness-To-Harness Connector Informations

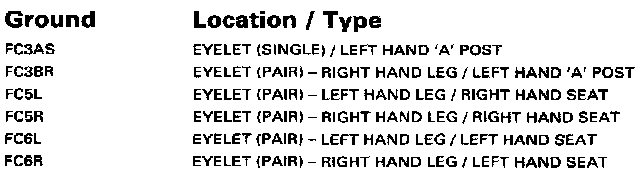

Driver's Seat - Non Memory: Grounds:

Grounds Informations

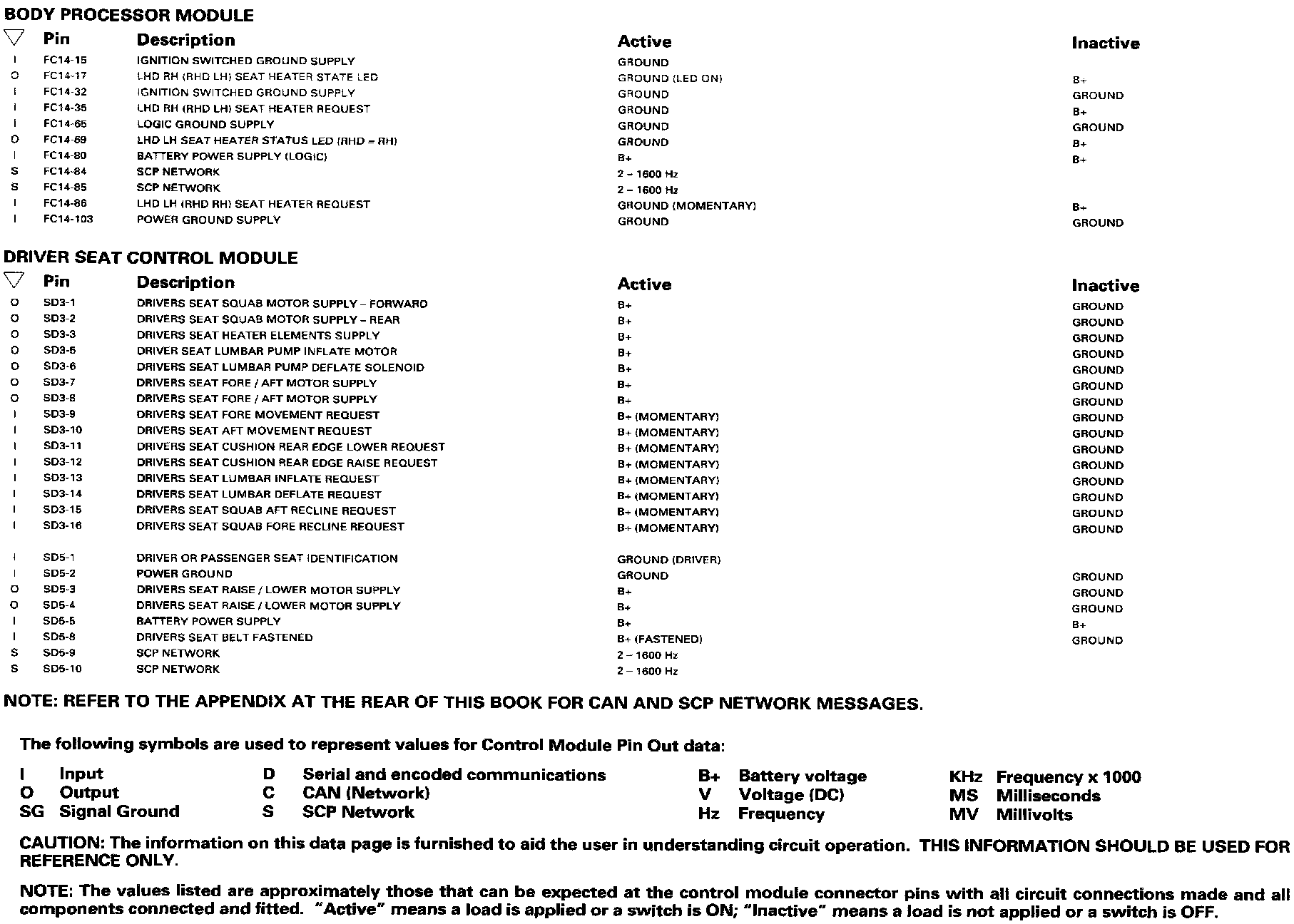

Driver's Seat - Non Memory: Control Module Pin Out Information:

Control Module Pin Out Informations
