Memory

�m�"*��"���"R��"���"Driver Seat - Memory:

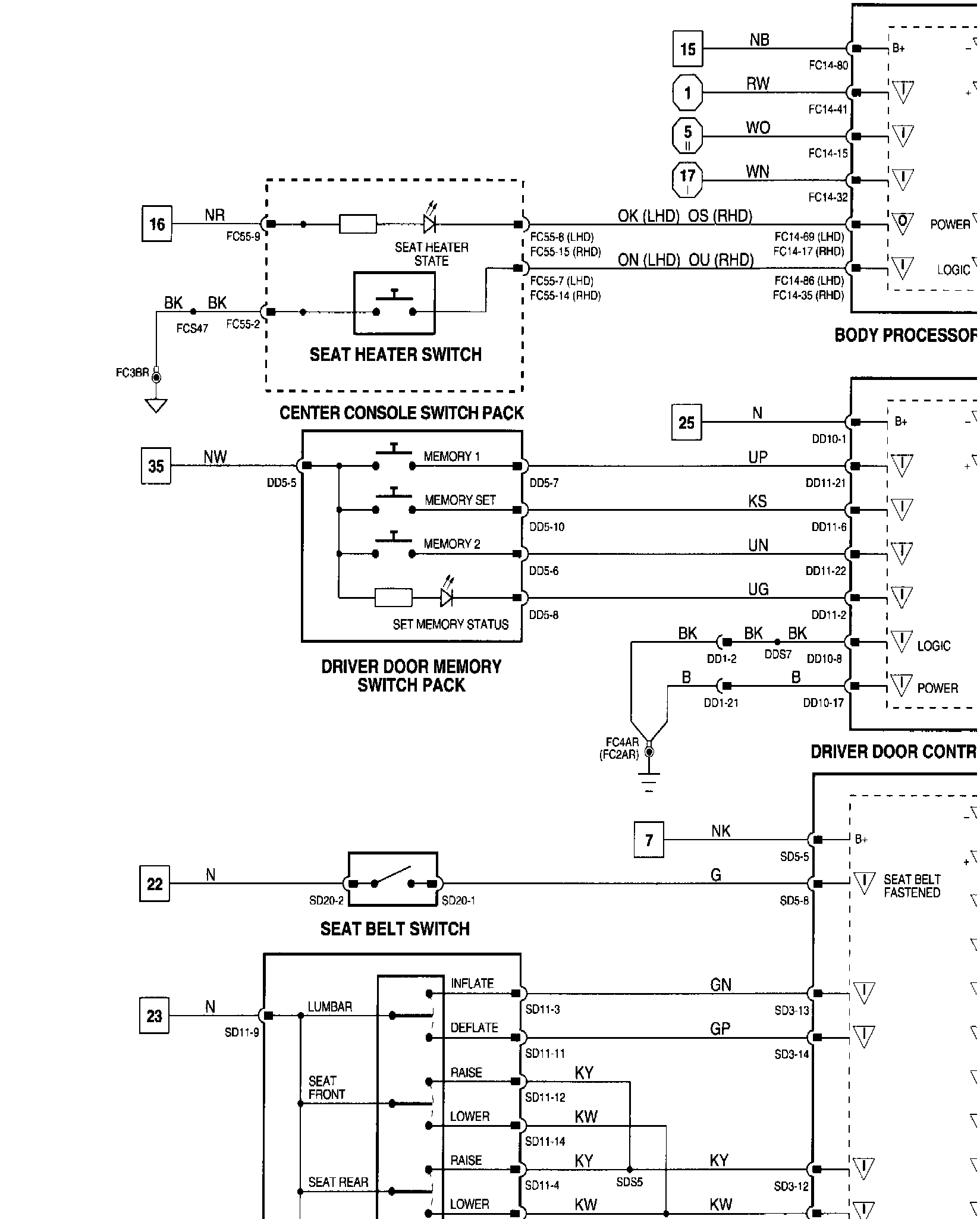

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

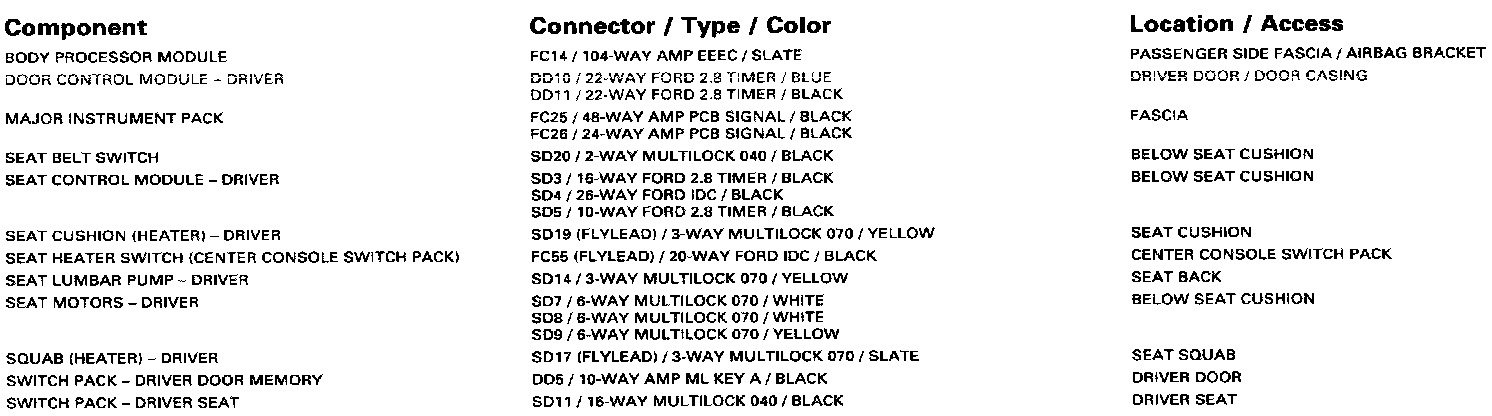

Driver's Seat - Memory: Components:

Components Informations

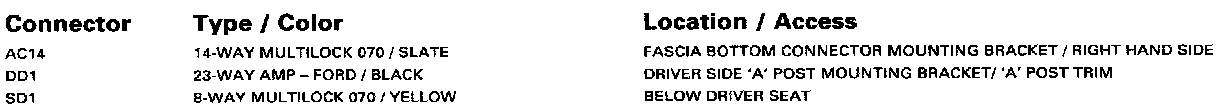

Driver's Seat - Memory: Harness-To-Harness Connectors:

Harness-To-Harness Connector Informations

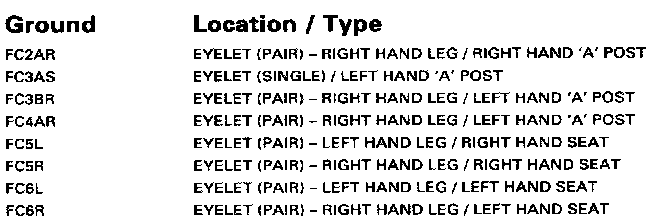

Driver's Seat - Memory: Grounds:

Grounds Informations

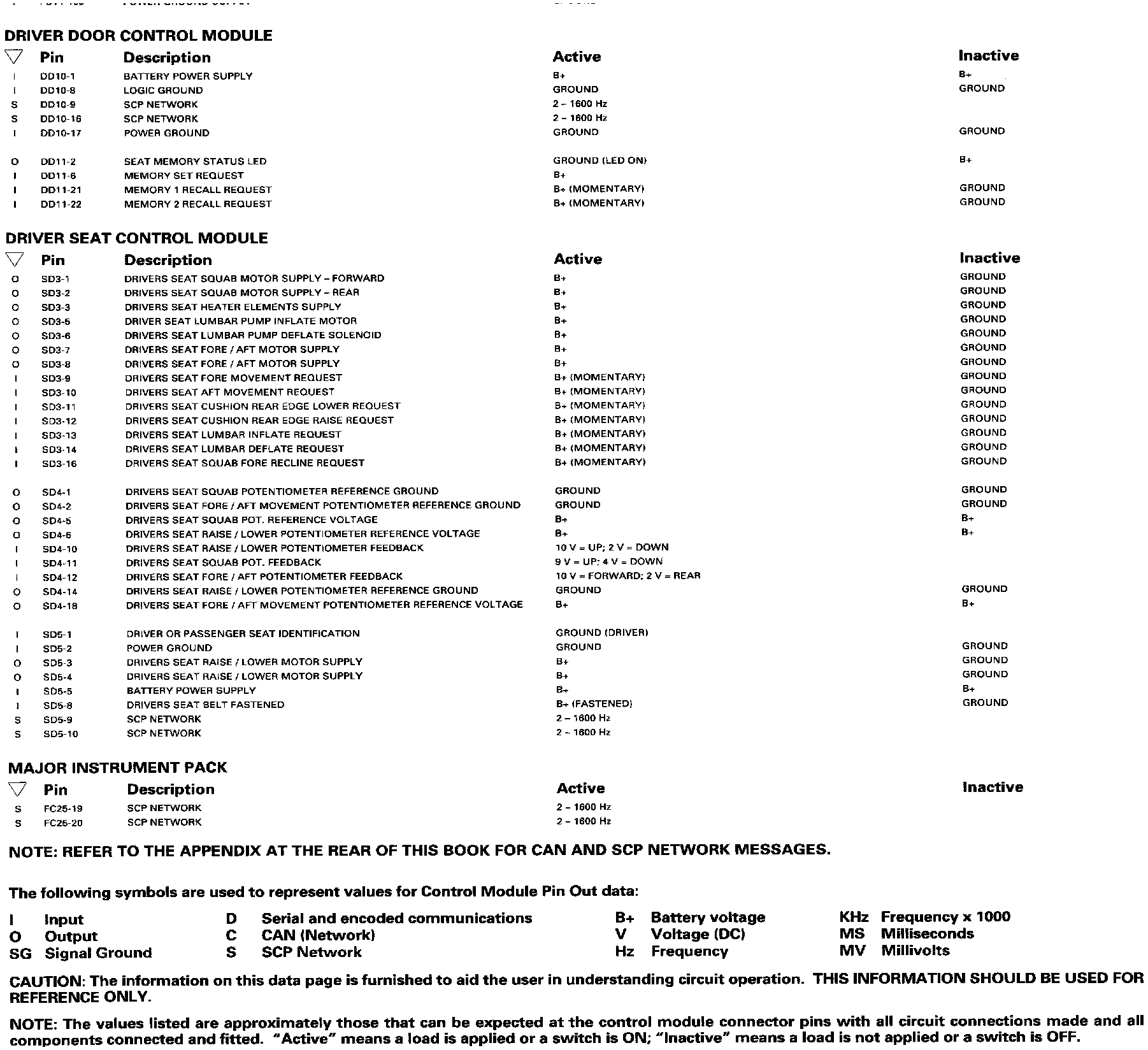

��"Driver's Seat - Memory: Control Module Pin Out Information:

Control Module Pin Out Informations
