Electrical Diagrams

��� F� �(� �?� i^� Convertible Top:

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

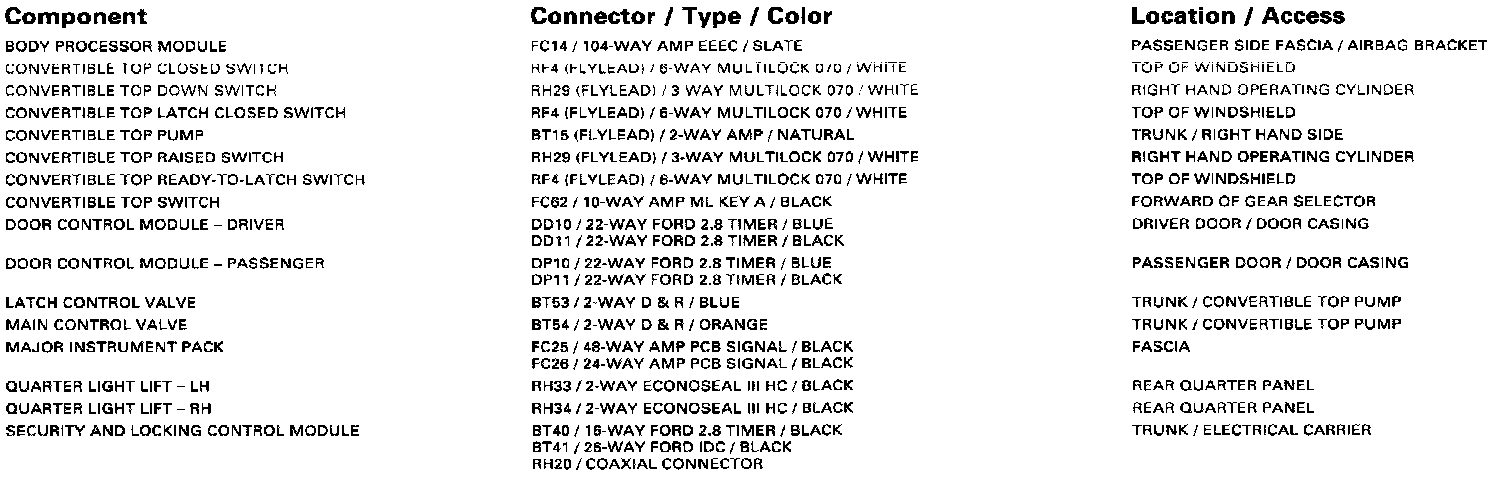

Convertible Top: Components:

Components Informations

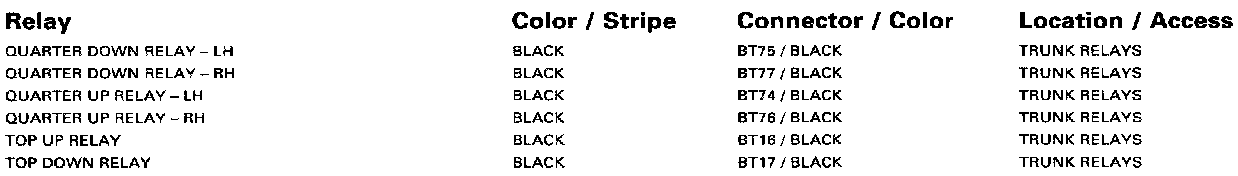

Convertible Top: Relays:

Relays Informations

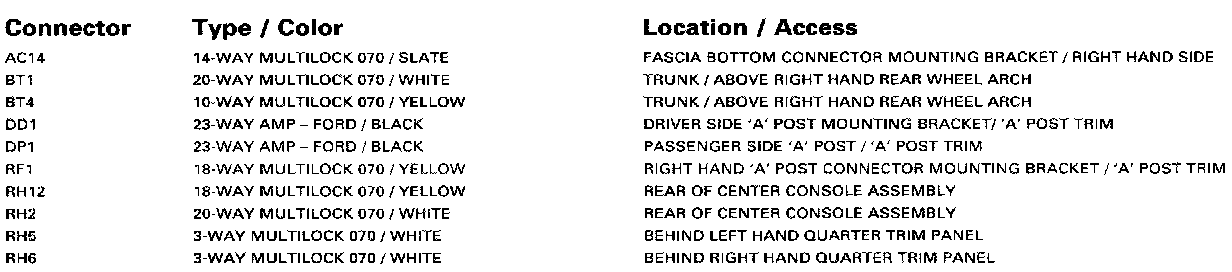

Convertible Top: Harness-To-Harness Connectors:

Harness-To-Harness Connector Informations

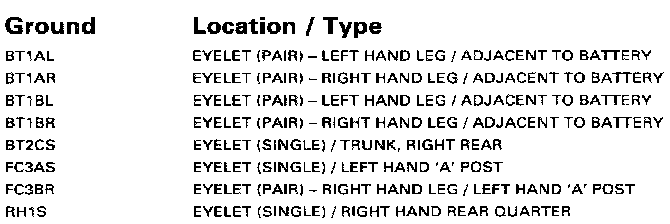

Convertible Top: Grounds:

Grounds Informations

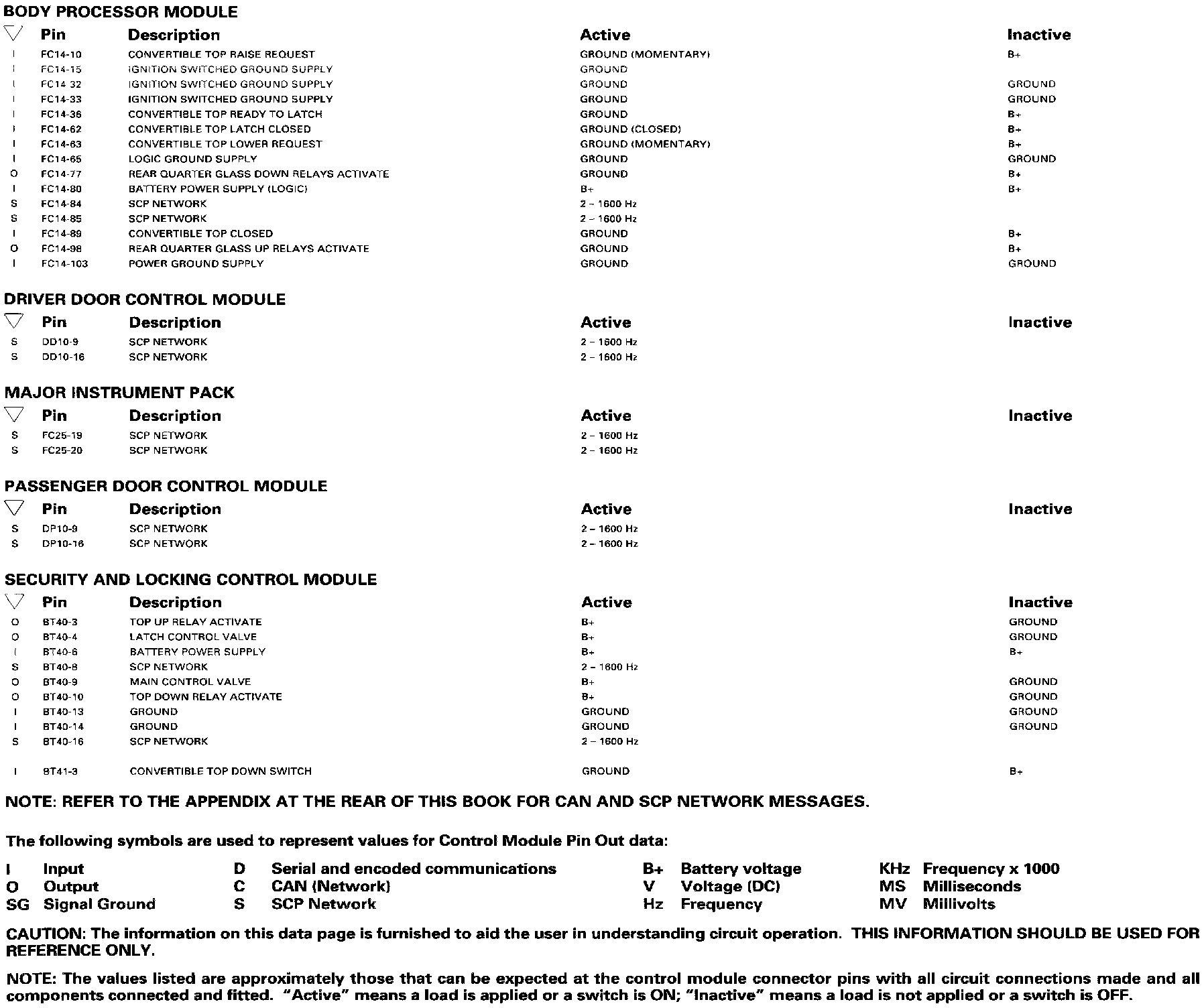

Convertible Top: Control Module Pin Out Information:

Control Module Pin Out Informations
