Power Door Lock Relay: Locations

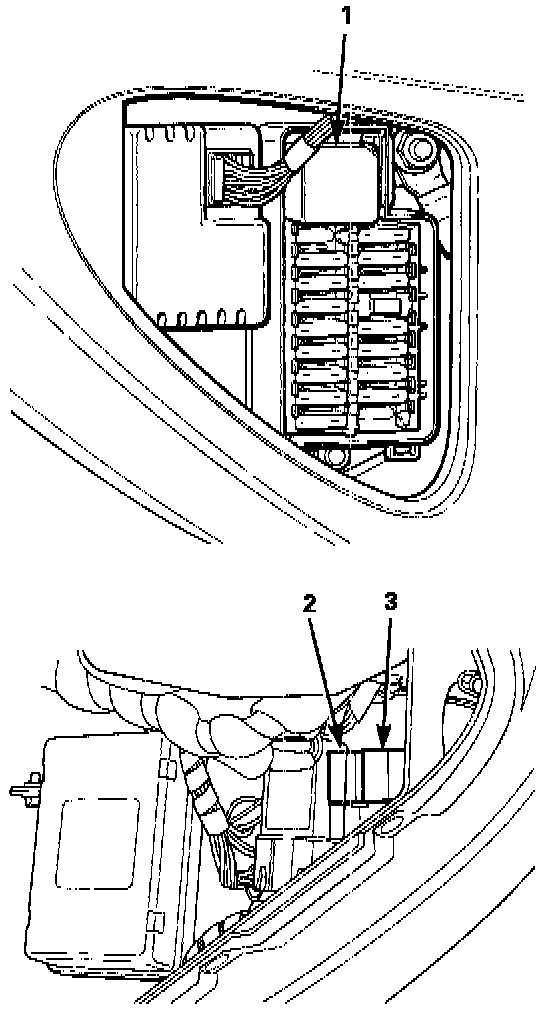

(Fig. 1) Fuse / Relays Locations:

(Fig. 2) Relay / Fuse Block Locations:

The door lock relay is located in the number 2 position (Fig. 1) of the RH Fascia Relay Box (Fig. 2) and is violet in color.
