Paint - Codes and Cross Reference

501-04

DATE
1/96

XK8

MODEL
1997 MY
XK8 Range

VIN
001001-ON

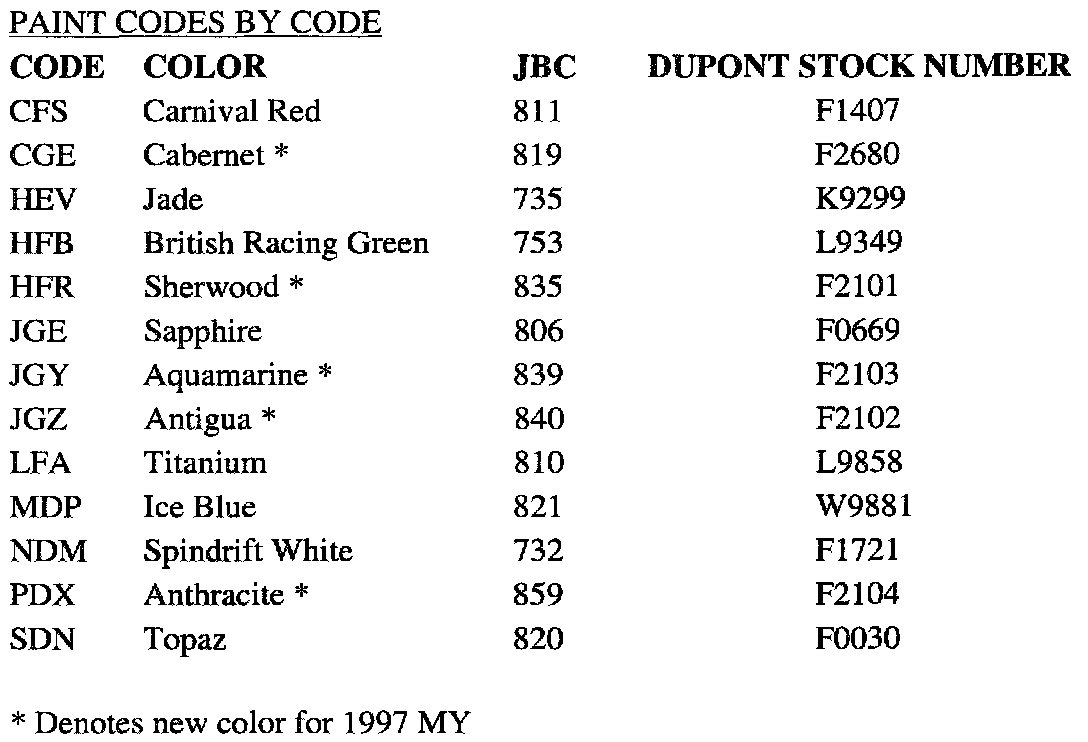

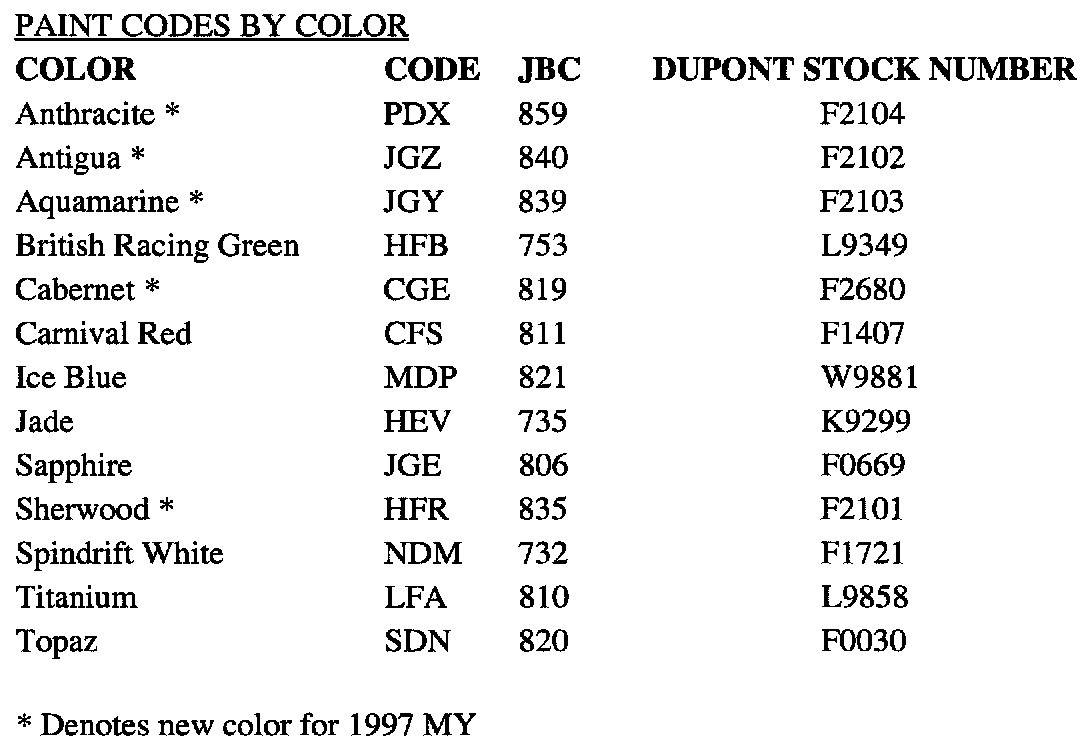

Paint Codes - 1997 MY

Issue:








The paint codes shown apply to 1997 model year vehicles.
