Removal

CAUTION: If as a result of accidental impact, a powered fold-back mirror is moved "out of position", it must only be re-positioned by initiating the fold-back sequence. No attempt must be made to manually return the mirror to the normal position. Failure to adopt this procedure will result in vibration of the unlocked mirror head and consequent loss or distortion of rear vision.




Removal
1. Remove exterior mirror glass.
1 Motor glass to fully outwards position.

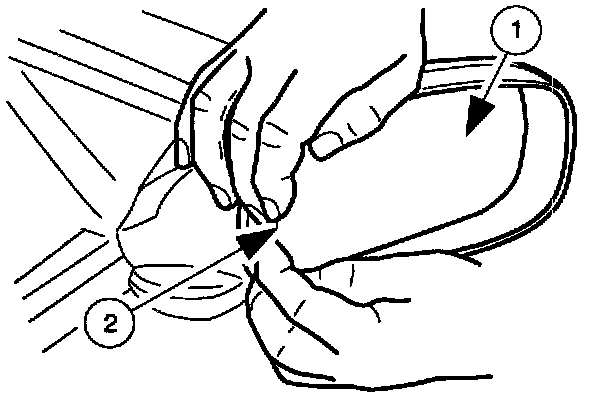

2 Pressing inner edge of glass outwards, ease outer extremity rearwards away from mirror housing.





2. Disconnect and remove mirror glass.

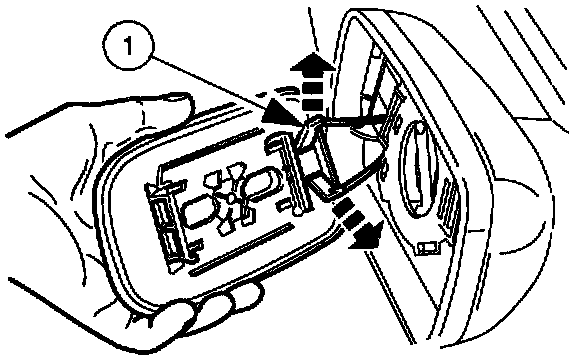

1 Ease glass clear of base, disconnect the two spade connectors and remove glass from mirror housing.





3. Remove exterior mirror cap.

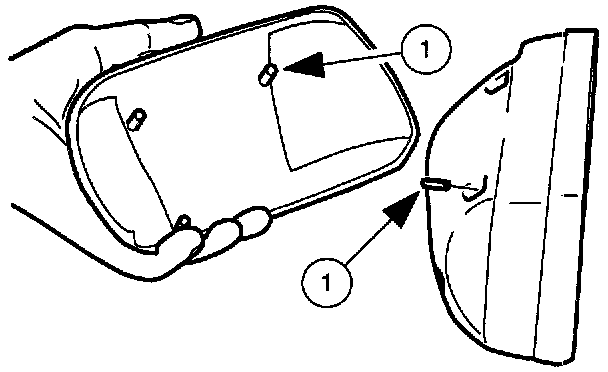

1 From housing interior, press out the three cap dowels complete with securing clips.
- Remove mirror cap from casing.
- Remove and discard the securing clips.
4. Fully open door glass.
5. Remove door frame cheater trim. (Tweeter on premium ICE models).
6. Remove door casing.





7. Remove mirror housing from door.

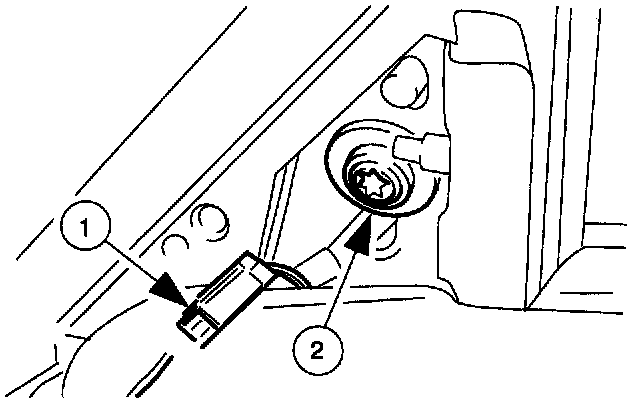

1 Disconnect mirror harness multiplug in door.
2 Supporting mirror, slacken and remove securing screw and remove mirror assembly from door.





8. Remove movement motor pack from housing.

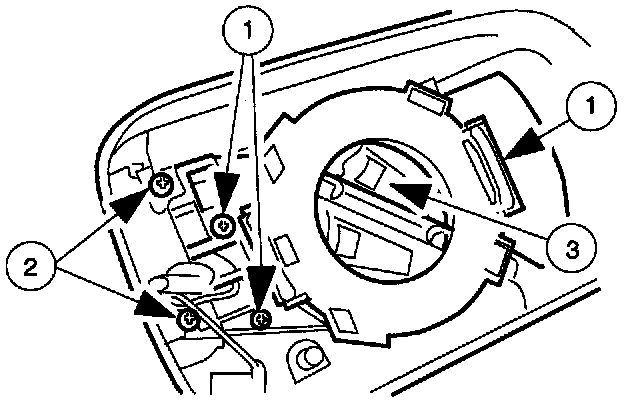

1 Slacken and remove the three self tapping screws securing motor pack to housing.
2 Slacken and remove two screws and nuts securing motor pack to fold back mounting.
3 Partially withdraw motor pack, disconnect multiplug and remove motor pack from mirror housing.
