Installation

Installation




9. Fit glass movement motor pack to housing.

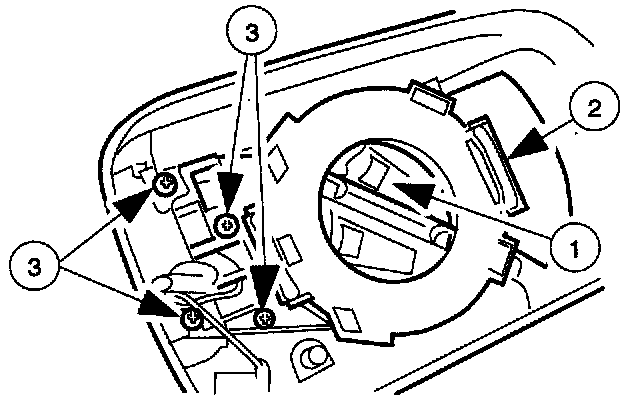

1 Position motor pack and connect multiplug.
2 Place motor in housing ensuring that harness is correctly routed and not trapped.
3 Fit and tighten the three self tapping screws and two screws and nuts securing motor pack to housing and fold back mounting.





10. Fit exterior mirror assembly to door.

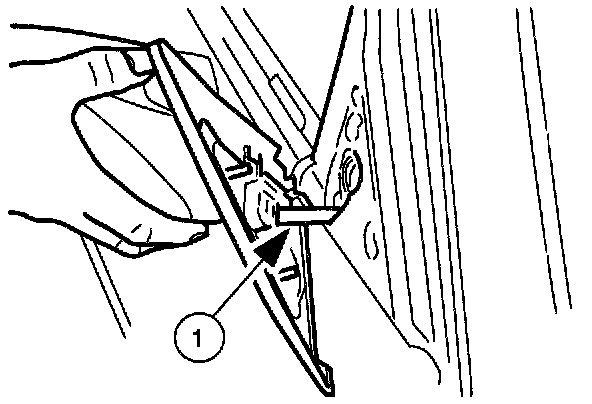

1 Pass harness and multiplug through cheater aperture and position mirror foot on cheater, locating the two dowels correctly and ensuring correct seating on seal.
- Fit and tighten the mirror assembly securing screw.
- Connect mirror assembly harness multiplug, position in door and reposition door foam.
11. Fit door frame cheater trim.
12. Fit door casing.
13. Close door glass.





14. Fit glass to mirror housing.
- Holding glass in position, connect the two spade connectors.

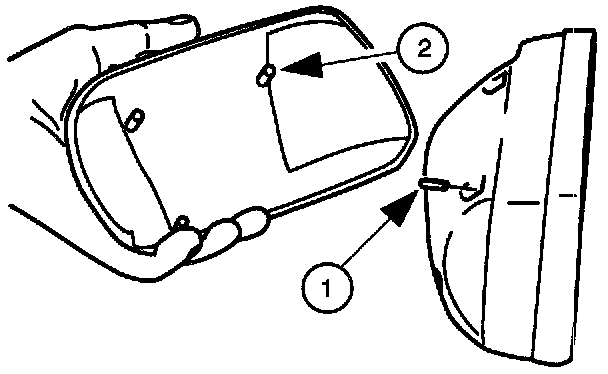

- Engage the mirror inner retainer on the motor lug and press the mirror outer edge forward to engage the outer retainer.





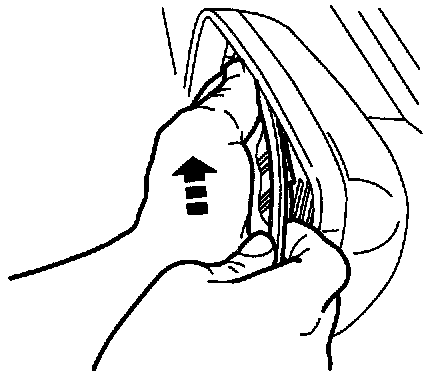

15. Fit cap to mirror housing.
1 Fit and fully seat three new cap securing clips to mirror base.
2 Align mirror cap dowels with the securing clips and press firmly into place.
