Interior and Exterior Mirrors: Fold-Back Mirrors

�|H ~�H �H ��H ��H Mirror Electrochromic Tint; Fold-back Mirrors:

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

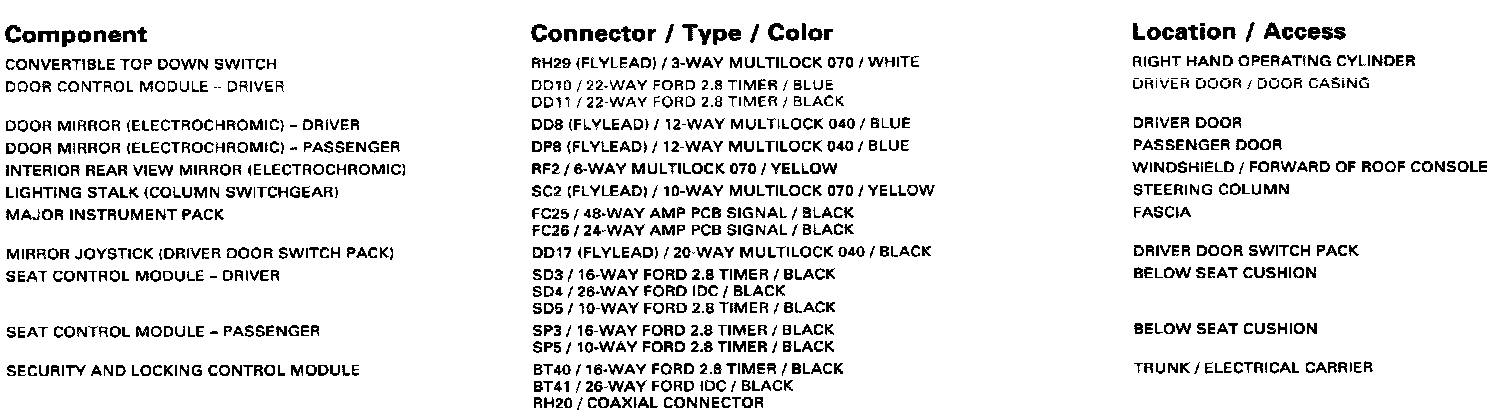

Mirror Electrochromic Tint; Fold-Back Mirrors: Components:

Components Informations

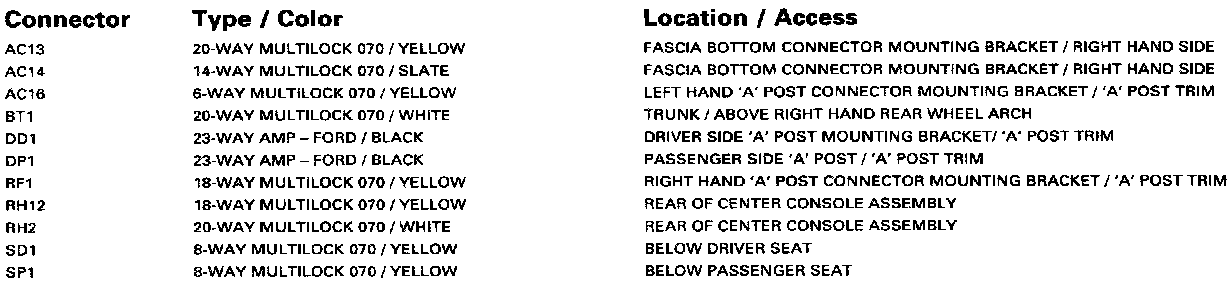

Mirror Electrochromic Tint; Fold-Back Mirrors: Harness-To-Harness Connectors:

Harness-To-Harness Connector Informations

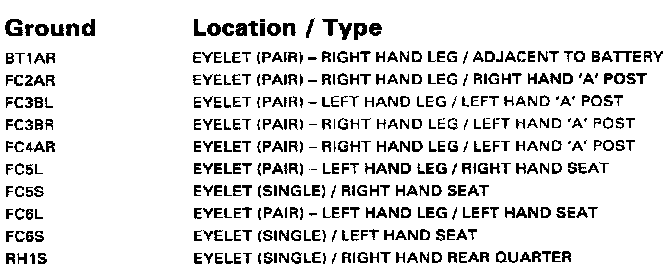

Mirror Electrochromic Tint; Fold-Back Mirrors: Grounds:

Grounds Informations

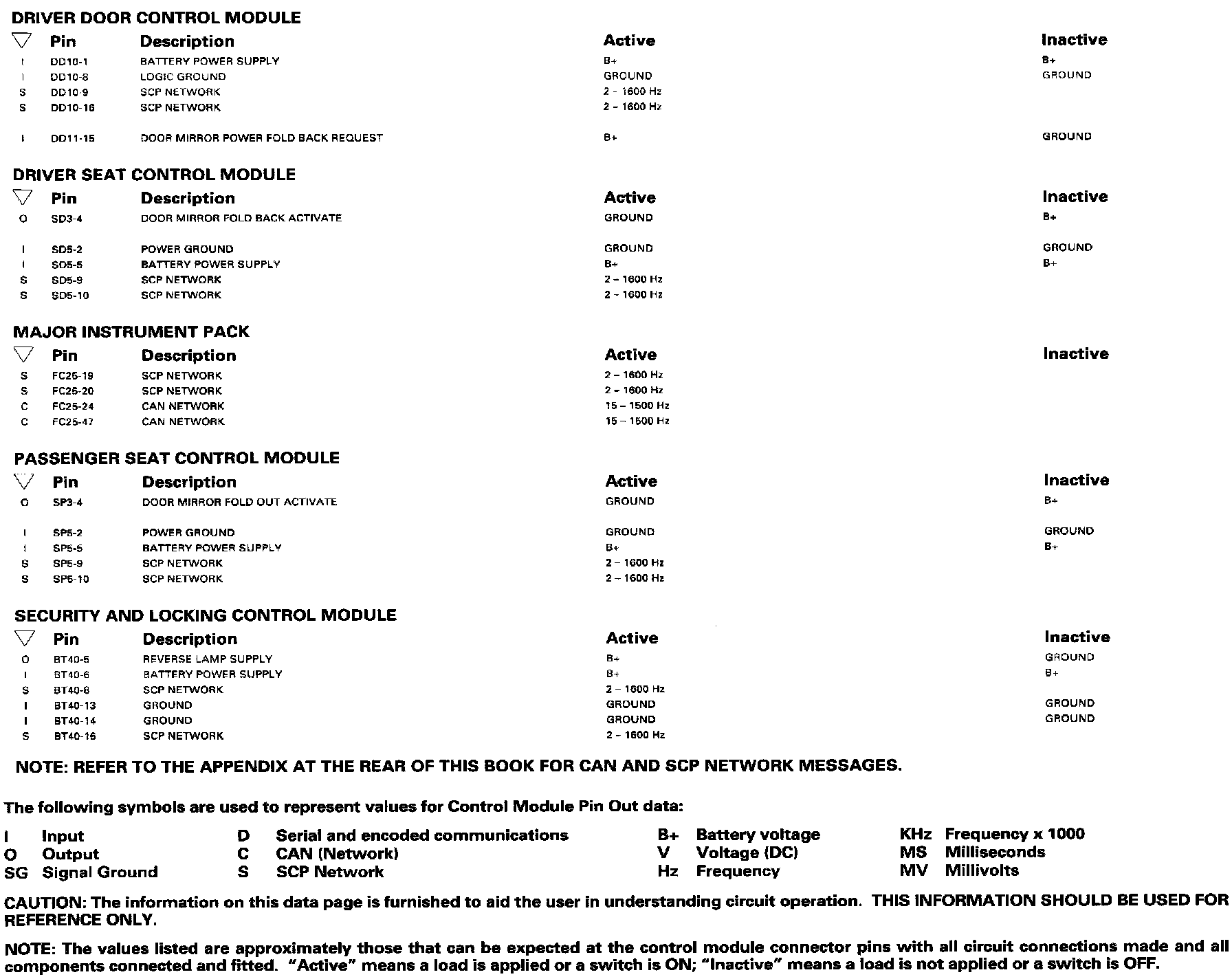

Mirror Electrochromic Tint; Fold-Back Mirrors: Control Module Pin Out Information:

Control Module Pin Out Informations
