Electrical Diagrams

/V� z���Ƶ���Central Door Locking:

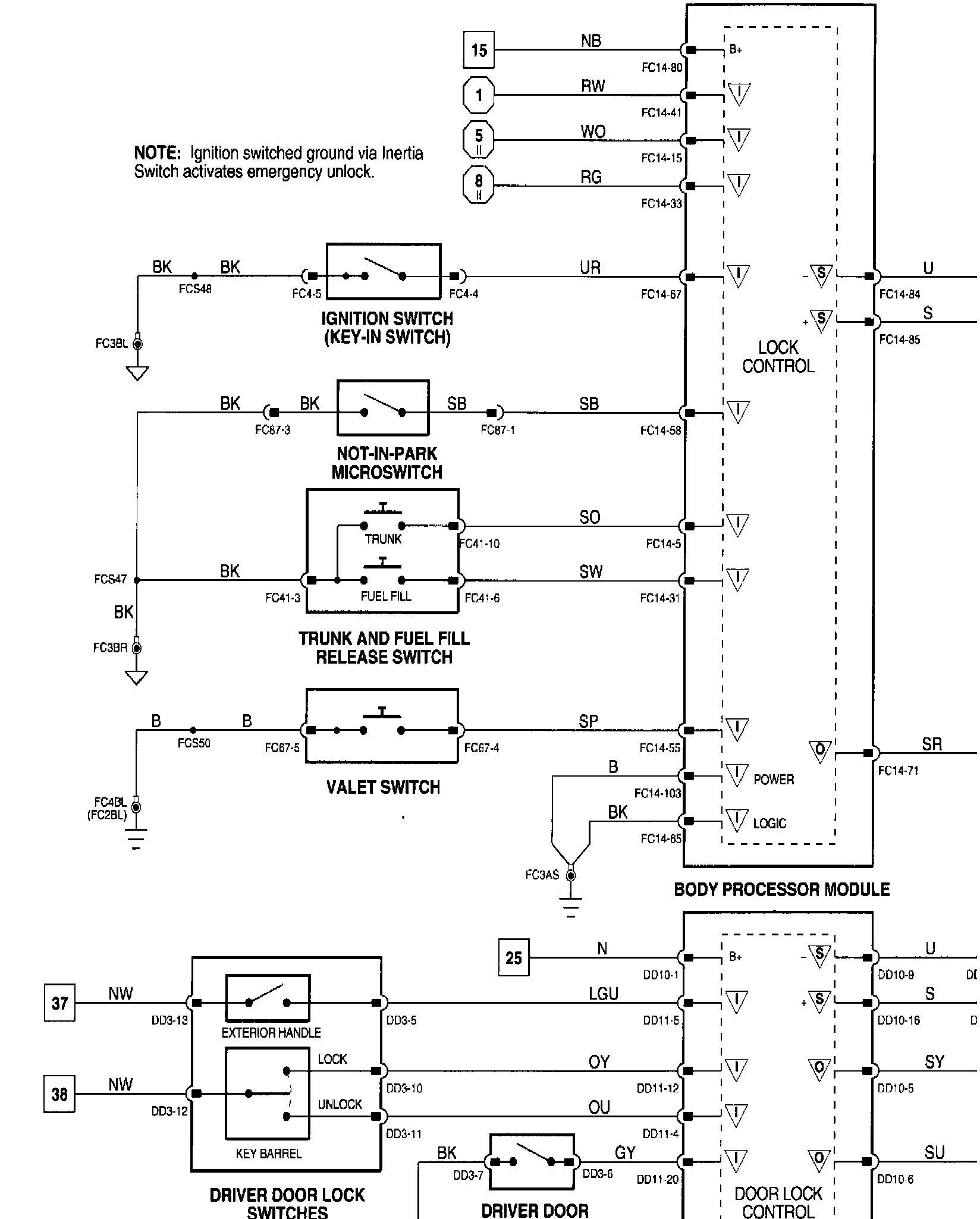

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

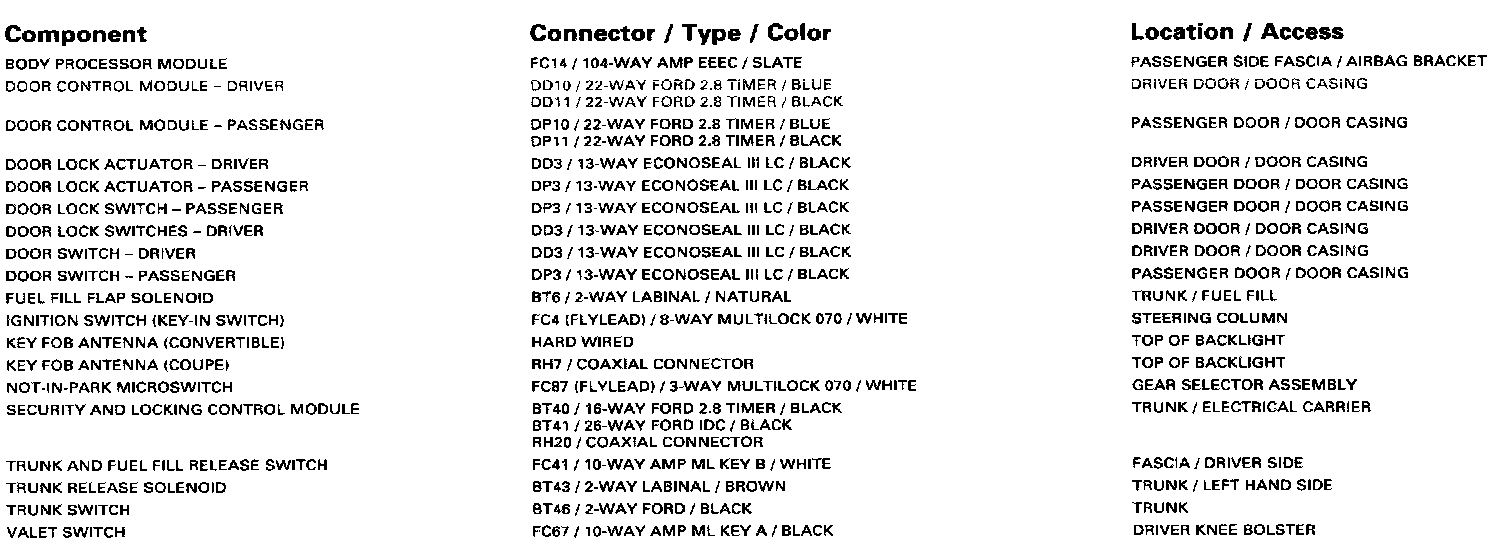

Central Door Locking: Components:

Components Informations

Central Door Locking: Relays:

Relays Informations

Central Door Locking: Harness-To-Harness Connectors:

Harness-To-Harness Connector Informations

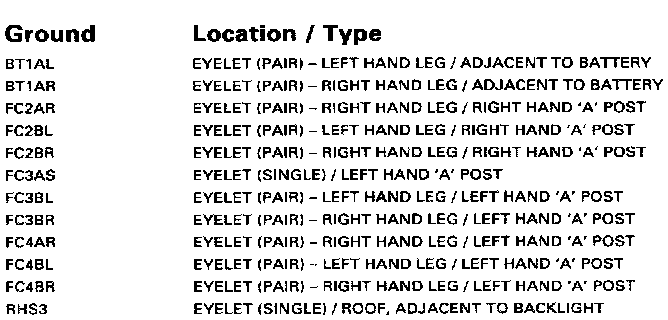

Central Door Locking: Grounds:

Grounds Informations

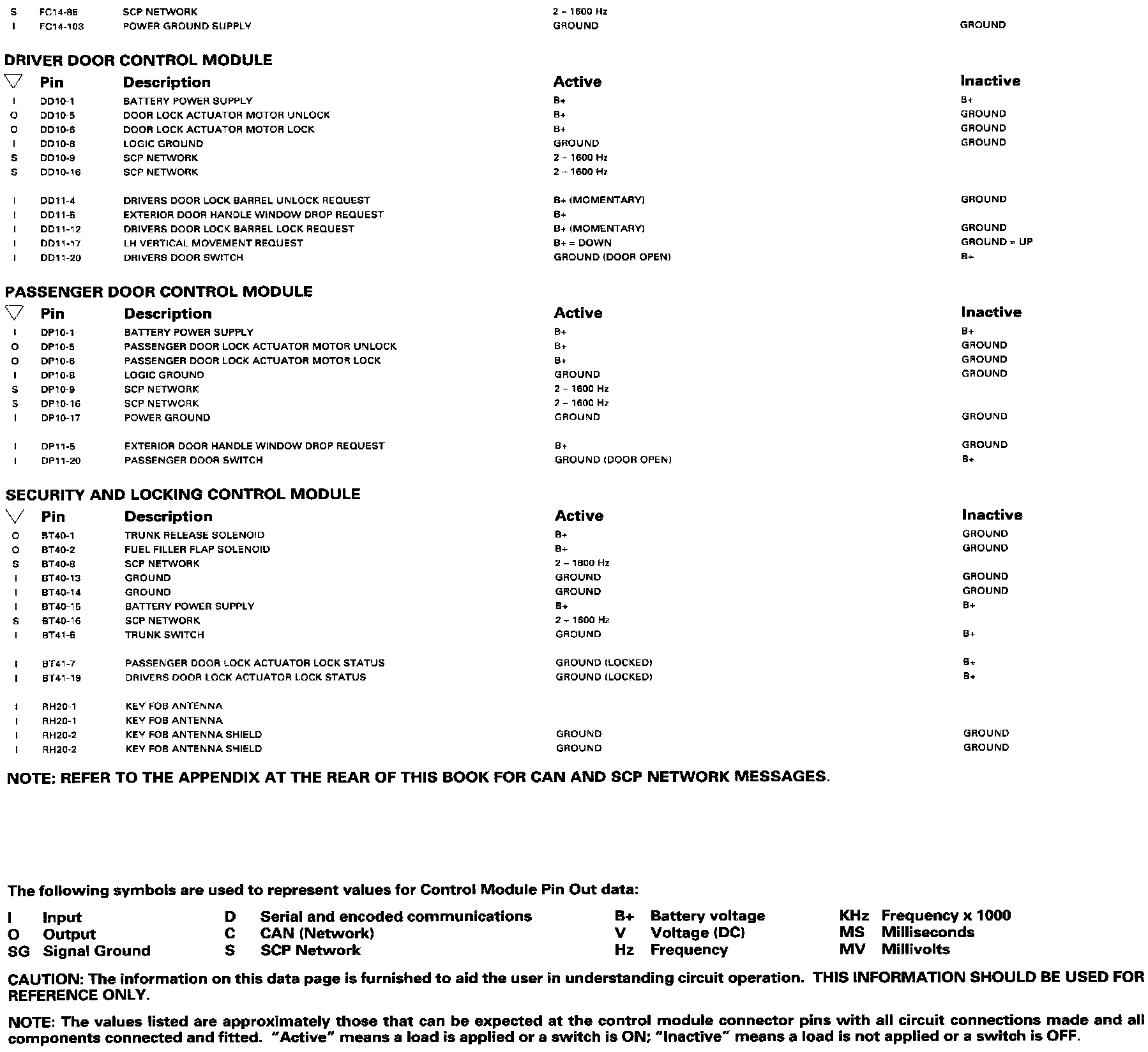

��Central Door Locking: Control Module Pin Out Information:

Control Module Pin Out Informations
