Center Console Switch Module Illumination Bulb

1. Remove battery cover and disconnect ground cable from battery terminal. Refer to 'Starting and Charging, Battery, Service and Repair.'

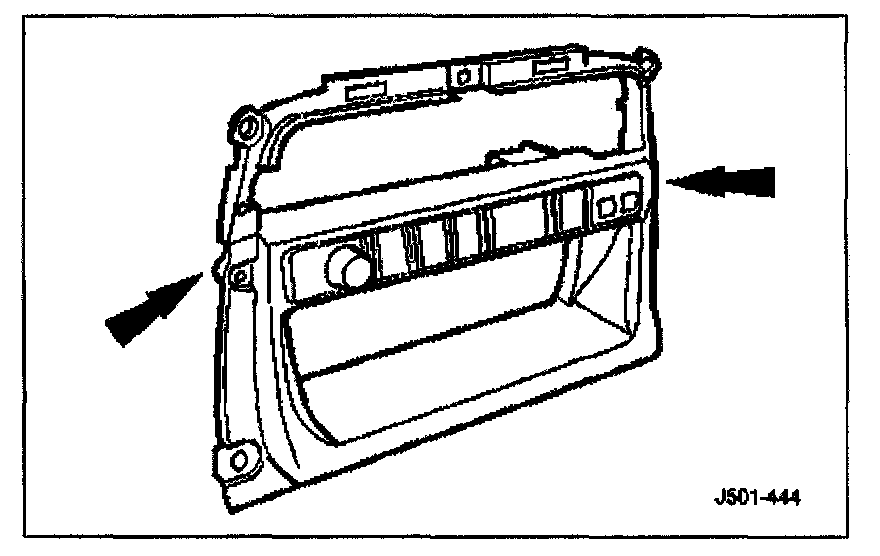

2. Remove 'J' gate surround. Center Console 'J' Gate Trim
3. Remove centre console for access.
4. Remove radio console for access.

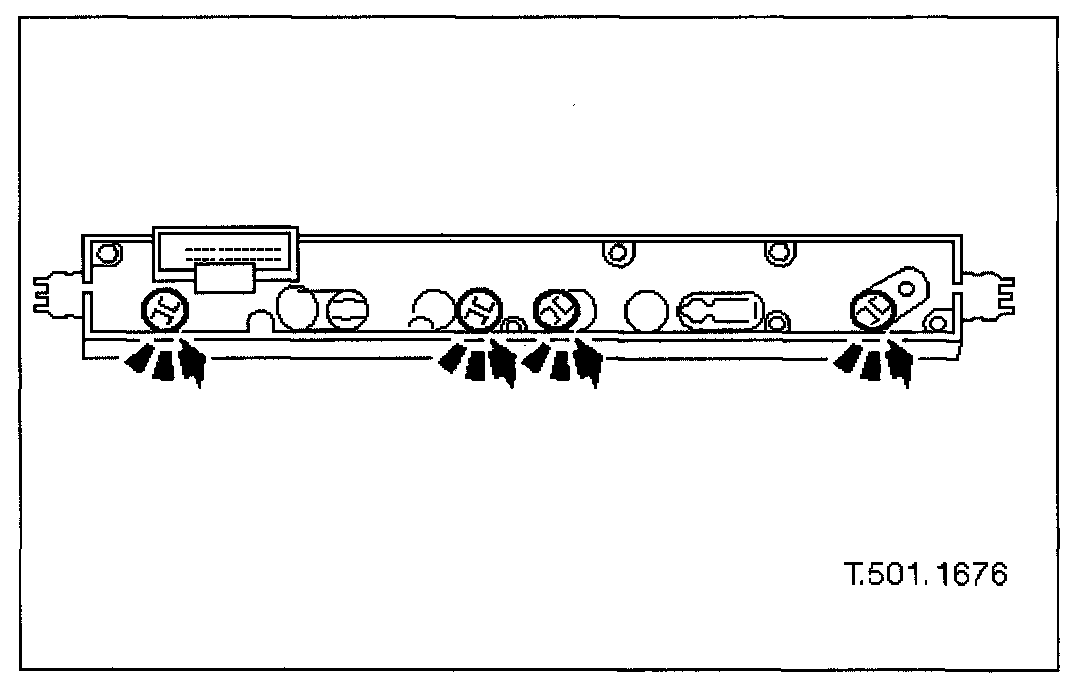

5. Disconnect switch module harness multiplug, release module end locators and lightly press module out of console.







6. Rotate bulb holder 1/4 turn counter-clockwise and remove from module.
7. Remove bulb from holder.

Installation
1. Install bulb in holder.
2. Install bulb and holder in module and rotate 1/4 turn clockwise to fully seat.
3. Install switch module in console ensuring that end locators are fully seated.
4. Connect switch module harness multiplug.
5. Install radio console.
6. Install centre console.
7. Install 'J' gate surround. Center Console 'J' Gate Trim
8. Connect ground cable to battery terminal and install battery cover. Refer to 'Starting and Charging, Battery, Service and Repair.'
