Air Conditioning Switch Control Module

Removal
1. Remove battery cover and disconnect ground cable from battery terminal. Service and Repair

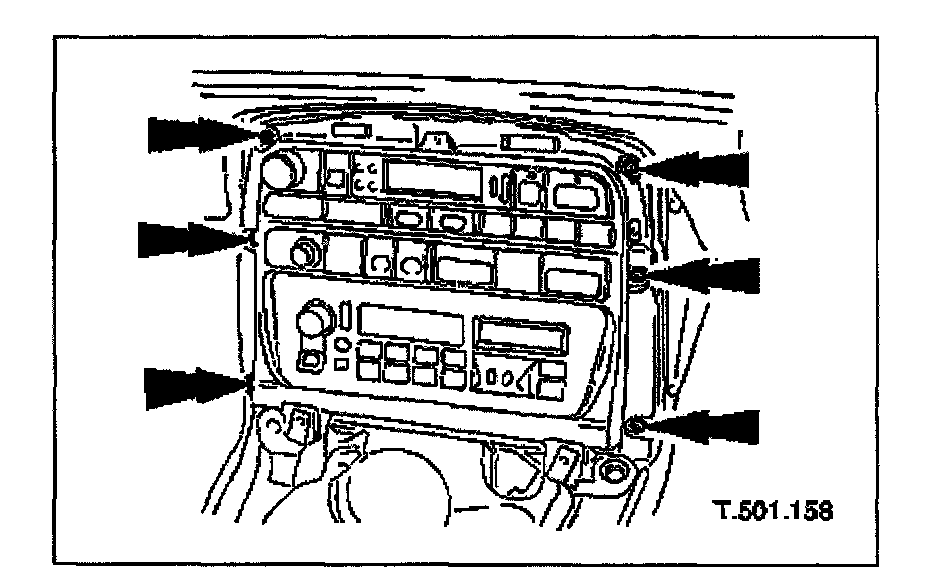

2. Remove 'J' gate surround.
3. Remove centre console. Service and Repair





4. Remove radio console securing screws and position console for access.





5. Disconnect air conditioning control module harness multiplug and cut and remove securing tiestrap.





6. Remove remaining switch control module central securing screw and withdraw module from vehicle.


Installation
1. Position air conditioning switch control module on radio console and install module securing screws.
2. Connect switch control module harness multiplug.
3. Install new harness securing tiestrap.
4. Position radio and install console securing screws.
5. Install centre console.
6. Install 'J' gate surround.
7. Connect ground cable to battery terminal and install battery cover. Service and Repair
