Front Fender Liner: Service and Repair

Removal
1. Remove front wheel and tire assembly.

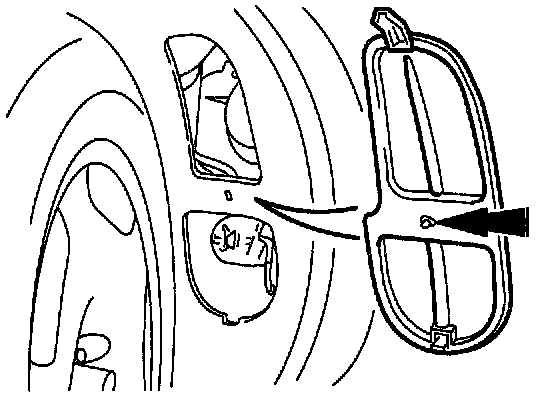

2. Remove wheel arch liner access cover.
- Rotate access cover fastener 1/4 turn and remove cover from vehicle.

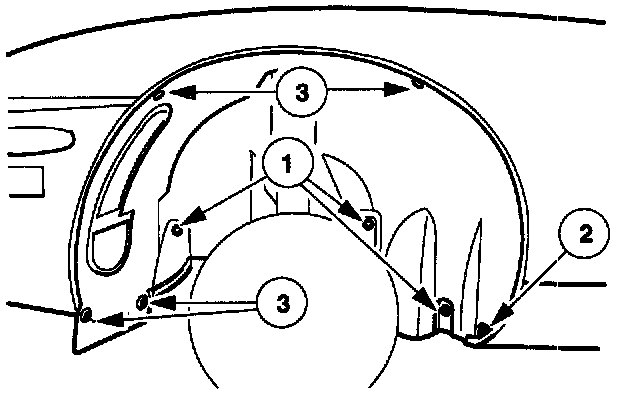

3. Remove wheel arch liner.
1 Slacken and remove three plastic nuts longitudinally securing wheel arch liner to body.
2 Slacken and remove screw securing liner to front of sill.
3 Remove expander pegs or screws from four liner retainers, remove and discard retainers and remove liner from vehicle.

Installation
4. Fit front wheel arch liner.
- Position and seat wheel arch liner.
- Fit the four new wheel arch liner retainers.
- Drive expander pegs into the liner retainers.
- Fit and tighten screw securing liner to front of sill.
- Fit and tighten plastic liner securing nuts.
- Position and secure liner access cover, rotating fastener 1/4 turn.
5 Fit wheel and tire assembly.
