Trunk / Liftgate Weatherstrip: Service and Repair

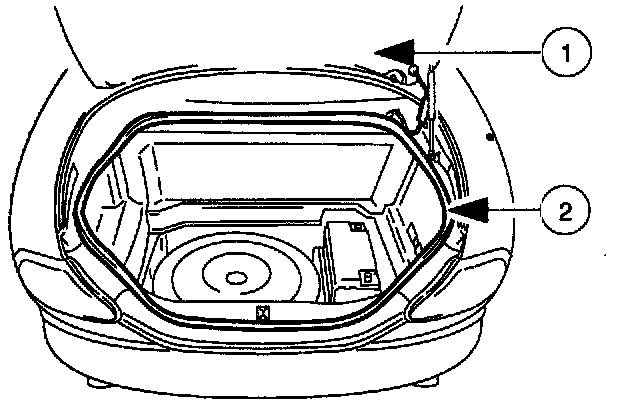

Removal




1. Remove trunk lid seal.
1 Open trunk lid.
2 Starting at front of trunk aperture, withdraw seal from flange exercising care on reaching bonded joint at rear.

Installation

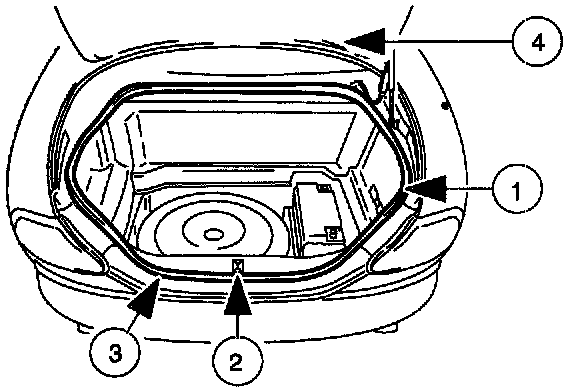

2. Fit trunk lid seal.
1 Ensure that trunk flange is clean and free from oil or grease.
2 Position seal with bonded joint adjacent to trunk latch.
3 Commencing at bonded joint, fit and fully seat seal onto trunk flange, guiding it between rear trunk trim and rear panel.
4 Check that trunk lid closes correctly.
