A6: Check Fuel Pump Drawn Current

NOTE: With EM013 disconnected this test will cause the pump to operate continuously. Do not exceed 10 sec running

NOTE: Do not replace relay

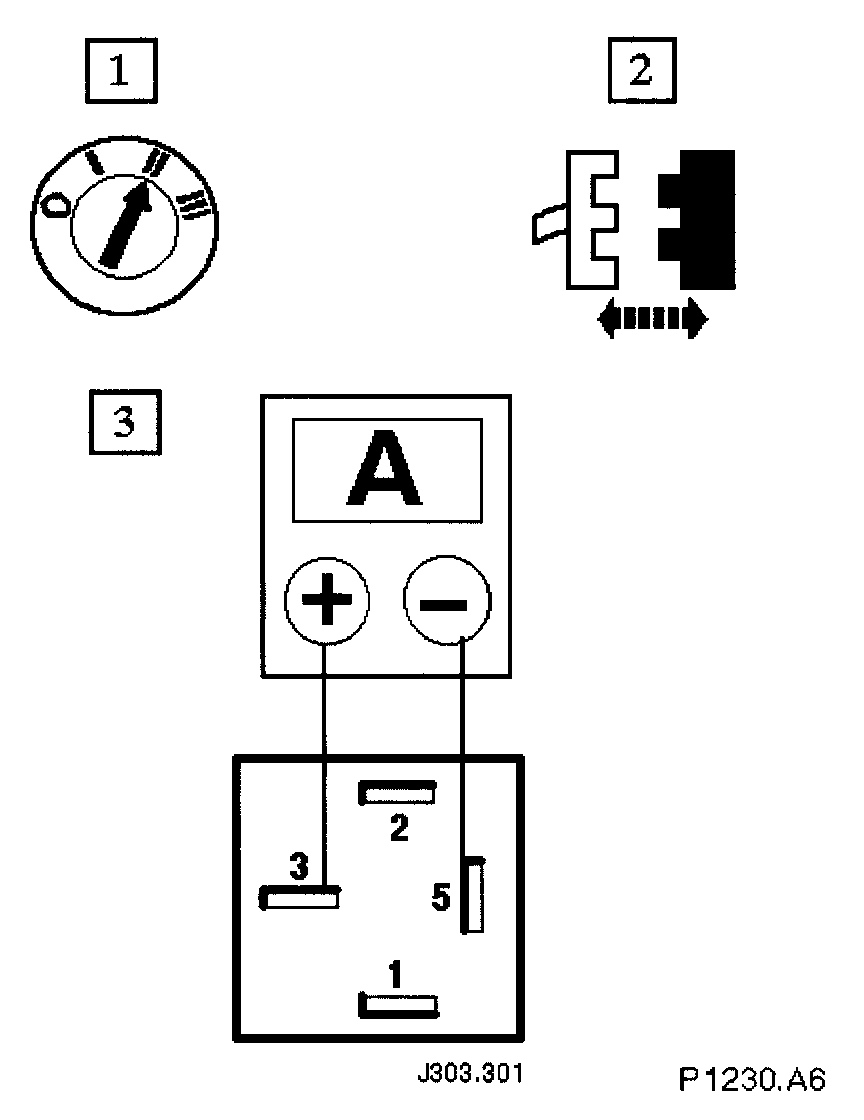

EWith the ignition energized, measure the current drawn between relay socket pins 3 & 5

Is the current between 2.5 & 9 A?

Yes
Go to A7

No
Go to A10
