D1: Check For Short to B+

NOTE: This procedure directly follows on from tests A7, B3, or C2

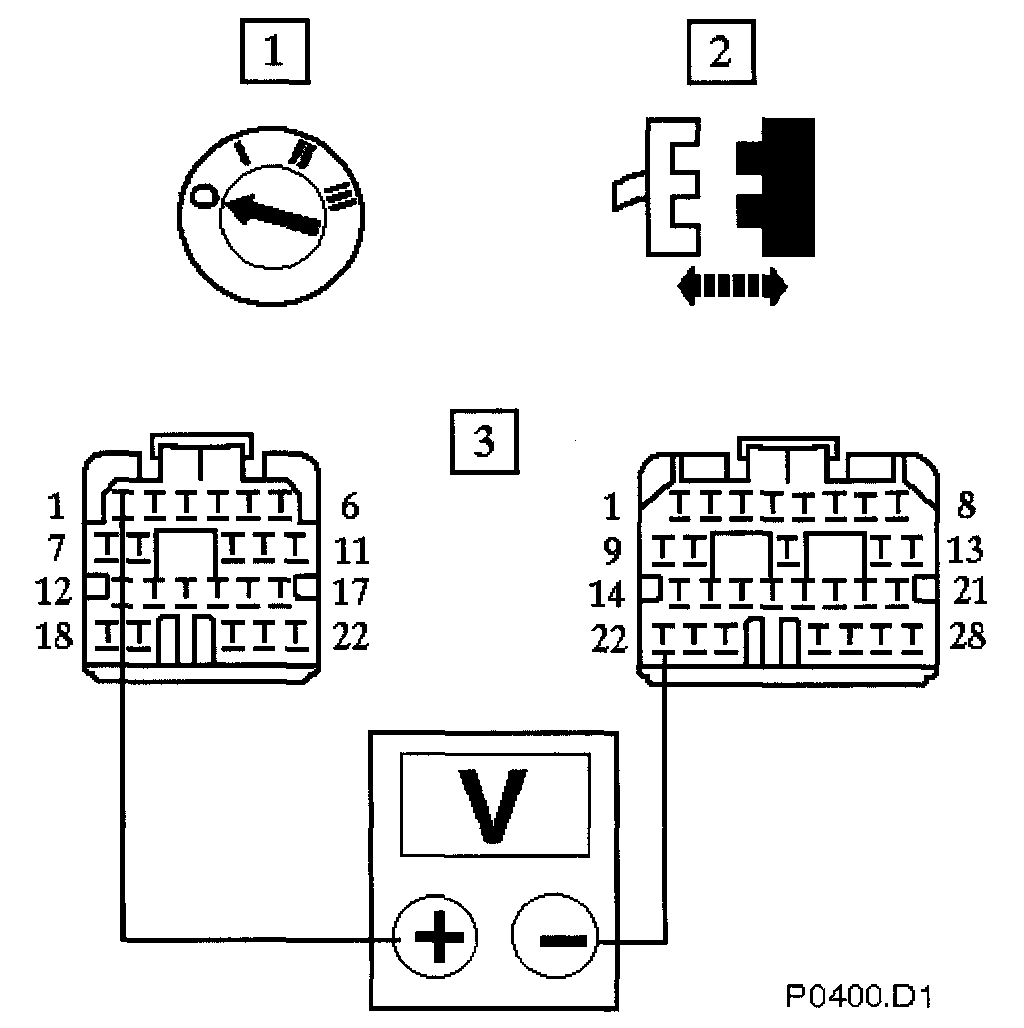

With connectors EM010, EM012 & PI034 disconnected measure the voltage between EM012/001 & ground EM010/022

Is the voltage 0 (zero) V?

Yes
Go to D2

No
Inspect EM010, EM012 & PI034 for bent/pushed back pins or locate & repair the harness/connector (PI001/008)
