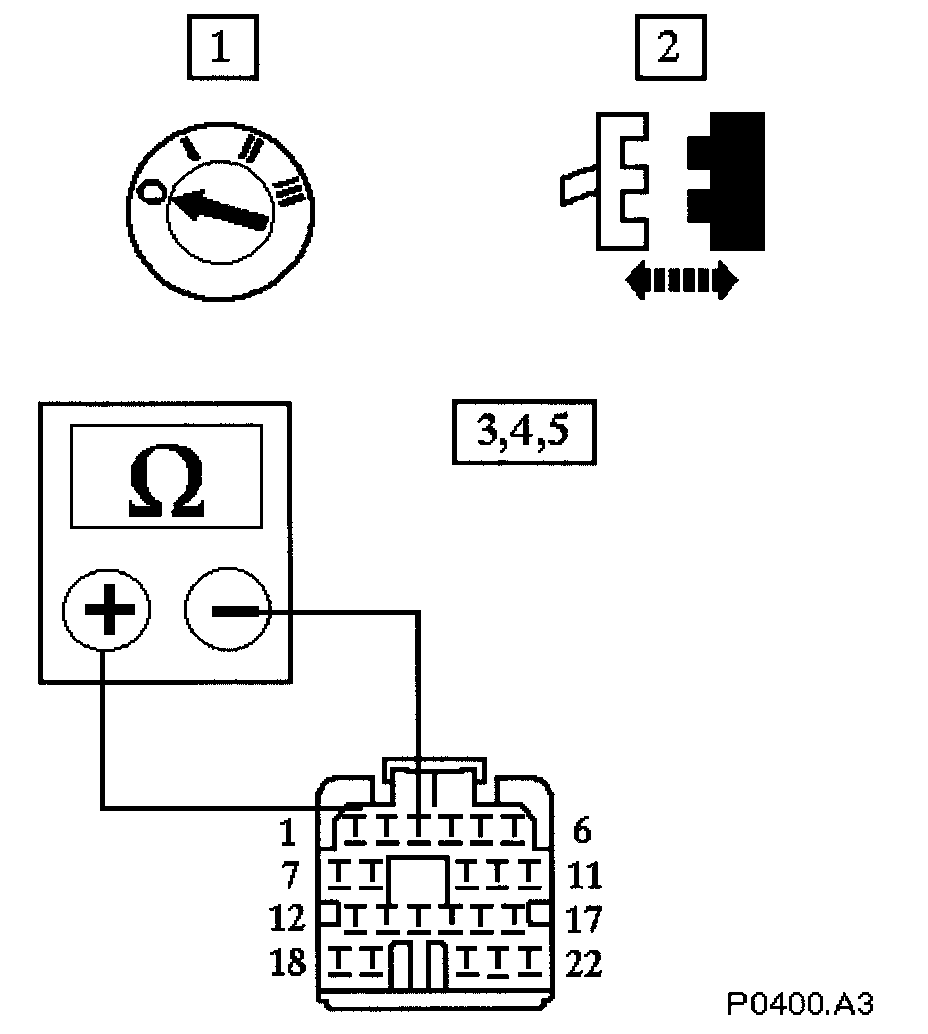

A3: Check Stepper Coil Open Circuit

With EM012 disconnected measure the resistance between the following pairs
EM012/001 & EM012/003
EM012/002 & EM012/004

Is the coil resistance > 80 ohms?

Yes
Go to A5

No
Go to A4
