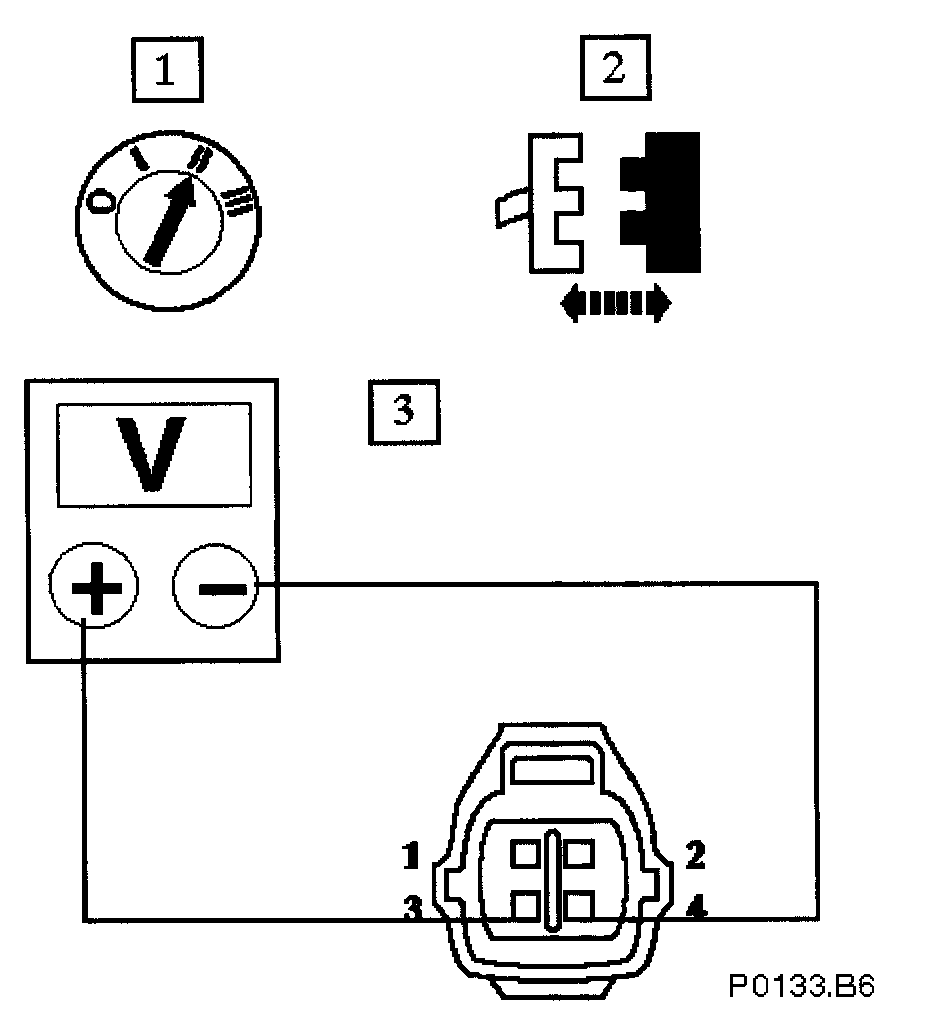

B6: Check For O2 Sensor Failure

With the conditions held as B5, suddenly accelerate to approximately 2500 rpm

Has the voltage risen to between 600mV & 1 volt?

Yes
Go to B7

No
Renew O2 sensor, reconnect plug(s)
Go to B8
