Curing

NOTE: The glass will not bond to the body if the time taken to apply the adhesive AND position the glass, exceeds the stated limit.

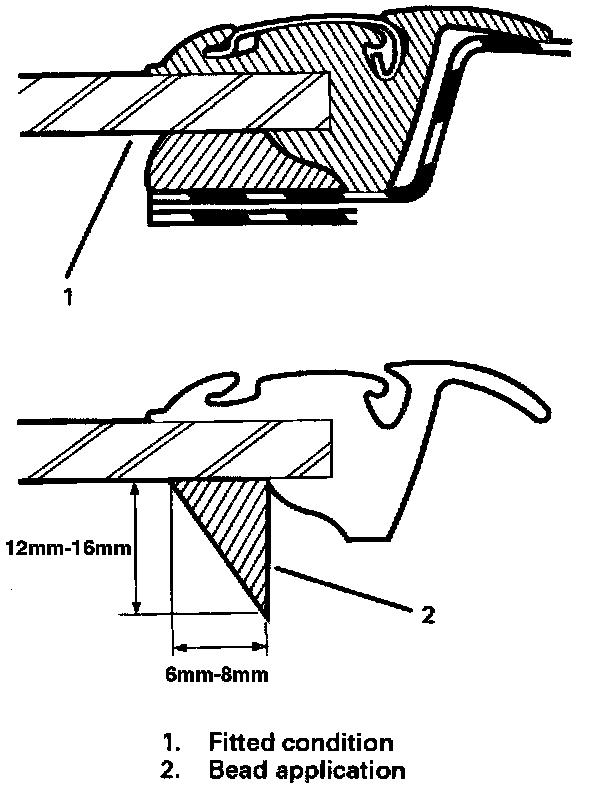

It is recommended that the bead of adhesive conforms to the shape and dimensions as shown in the Image and is positioned along the edge of the rubber.

NOTE: The depth of the glass and thus the thickness of the adhesive, is controlled by the screen rubber 'bottoming' on the body flange.

CURING:
The specified polyurethane adhesive cures by exposure to moisture and NOT by heat. Cure times may vary considerably and are dependant upon ambient humidity levels, however the initial 'chill off' will occur within 1 to 4 minutes, after which the screen may not be moved (this is entirely dependant upon the application temperature and rate of cooling).
