Speed Sensors Removal

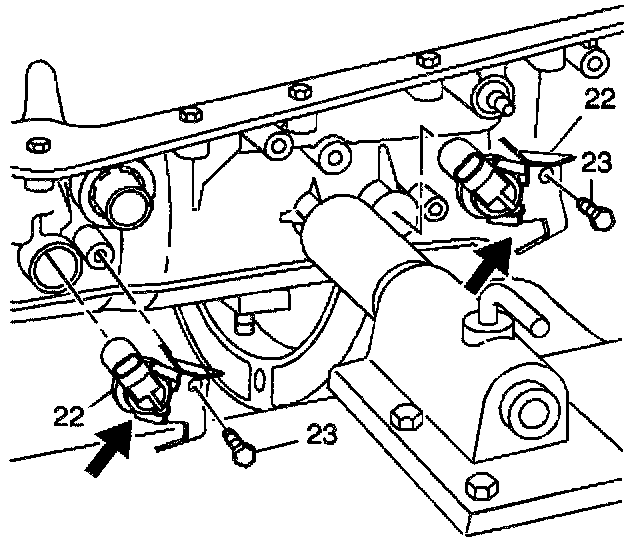

1.
Remove the input speed sensor bolt (23).
2.
Remove the input speed sensor (22).
3.
Remove the output speed sensor bolt (23).
4.
Remove the output speed sensor (22).
5.
Inspect the speed sensors for damage.
