Battery; Starter; Generator-Manual

W�YBattery; Starter; Generator-Manual:

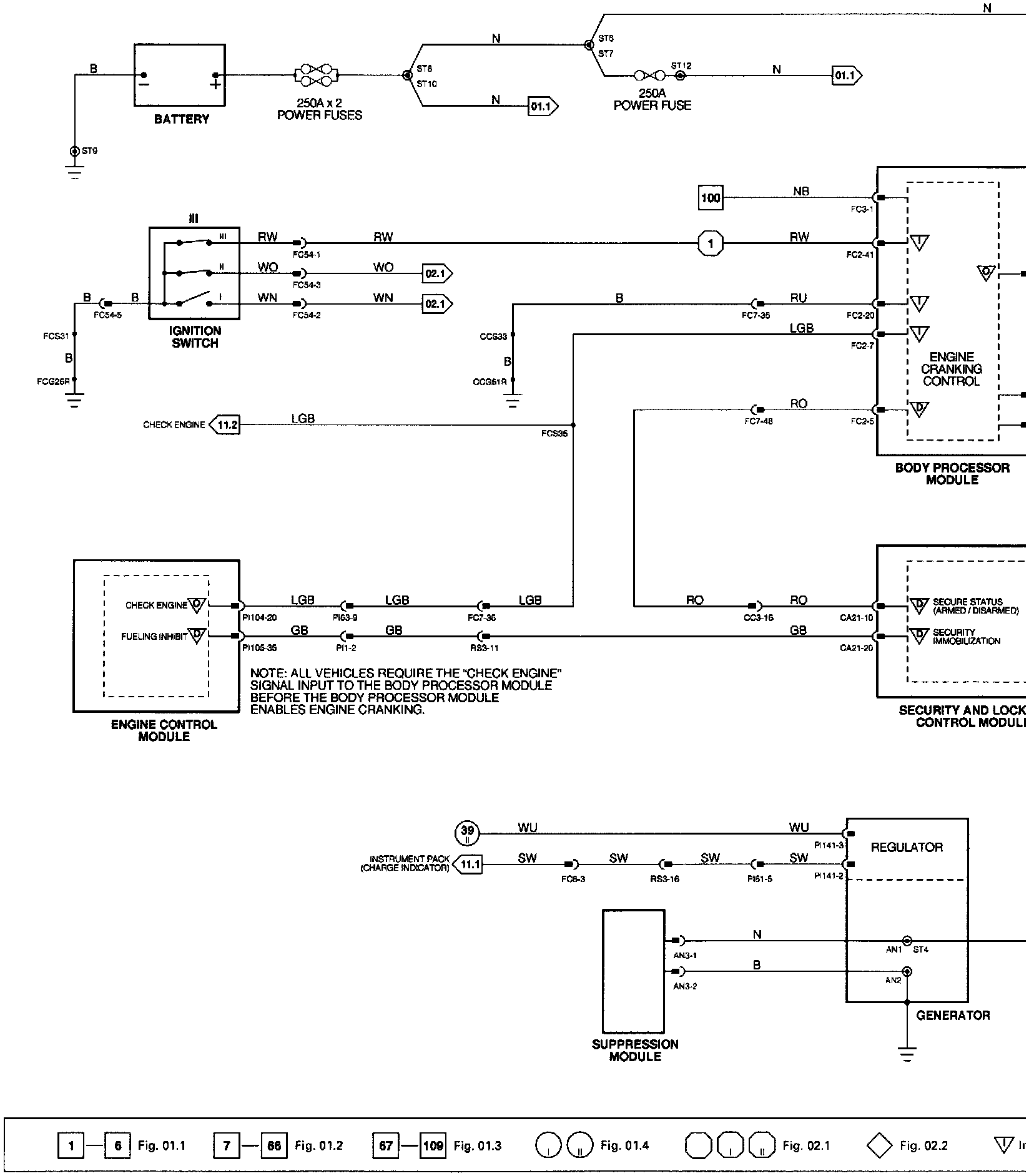

Wiring Diagram

Use the Hyperlink (VIEW) button to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

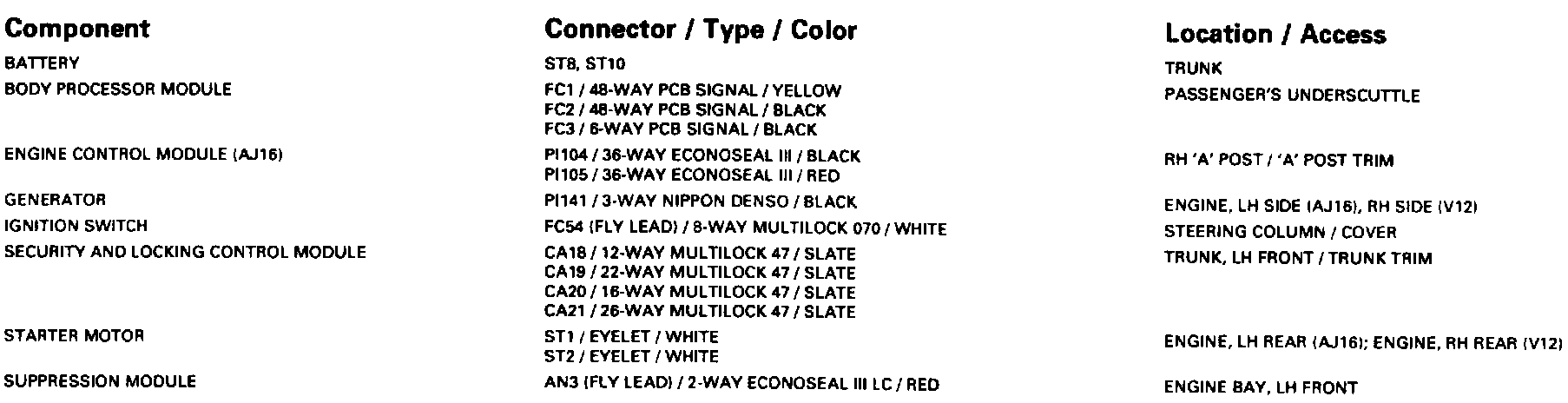

Battery; Starter; Generator-Manual: Components:

Component Information

Battery; Starter; Generator-Manual: Relays:

Relay Information

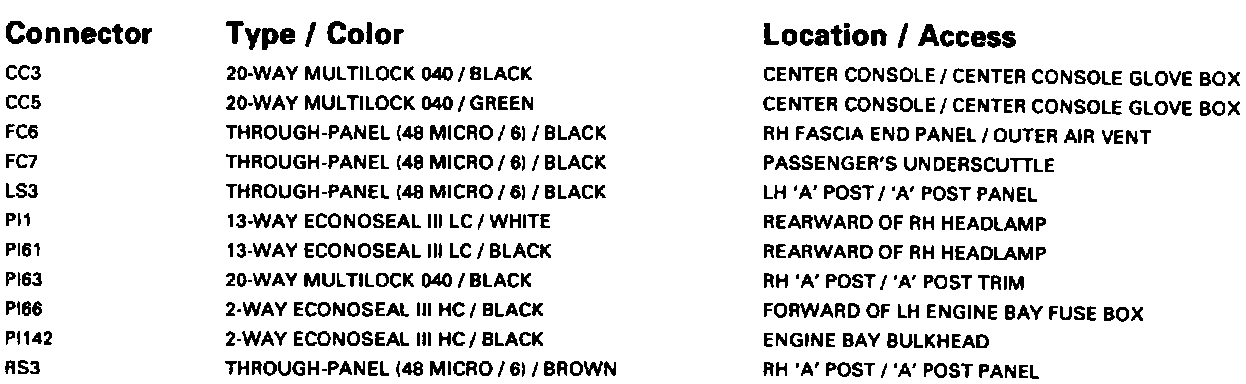

Battery; Starter; Generator-Manual: Harness-To-Harness Connectors:

Harness-To-Harness Connectors Informations

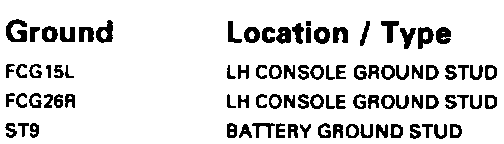

Battery; Starter; Generator-Manual: Grounds:

Ground Information

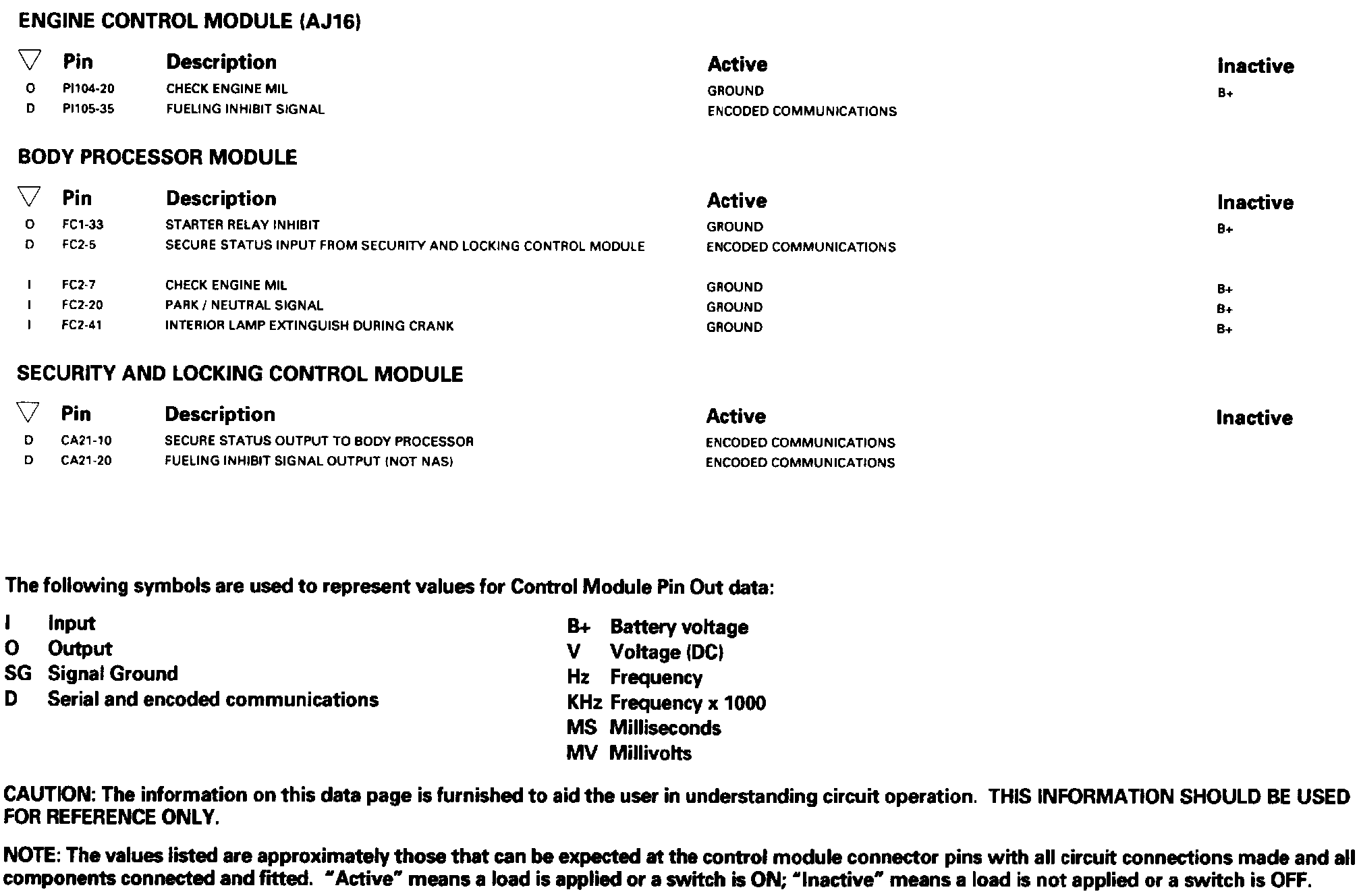

Battery; Starter; Generator-Manual: Control Module Pin Out Information:

Control Module Pin Out Informations
