Electrical - Manual Revisions

15-42

DATE
1/97

Sedan Range

MODEL
1995-96 MY
Sedan Range

VIN
720001-787953

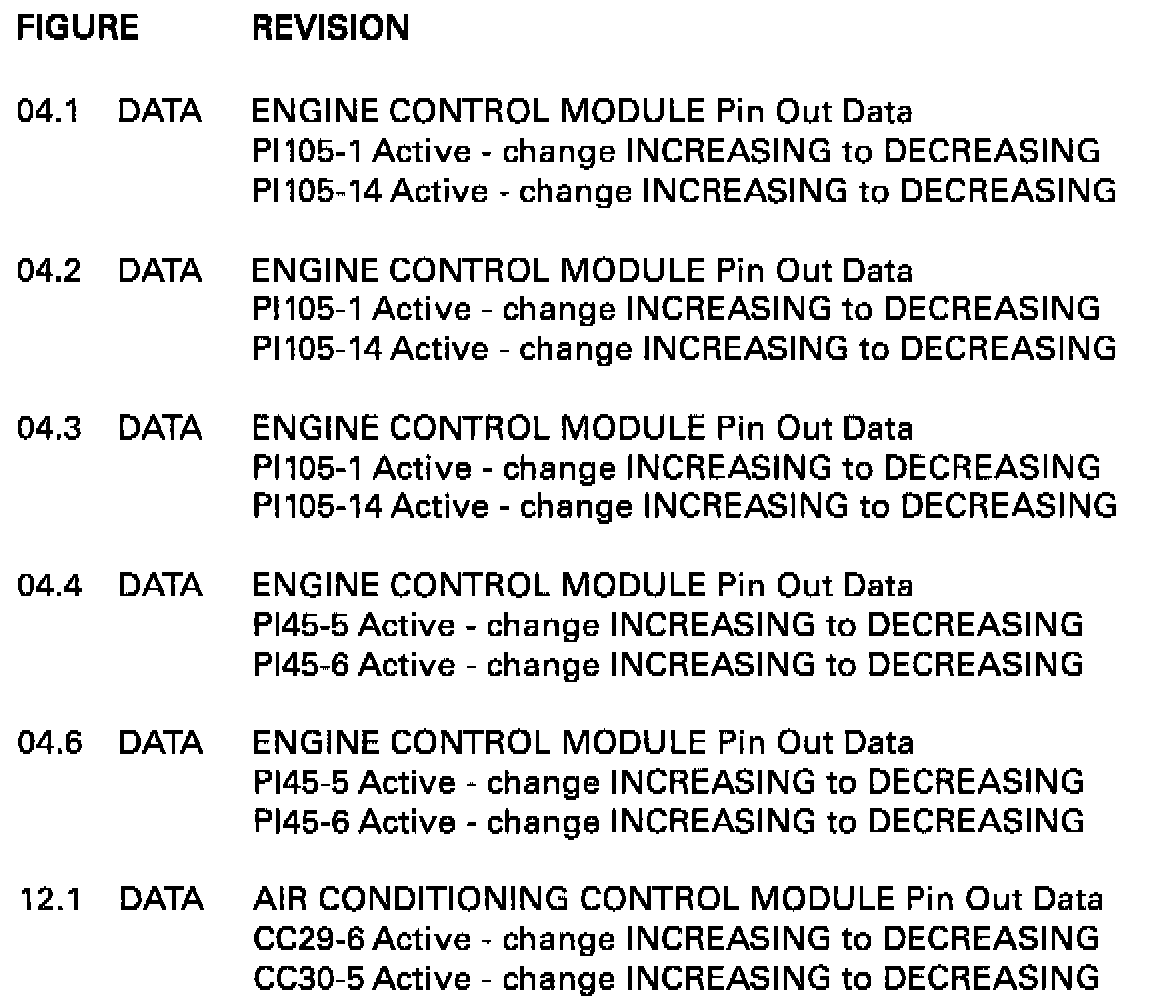

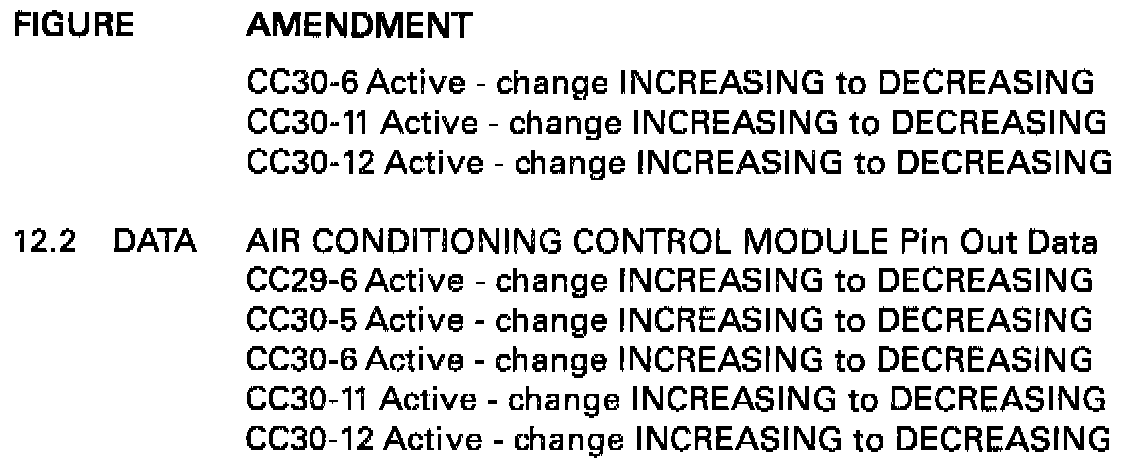

Electrical Guides - Revisions to 1995 and 1996 MY Editions

ISSUE:

A completely new Electrical Guide covering 1997 Model Year Sedan Range vehicles, from VIN 787954, will be issued shortly. It incorporates some information which also applies to the 1995 and 1996 MY Electrical Guides. Revision for the 1995 and 1996 Electrical Guides will not be issued.

ACTION:








Mark the revisions by hand to the 1995 and 1996 MY Electrical Guides.





In addition, mark the revisions in the 1996 version only, of the Electrical Guide for Sedan Range vehicles.
