Battery Power Distribution Cables, General Description & Layout

Battery Power Distribution Cables:

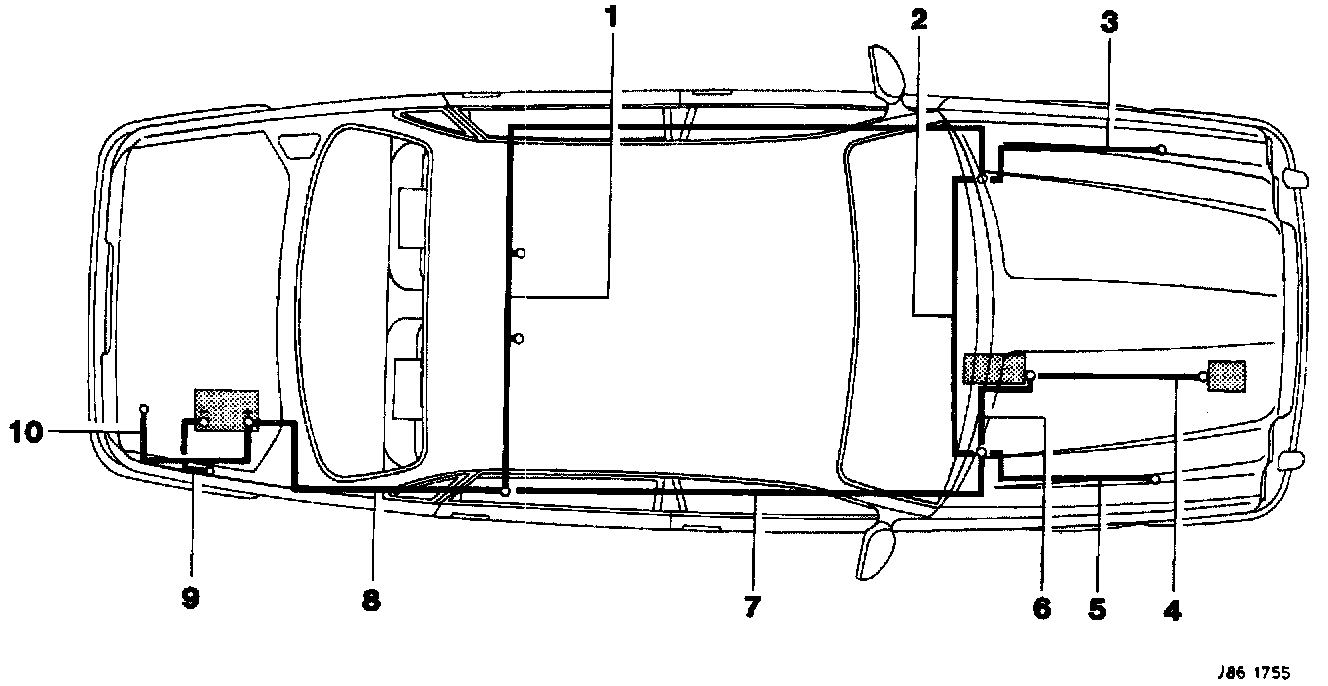

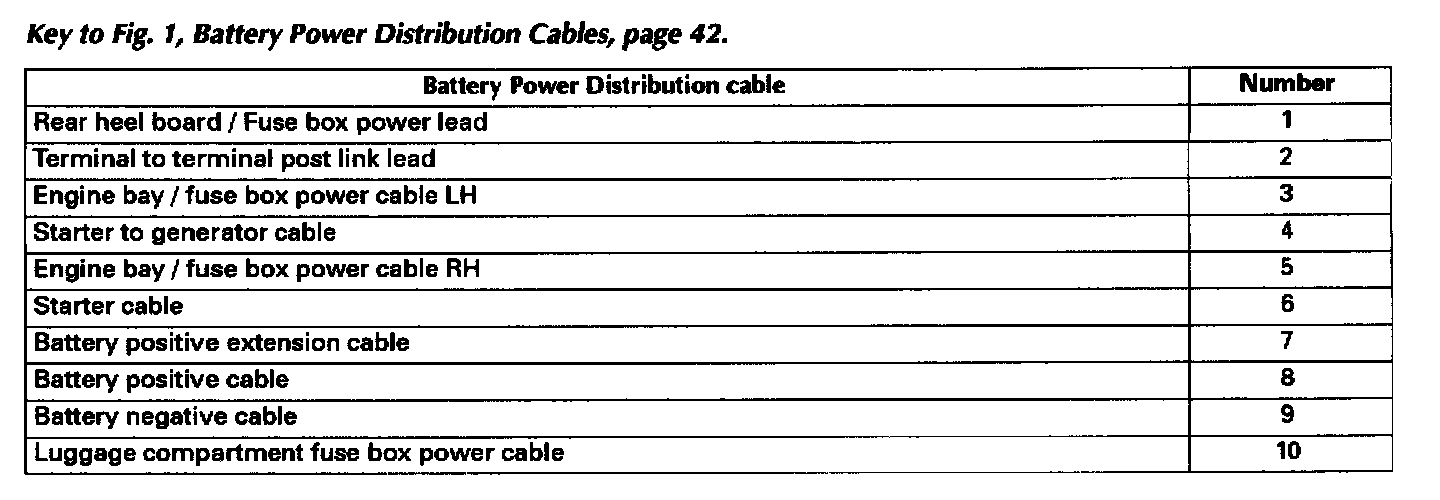

The figure above shows a plan view of the battery power distribution cables and their distribution points. This illustration is to be viewed in conjunction with the table on page 43.
Always disconnect the battery negative lead from the battery negative terminal before disconnecting any of the listed cables.
To expose all harness runs inside the passenger compartment in case of any damage to the wiring or to inaccessible harness connectors, all seats, interior trims and the one piece carpet are to be removed for access.
The harnesses inside the trunk can be accessed by removing all trunk liners.
For the injection and ignition harness removal steps. Service and Repair
