Connector Locations

Harness Connectors:

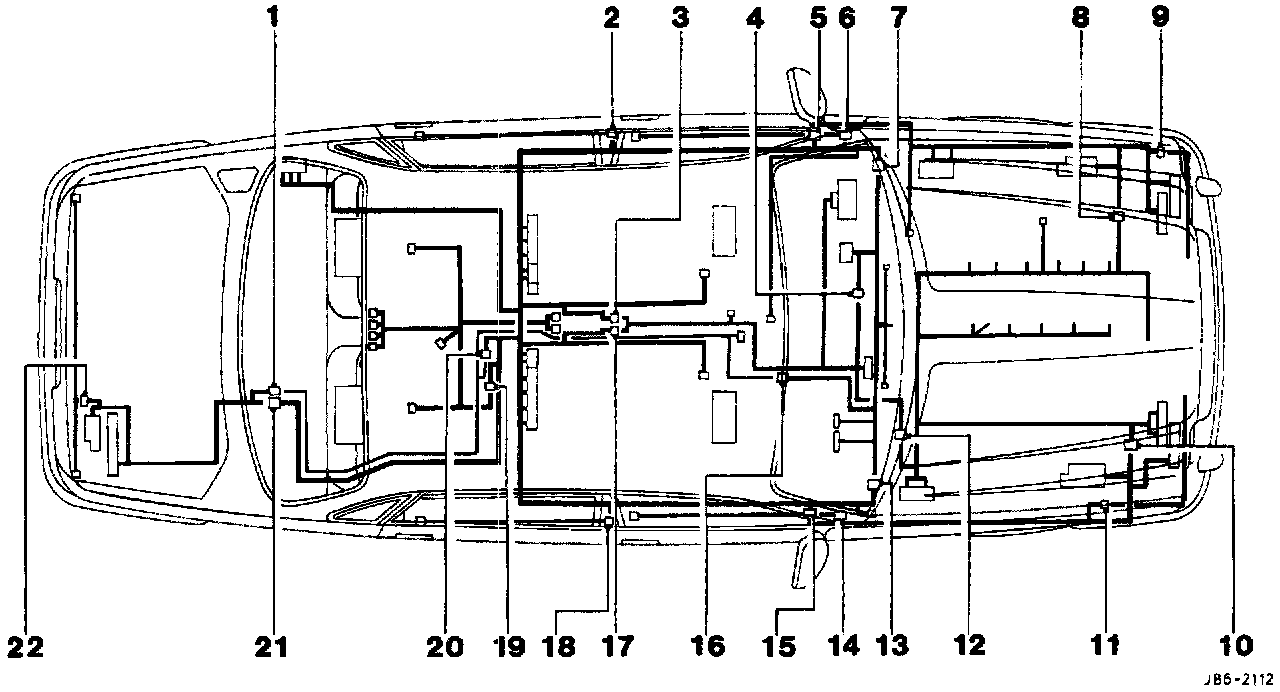

Fig. 1 shows a plan view of the harness connectors physically linking the all the harnesses located in the trunk, the passenger compartment and the engine bay.
The illustration is to be viewed in conjunction with the following table. Always disconnect the battery negative lead from the battery negative terminal before disconnecting any of the listed cables.

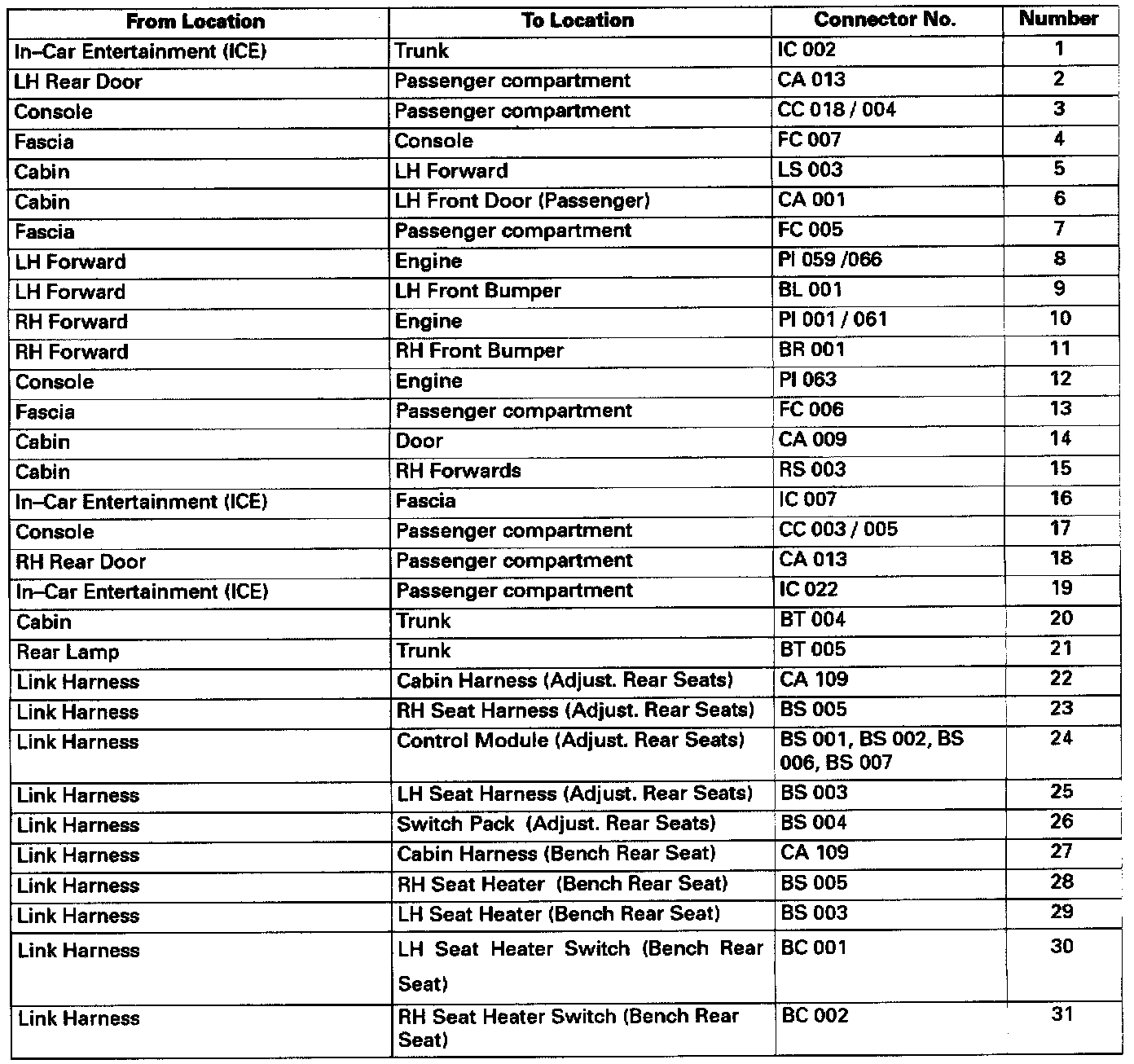

Key To Image,Harness Connectors:
