Component Locations

Motors And Solenoids Fig. 1:

General Description & Locations
Fig. 1 above shows a plan view of all motors located inside the trunk, the passenger compartment and the engine bay. The motors drive various devices to perform certain functions such wipe/wash operations, window lift operations, seat operations etc.
In order to carry out remove and refit operations, the annotated illustration is to be viewed in conjunction with the table below. This lists all the motors and solenoids.
Some motors can be accessed by removing the various trims, the carpet, or carpet sections, other can be located through carrying out a visual inspection around the engine bay, the passenger compartment and the trunk.
Always disconnect the battery negative lead from the battery negative terminal before removing any of the motors.

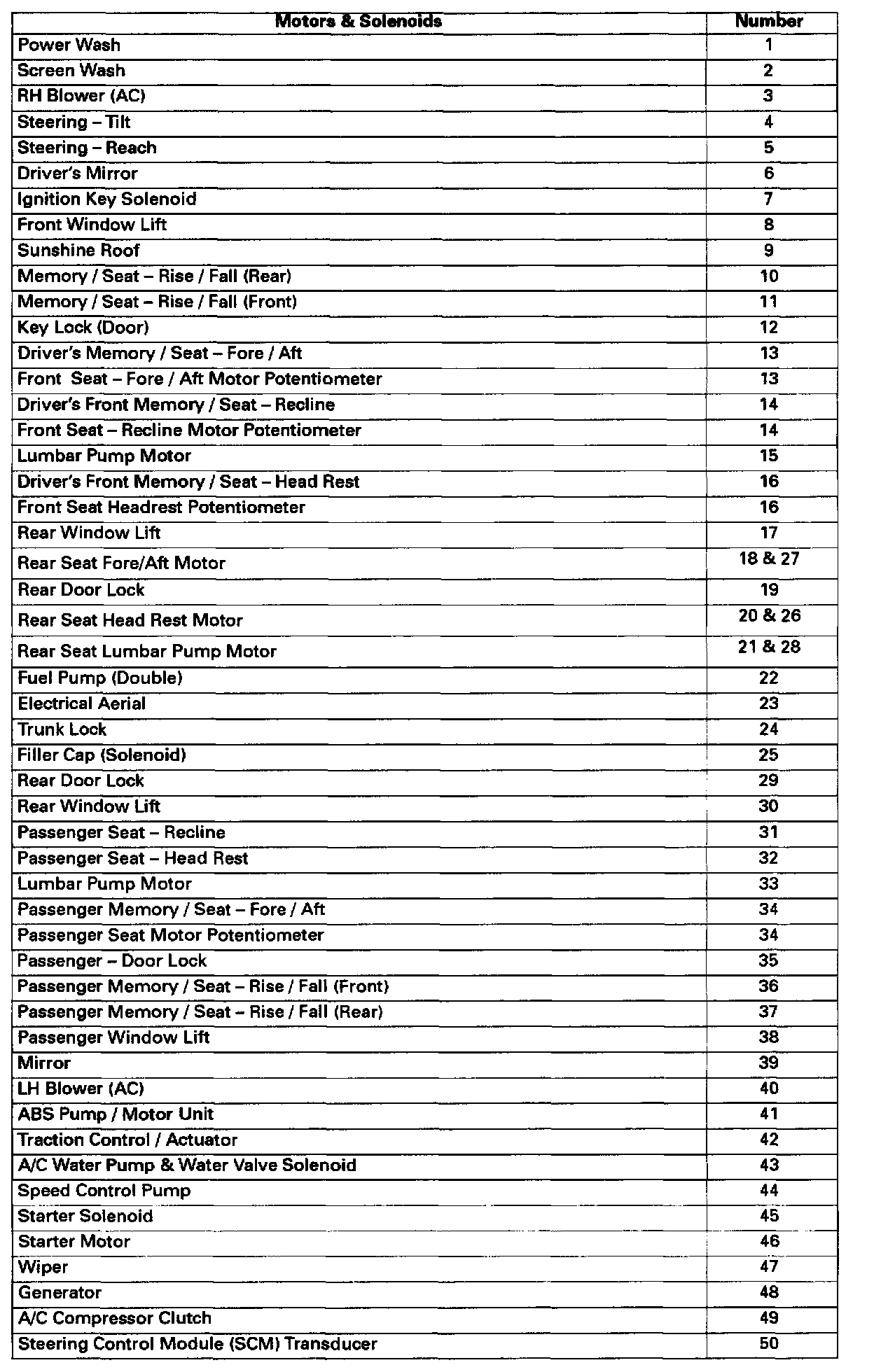

Table To Fig. 1:
