Fuse: Application and ID

The following tables list all the fuses used in the vehicle; they include fuse box locations, fuse values (amps) and the principal circuits supplied by each fuse.

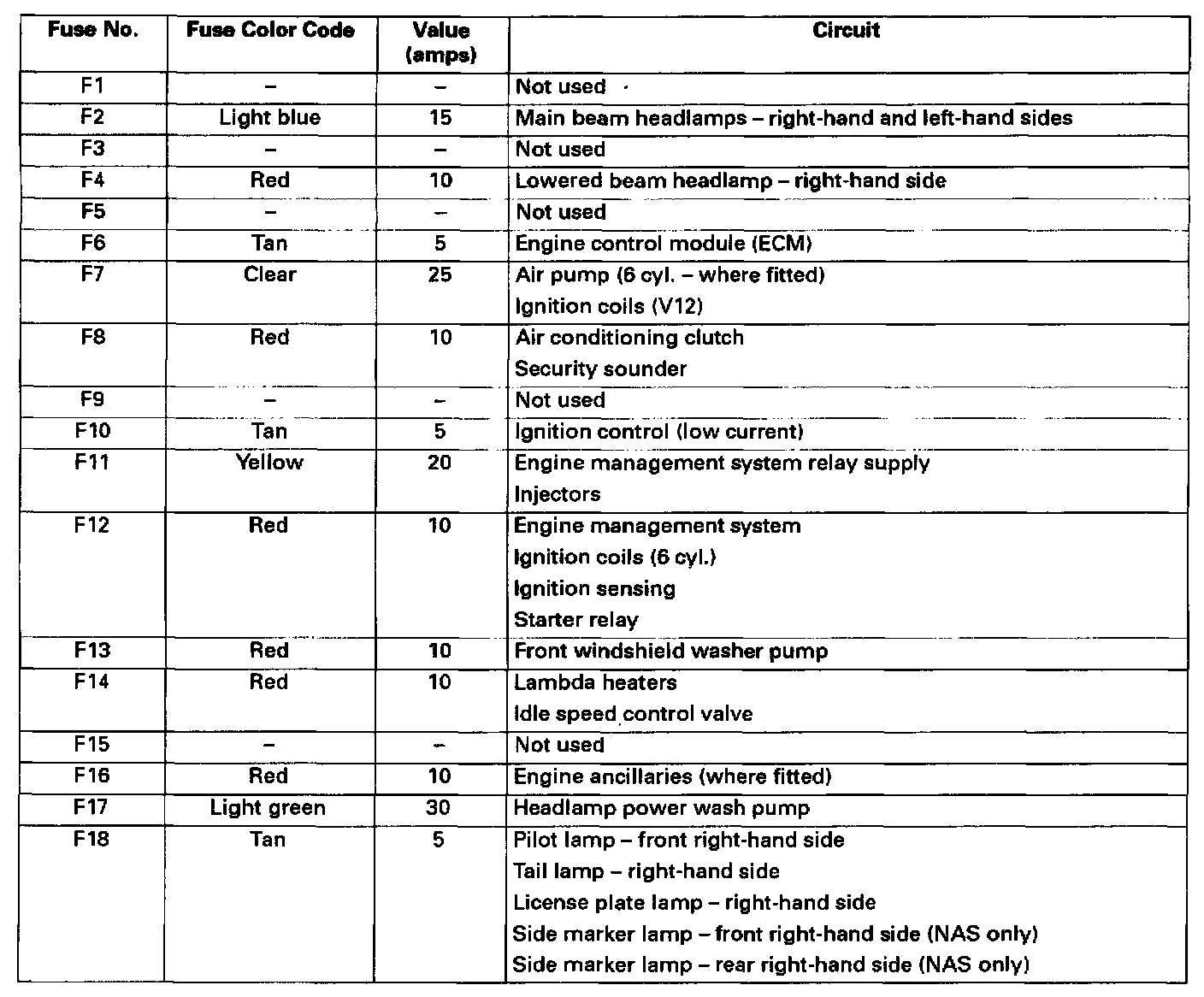

Engine Bay Fuse Box-Left-hand Side:

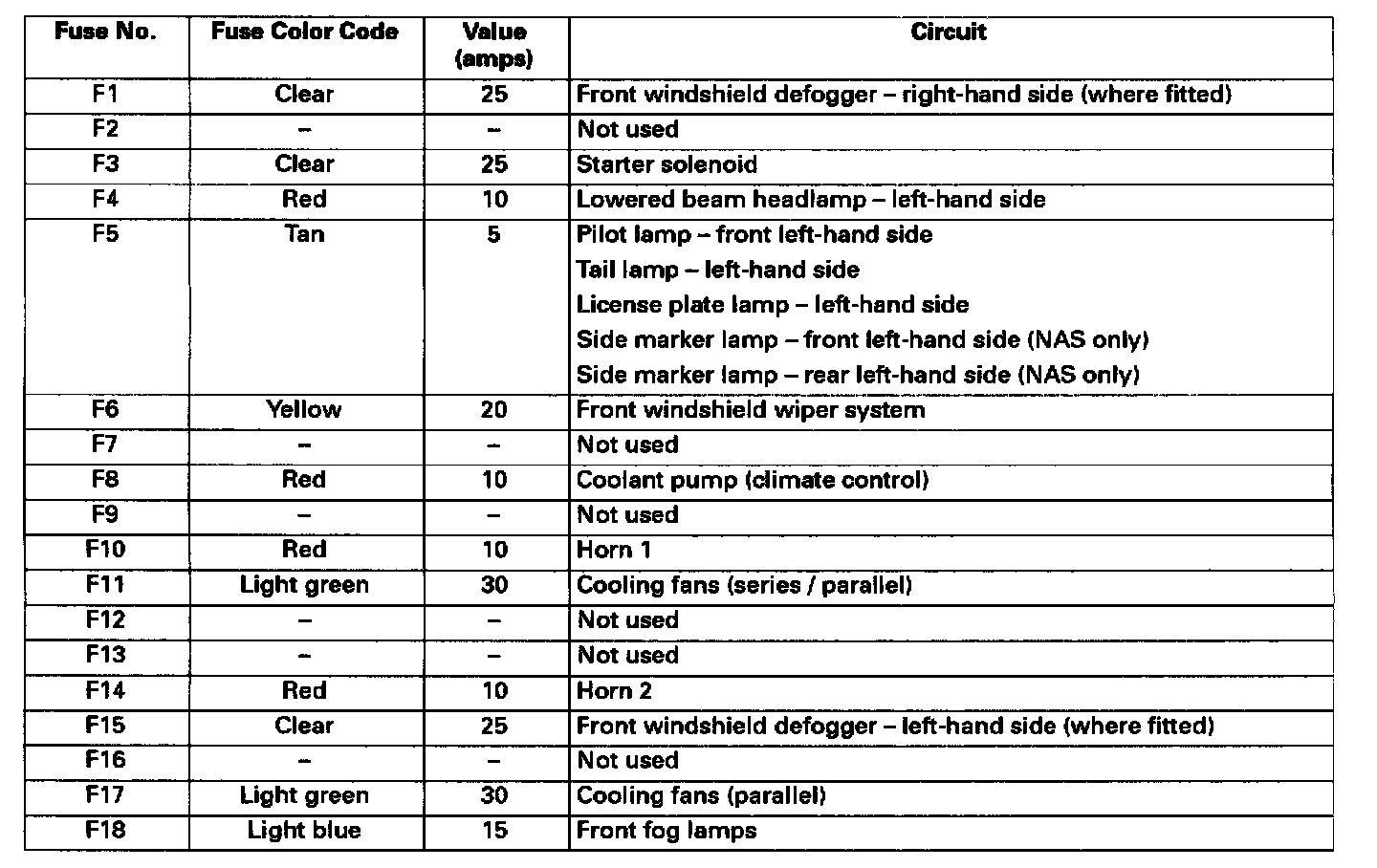

Engine Bay Fuse Box-Right-hand Side:

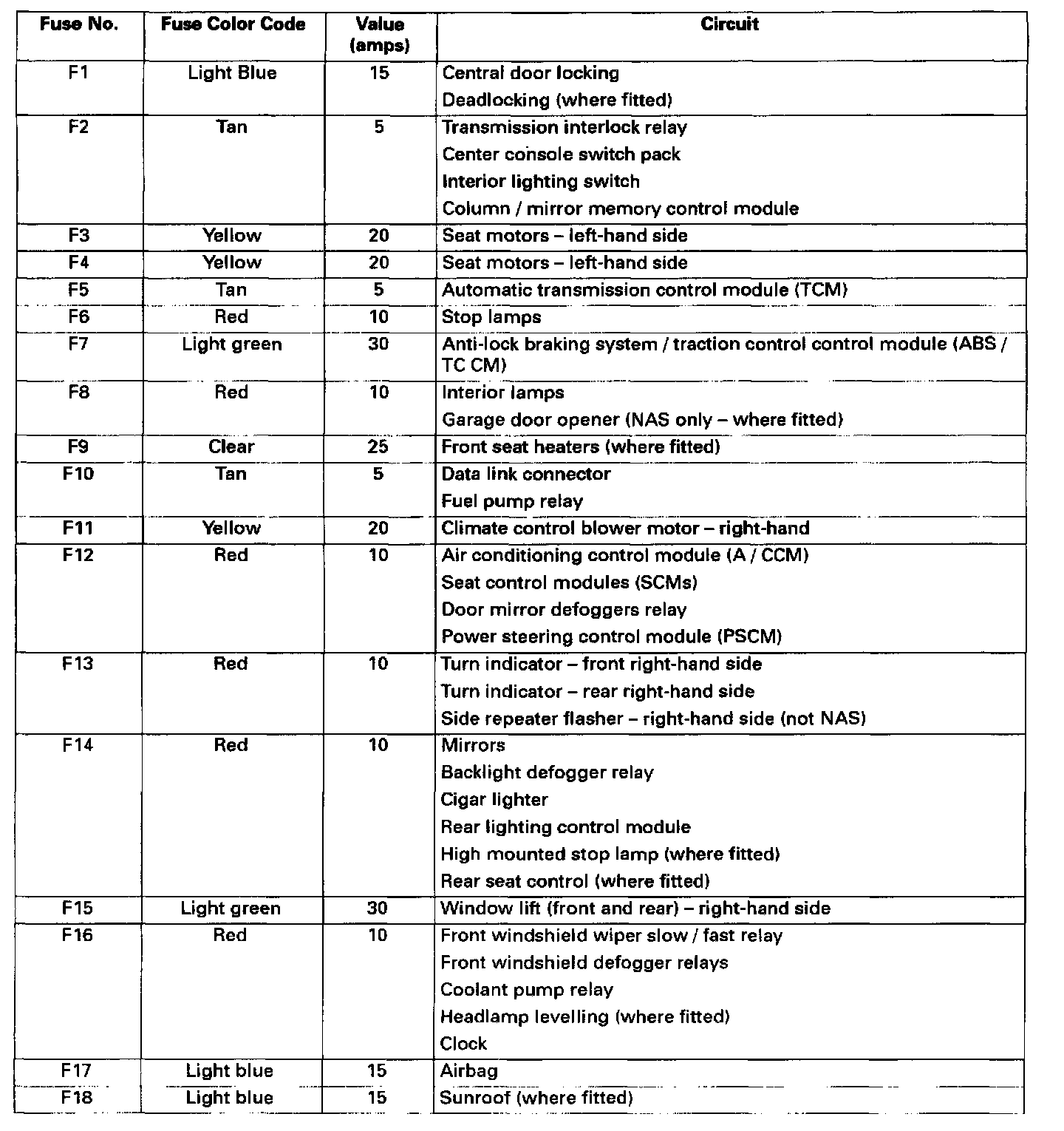

Rear Compartment Fuse Box-Left-hand Side Heelboard:

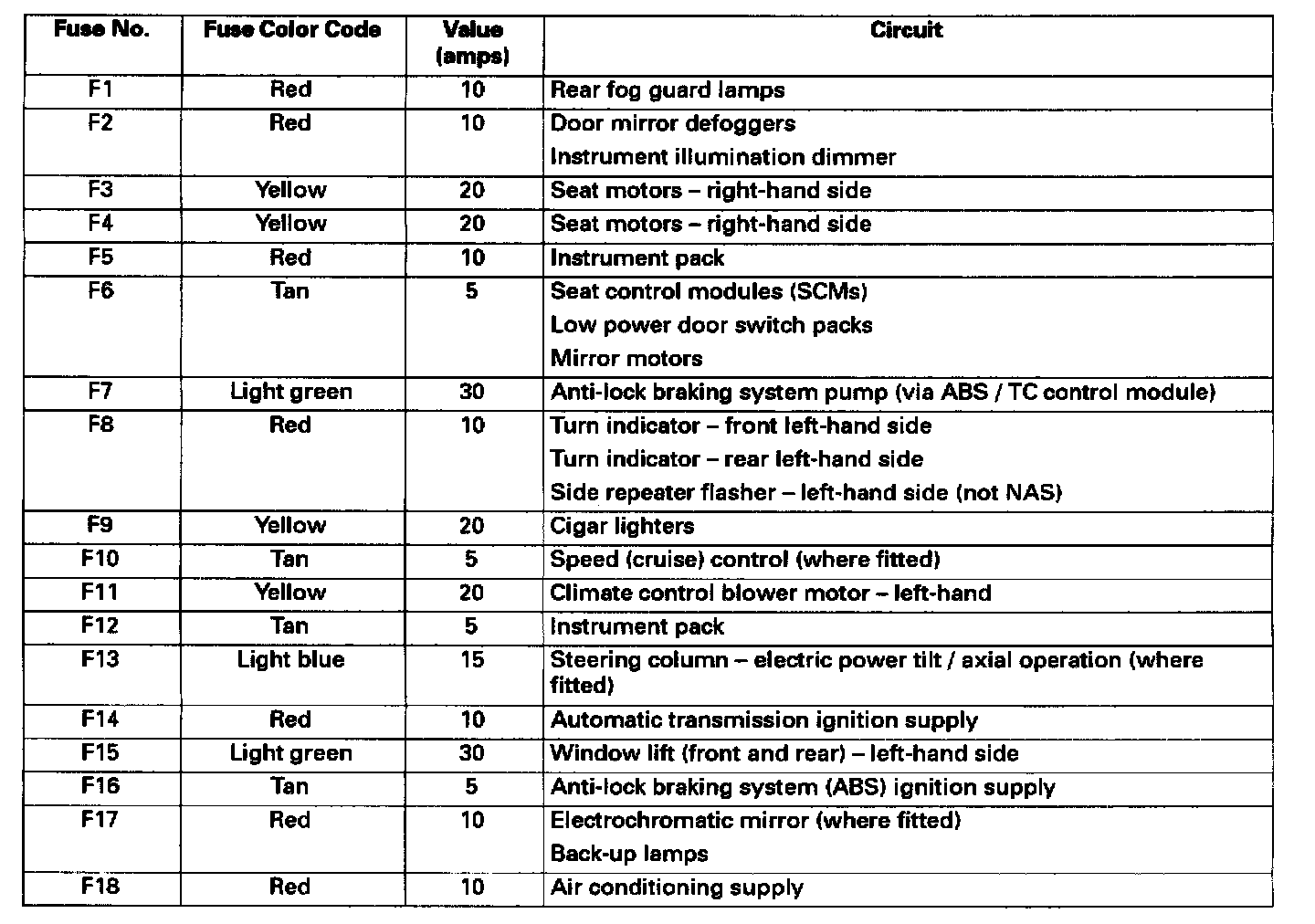

Rear Compartment Fuse Box-Right-hand Side Heelboard:

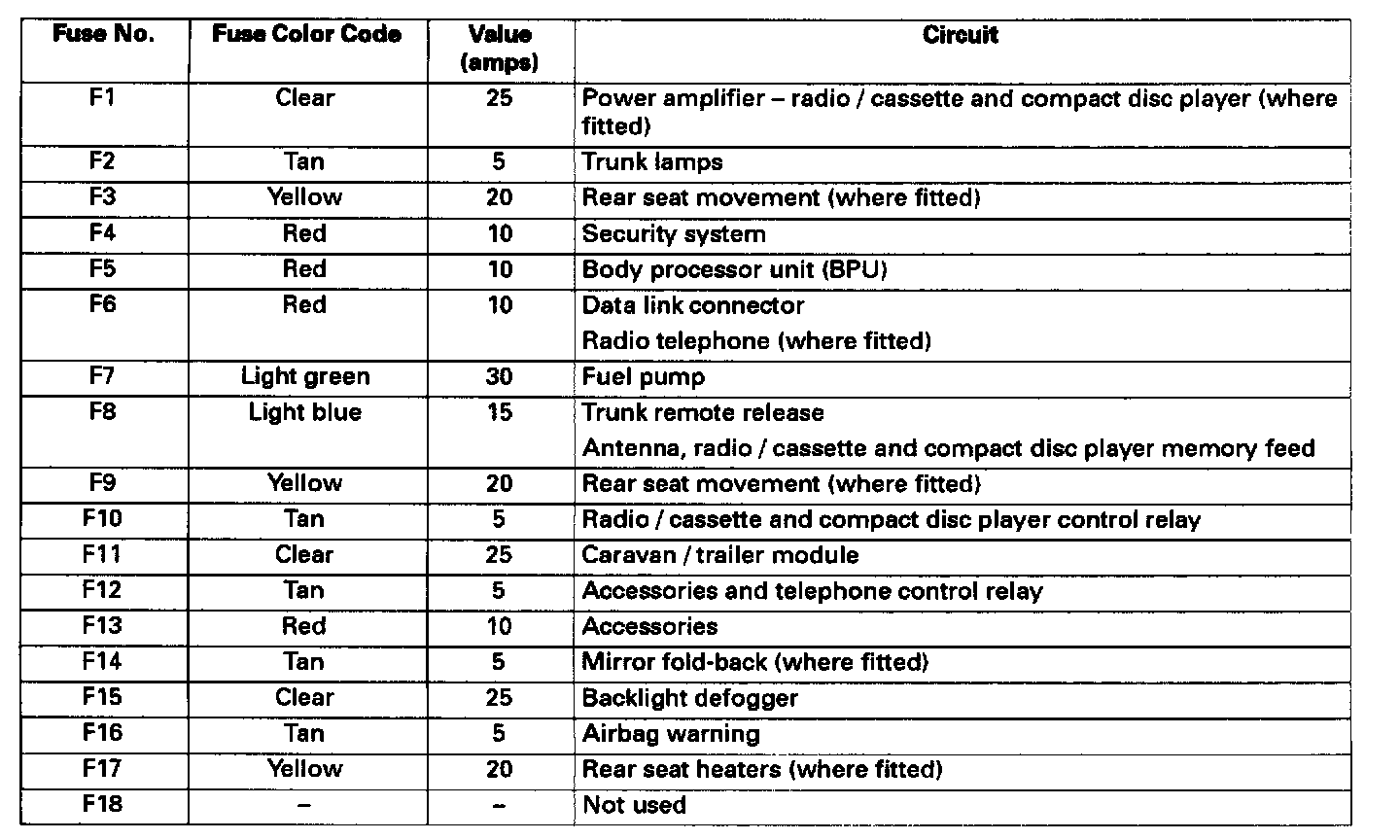

Trunk Fuse Box:
