Engine Bay, Trunk Fuse Boxes

C��Battery Power Distribution-Engine Bay, Trunk Fuse Boxes:

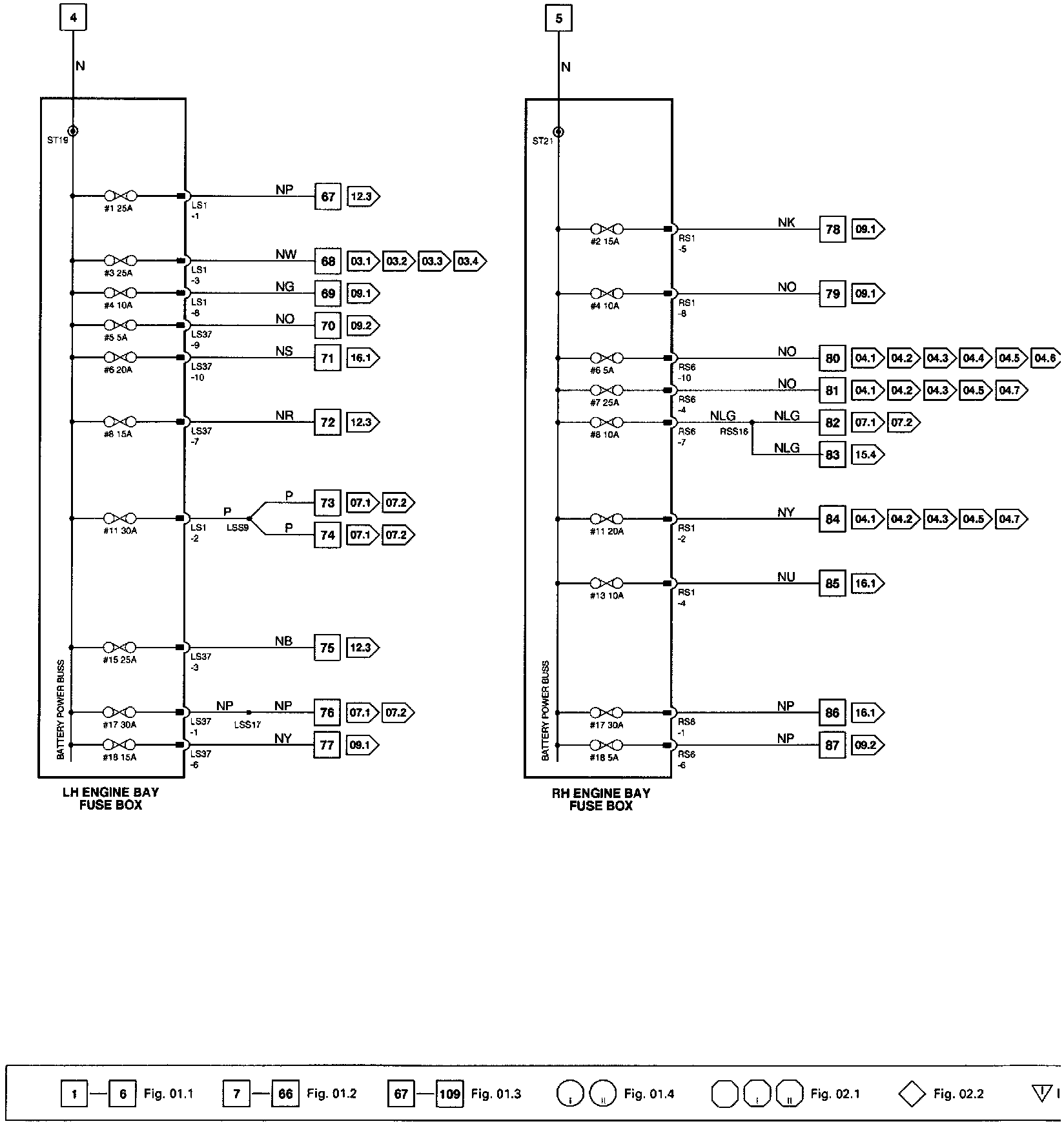

Wiring Diagram

Use the Hyperlink (VIEW) button to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

Battery Power Distribution-Engine Bay, Trunk Fuse Boxes: Components:

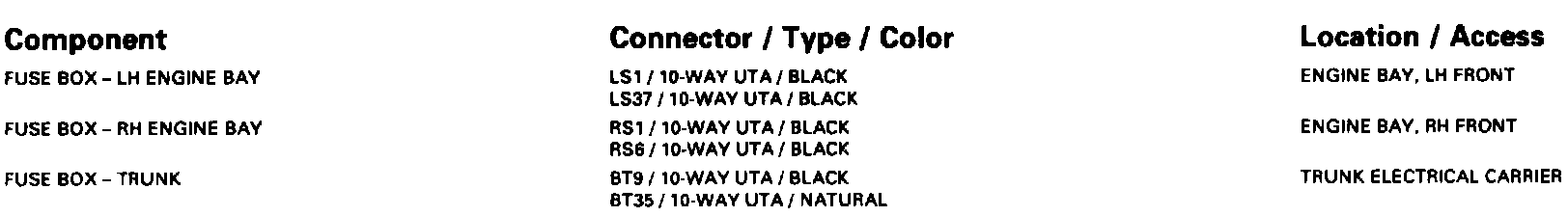

Component Information

Battery Power Distribution-Engine Bay, Trunk Fuse Boxes: Harness-To-Harness Connectors:

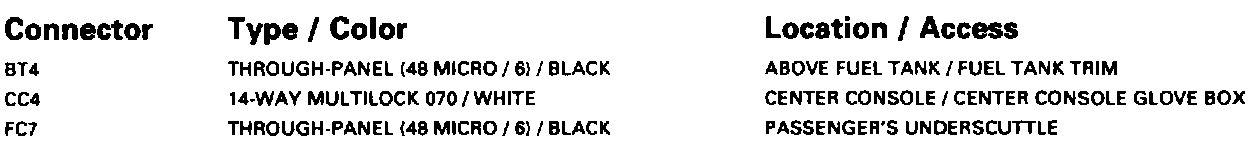

Harness-To-Harness Connectors Informations
