AJ16

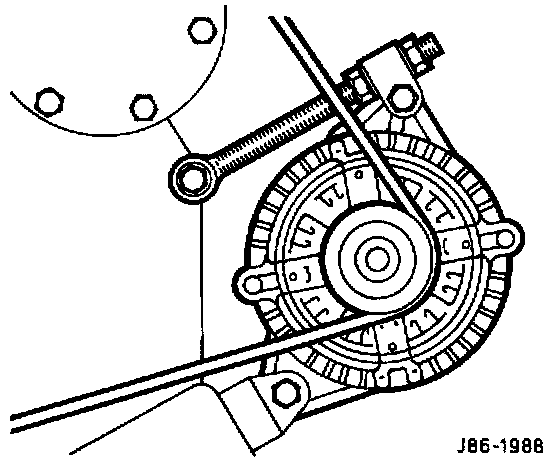

Generator Assembly (AJ16):

- Loosen the generator pivot bolt locknut, the generator to trunnion block securing bolt and the adjusting bolt to the timing cover nut.
- To release the drive belt tension, undo the adjusting bolt lock nut and the adjusting nut.
- Remove the drive belt and if applicable the generator. a Refit components in revers order to the removal procedure and adjust the drive belt to the correct tension.
