Power Window Switch: Service and Repair

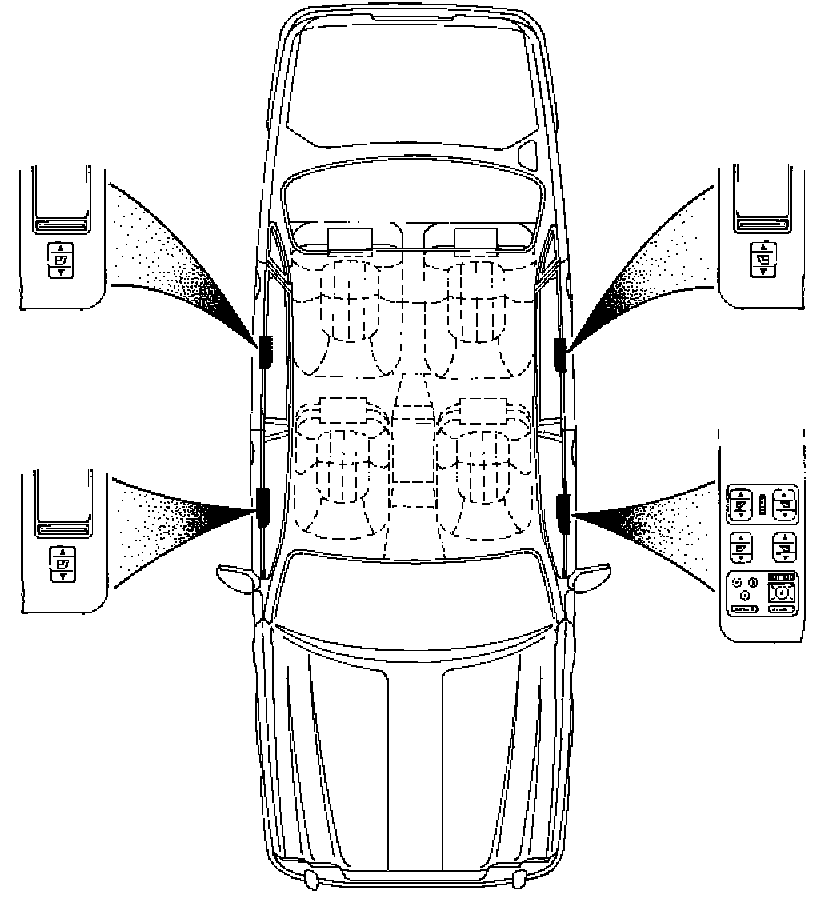

Power Window Switchpack Locations:

Front and rear switchpack removal and installation.
- Disconnect the battery.

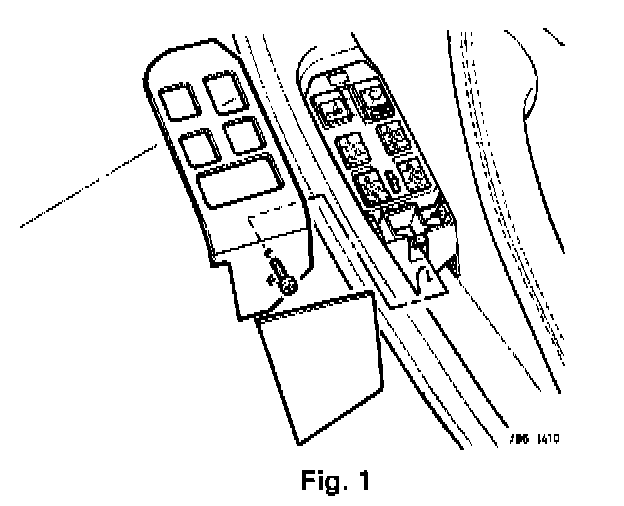

- Remove the window lift assembly end cover trim pad (Fig. 1).
- Remove coin box / ashtray (where fitted).

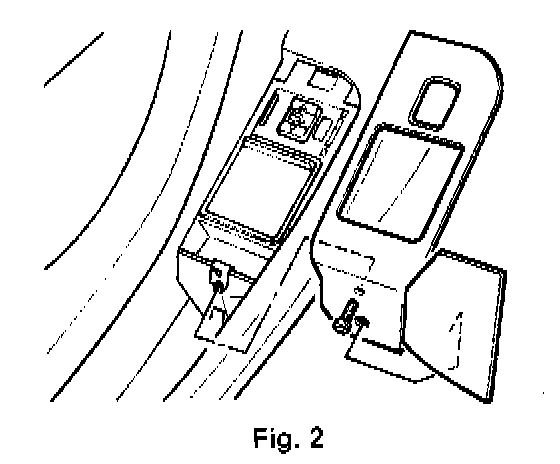

- Remove the veneer panel secured using single retaining screw (Fig. 2).
- Remove the veneer panel from the forward securing.
- Place panel aside.
- Remove switchpack.
- Refit in the reverse order of the removal procedure.
