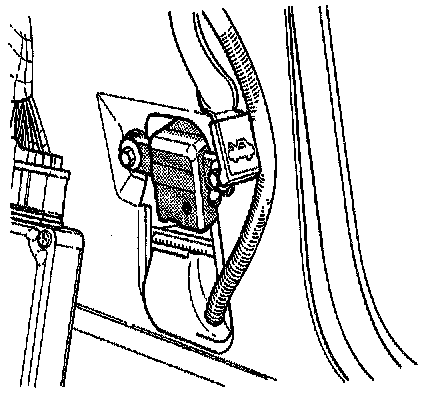

Airbag Crash Sensor ('A' Pillar)

Impact Sensors:

- Disconnect the battery and wait for one minute before attempting sensor removal.
- Remove 'A' post lower trim pad for access, see 'Body and Frame, Interior Trim, Trim Panel.' Trim Panel
- Remove ignition/injection control module.
- Carefully reposition and disconnect sensor multi-plug located inside the 'A' post lower aperture.
- Remove lower sensor fixing and sensor from vehicle.
- Refit the sensor in reverse order to removal procedures.
