Inertia Fuel Shutoff Switch: Service and Repair

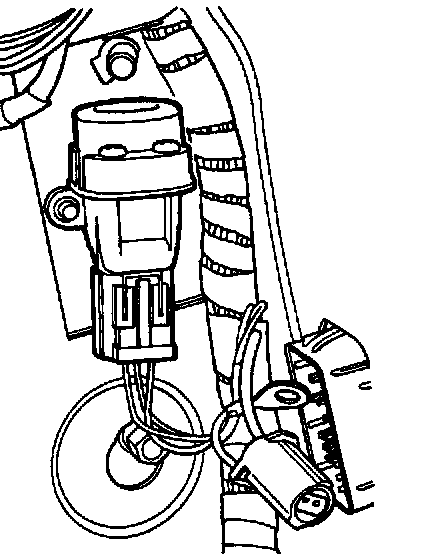

Fig. 1:

Remove
- Disconnect battery.
- Remove the right 'A' post lower trim pad (kick panel).
- Remove the EMS control module.
- Disconnect vehicle harness through panel connector.
- Disconnect inertia switch multi-plug (Fig. 1).
- Remove switch.

Refit in the reverse order of the removal procedure.
