Electrical Diagrams

�I�Stop Lamps; Reverse Lamps:

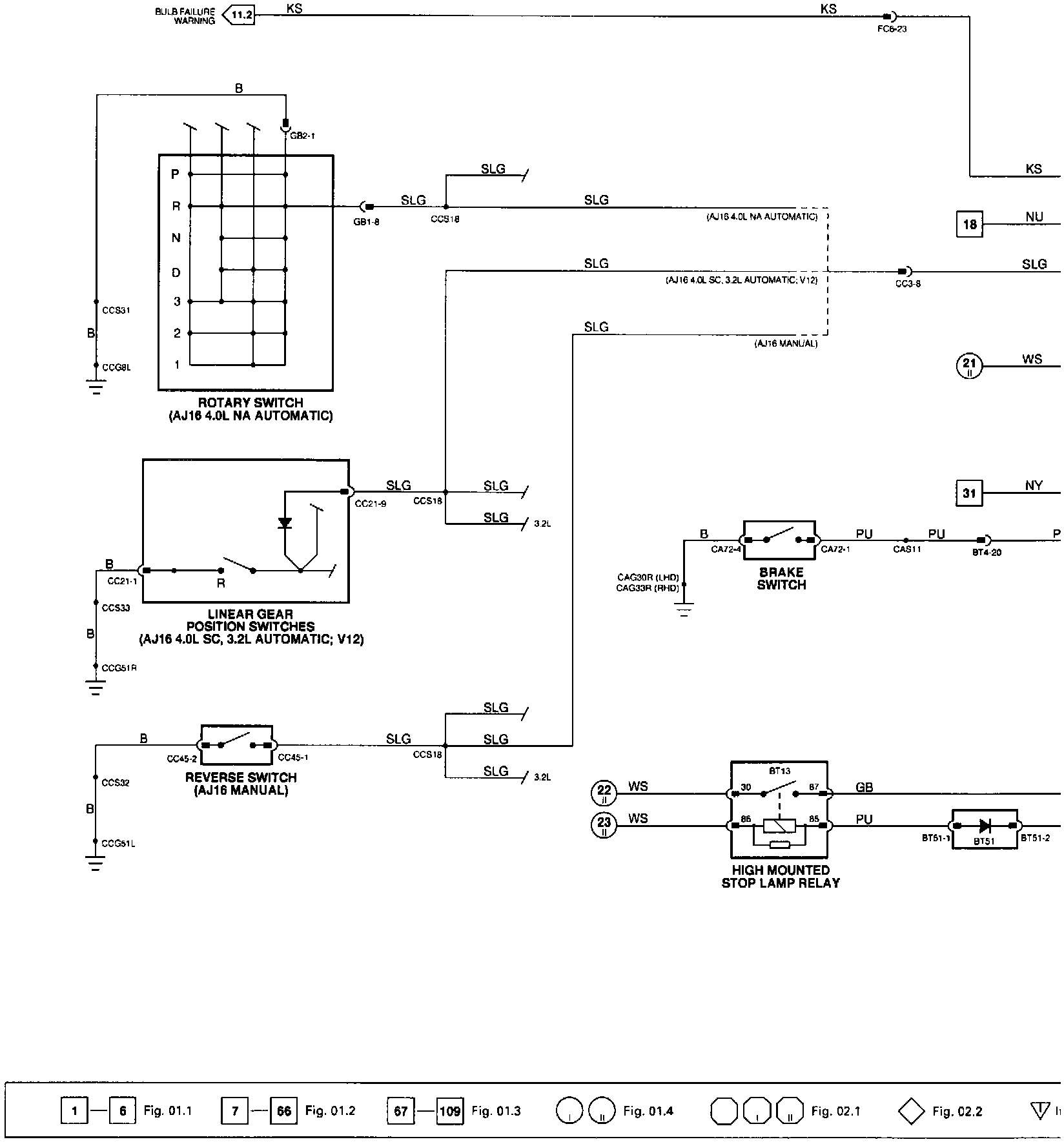

Wiring Diagram

Use the Hyperlink (VIEW) button to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

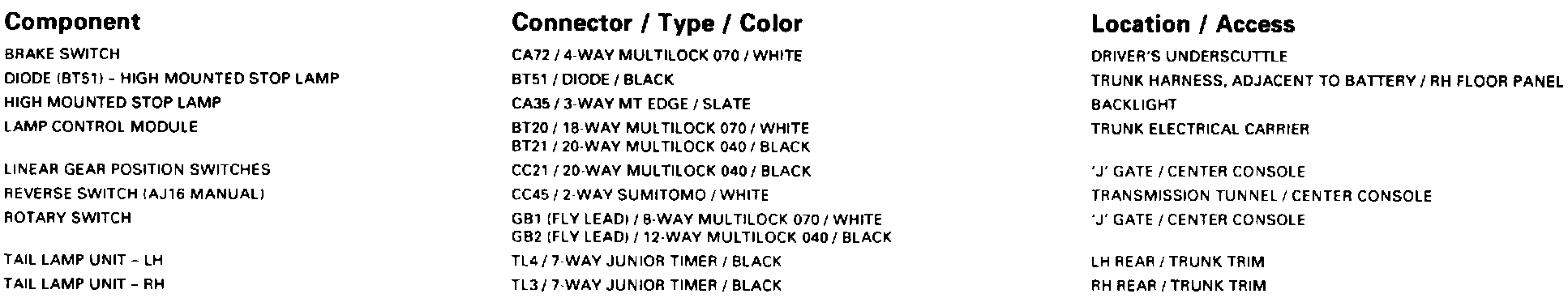

Stop Lamps; Reverse Lamps: Components:

Component Information

Stop Lamps; Reverse Lamps: Relays:

Relay Information

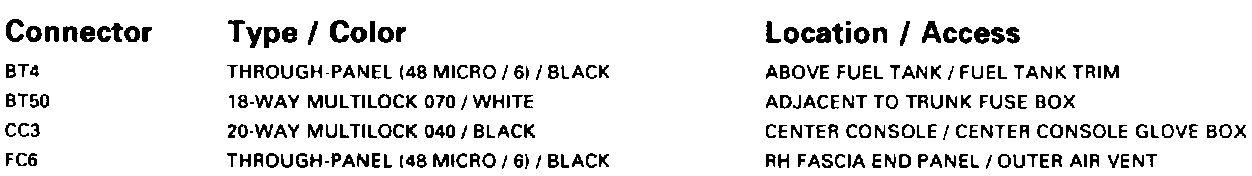

Stop Lamps; Reverse Lamps: Harness-To-Harness Connectors:

Harness-To-Harness Connectors Informations

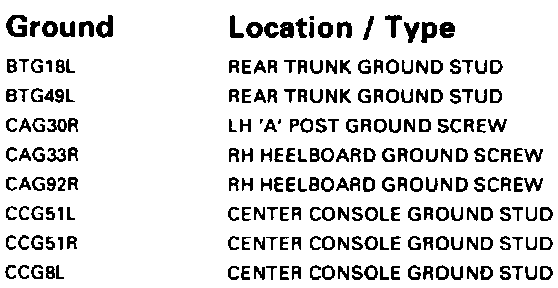

Stop Lamps; Reverse Lamps: Grounds:

Ground Information
