SWB

V�tDimmer Controlled Lighting-SWB:

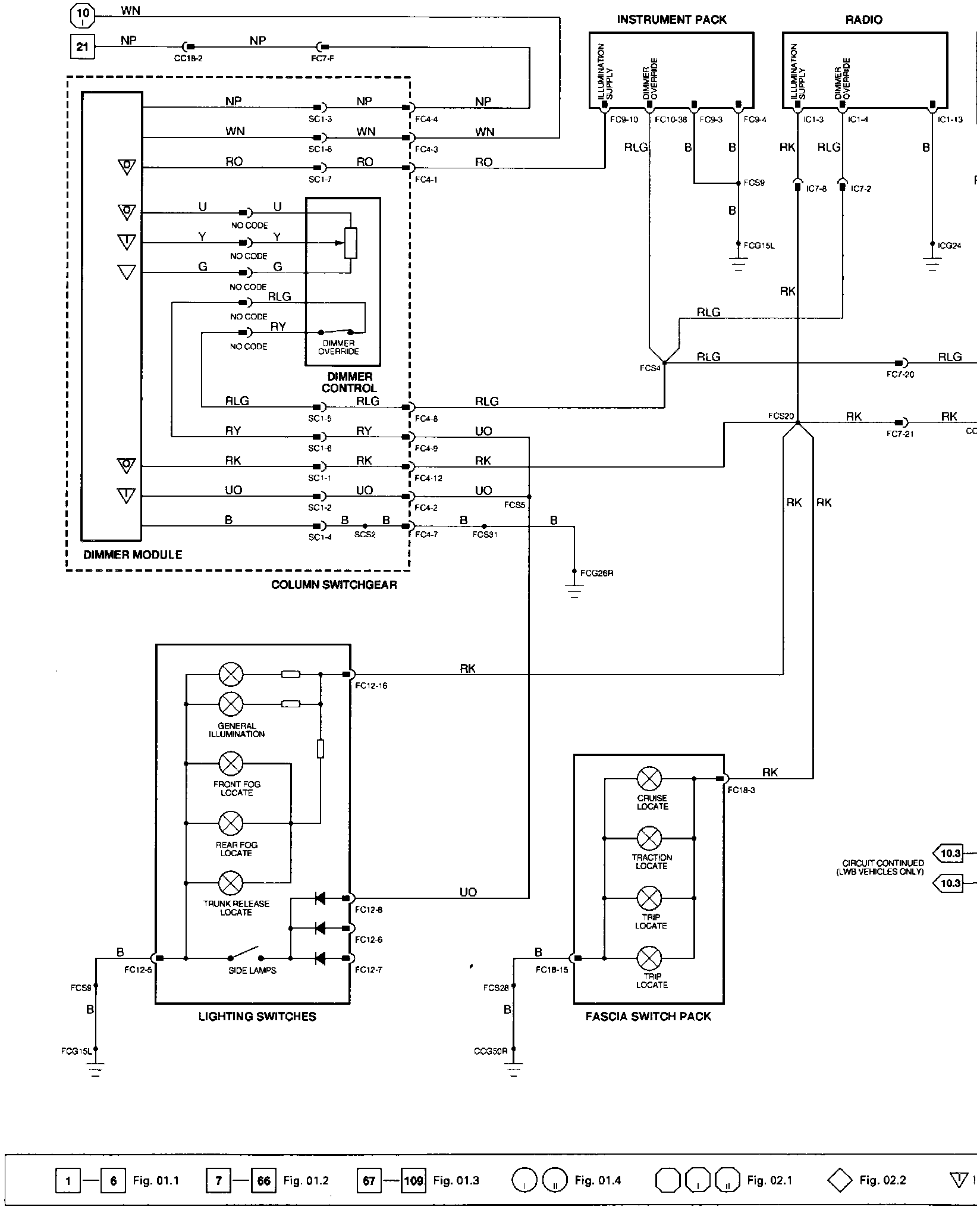

Wiring Diagram

Use the Hyperlink (VIEW) button to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

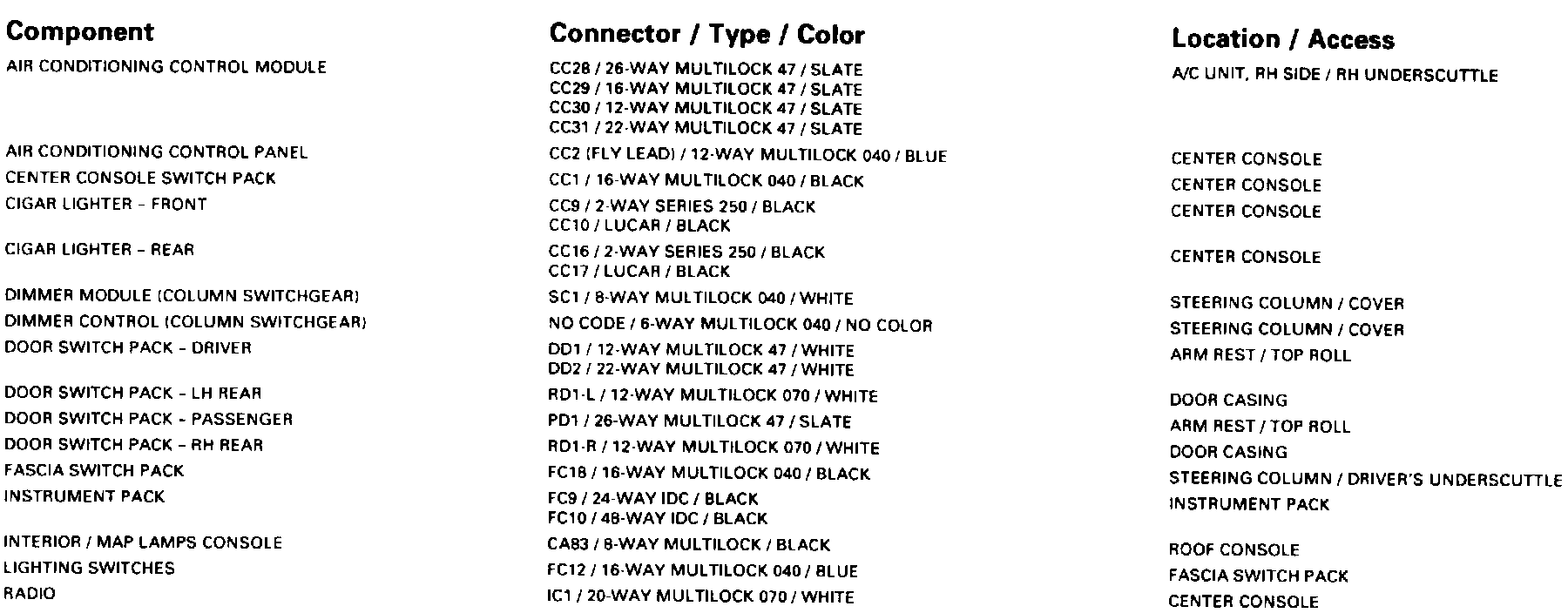

Dimmer Controlled Lighting-SWB: Components:

Component Information

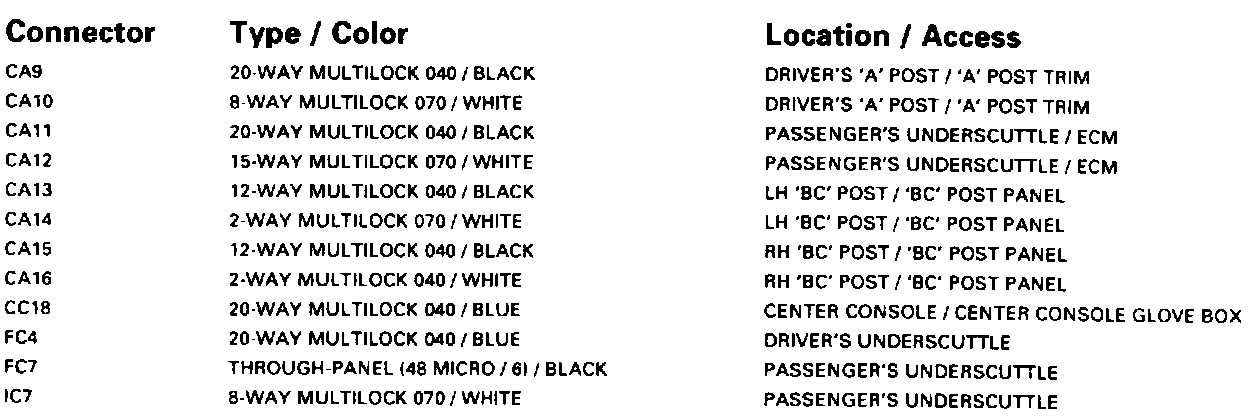

Dimmer Controlled Lighting-SWB: Components: Harness-To-Harness Connectors:

Harness-To-Harness Connectors Informations

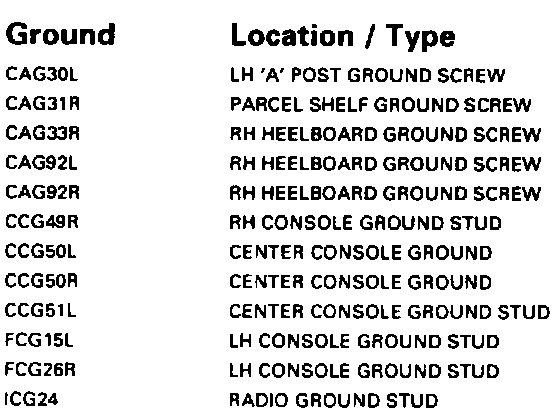

Dimmer Controlled Lighting-SWB: Components: Grounds:

Ground Information

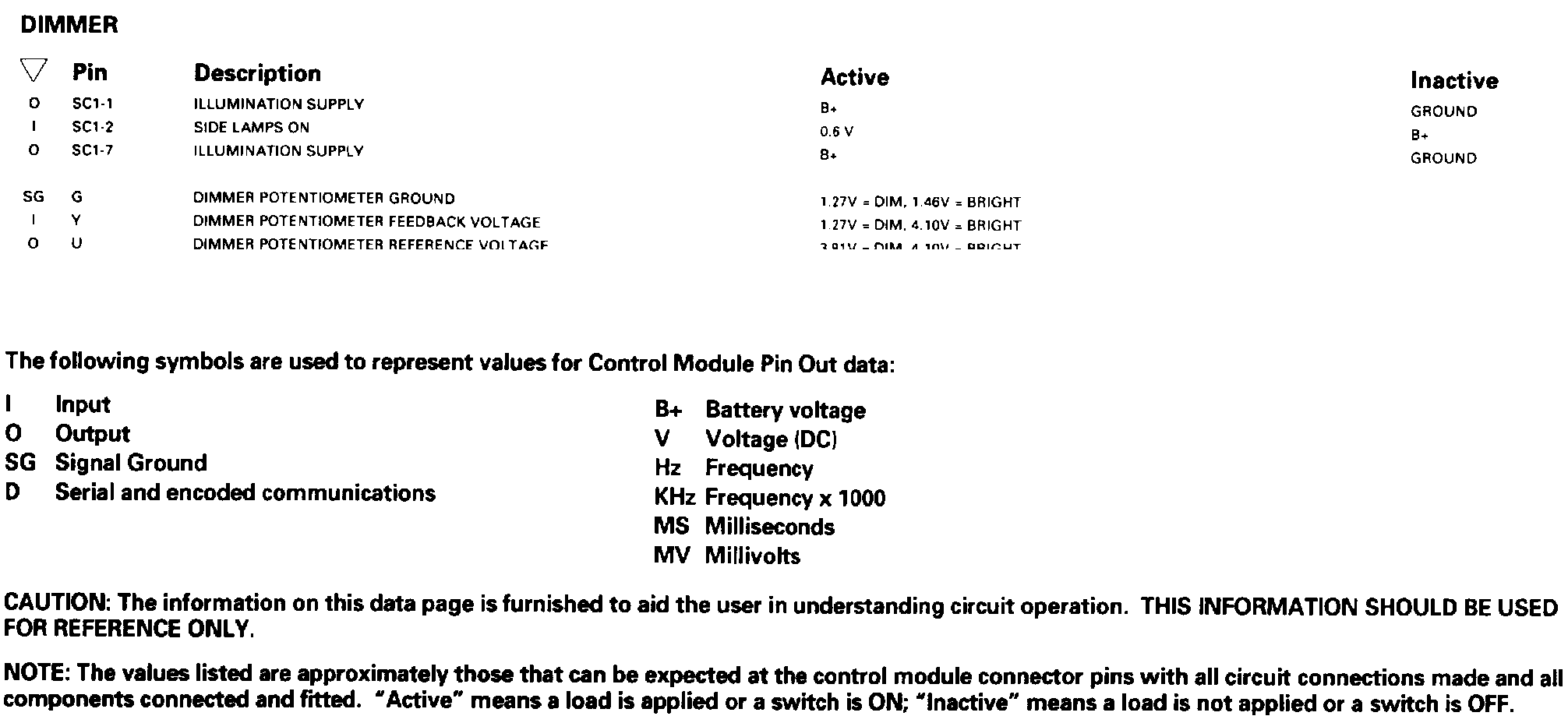

Dimmer Controlled Lighting-SWB: Components: Control Module Pin Out Information:

Control Module Pin Out Informations
