Sunroof / Moonroof Module: Service and Repair

SLIDING ROOF CONTROL MODULE (SRCM):

- Remove sliding roof trim panel for access.
- Adjust sliding roof panel profile zero position.
- Remove roof console for access.

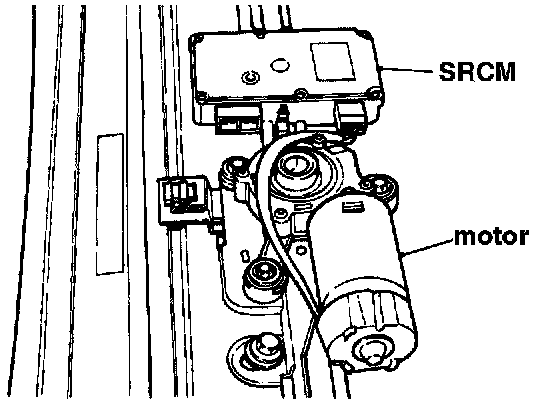

- Remove and place SRCM (2) aside.

NOTE: Refer to TSB 13-34 for a more detailed instruction, and for proper SRCM timing procedure.

Refit in the reverse order of removal procedure.
