Throttle Cable/Linkage: Adjustments

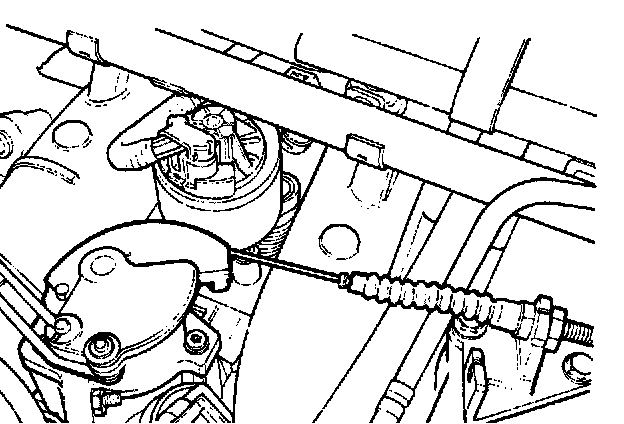

- Disconnect throttle cable relaxer multi-plug and remove the throttle cable relaxer cover.
- Displace and reposition the throttle cable locking sleeve.
- Turn the cable adjuster until the pin of the relaxer quadrant contacts and moves the cam of the relaxer potentiometer.
- Slacken and adjust the throttle cable lock nut until the throttle potentiometer lower quadrant contacts the upper quadrant.
- Depress throttle cable 20 times to settle cable.
- Turn the cable adjuster until the pin of the relaxer quadrant contacts and moves the cam of the relaxer potentiometer.
- Slacken and adjust the throttle cable lock nut until the throttle potentiometer lower quadrant contacts the upper quadrant.
- Ensure the cable does not open the throttle pot with a fully closed throttle.
- Finally tighten throttle cable lock nuts and reposition pedal housing to relaxer cable adjuster locking sleeve.
- Fit and align relaxer cover.
- Connect relaxer potentiometer multi-plug.
- Adjust kick down switch.
