Main

�Battery Power Distribution-Main:

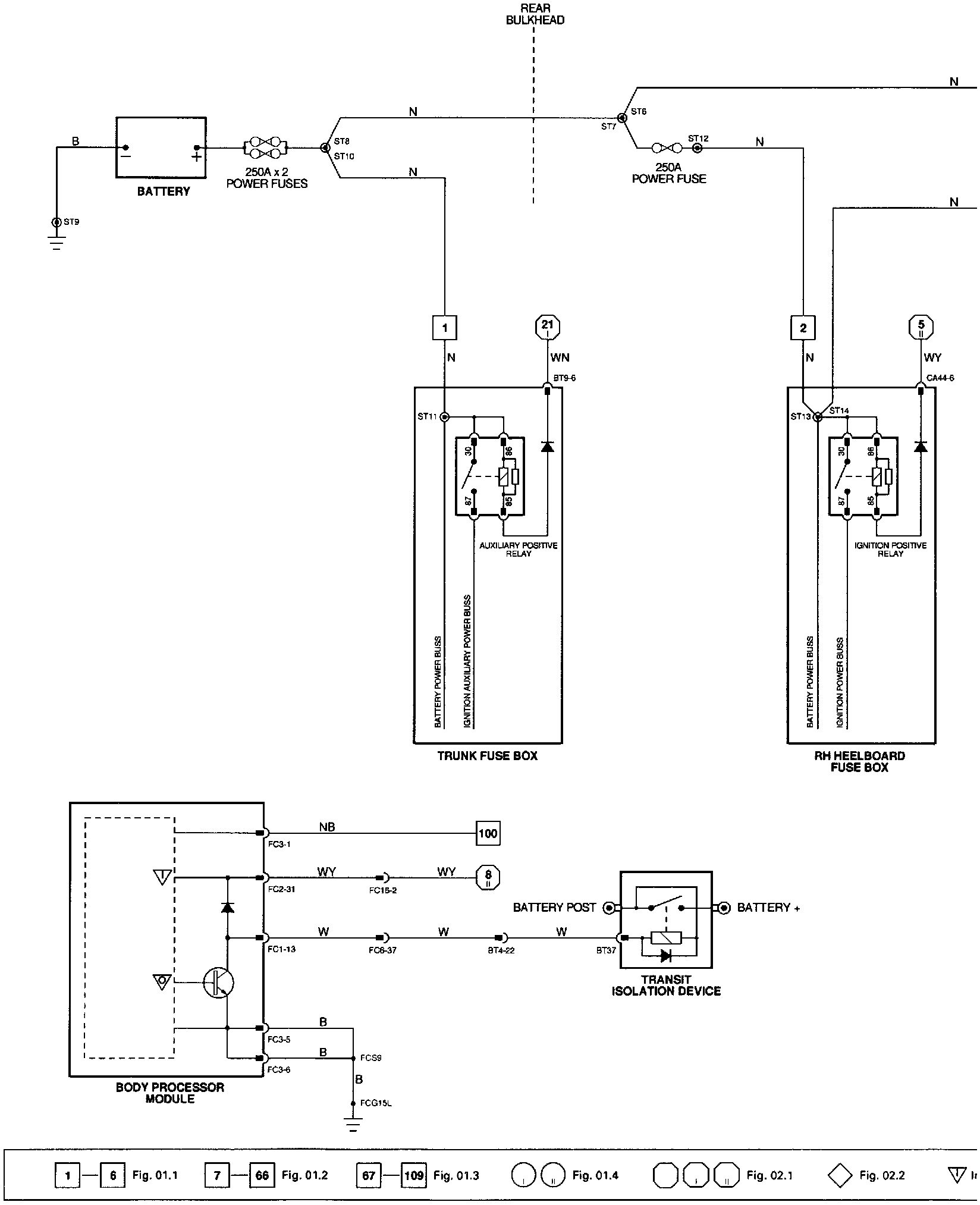

Wiring Diagram

Use the Hyperlink (VIEW) button to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

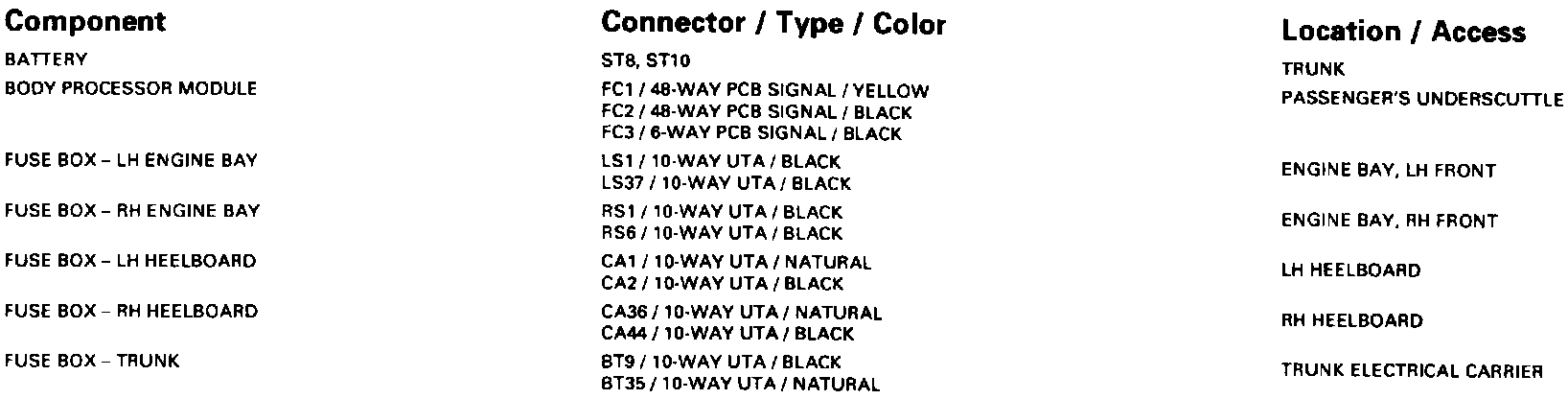

Battery Power Distribution-Main: Components:

Component Information

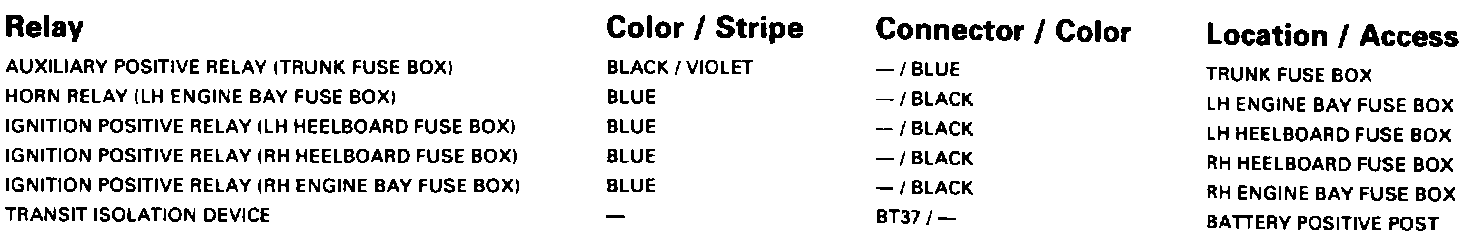

Battery Power Distribution-Main: Relays:

Relay Information

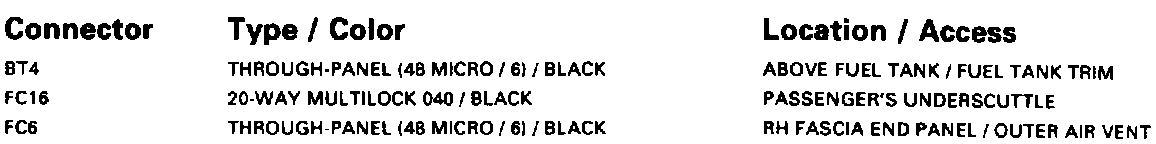

Battery Power Distribution-Main: Harness-To-Harness Connectors:

Harness-To-Harness Connector Informations

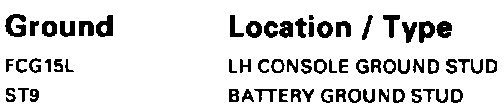

Battery Power Distribution-Main: Grounds:

Ground Information

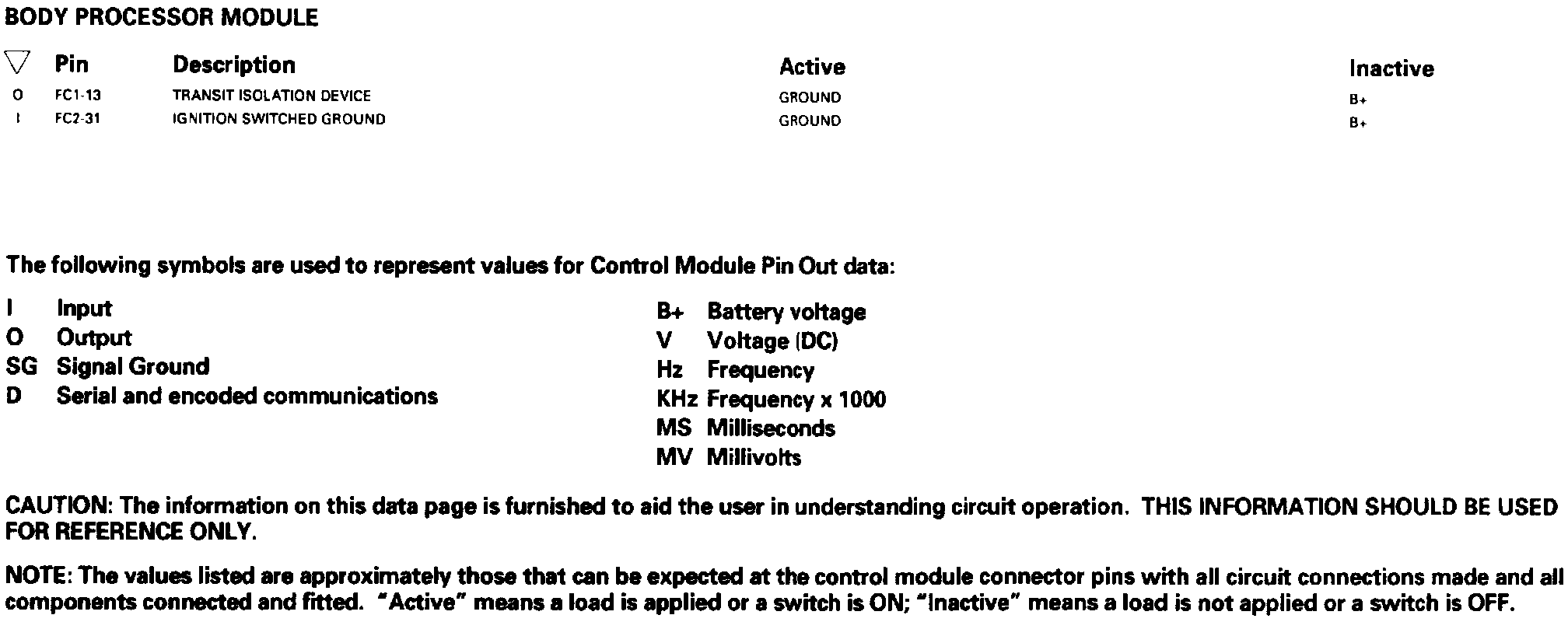

Battery Power Distribution-Main: Control Module Pin Out Information:

Control Module Pin Out Informations
