Electrical Diagrams

���$Direction Indicators; Hazard Warning Lamps:

Wiring Diagram

Use the Hyperlink (VIEW) button to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

Direction Indicators; Hazard Warning Lamps: Components:

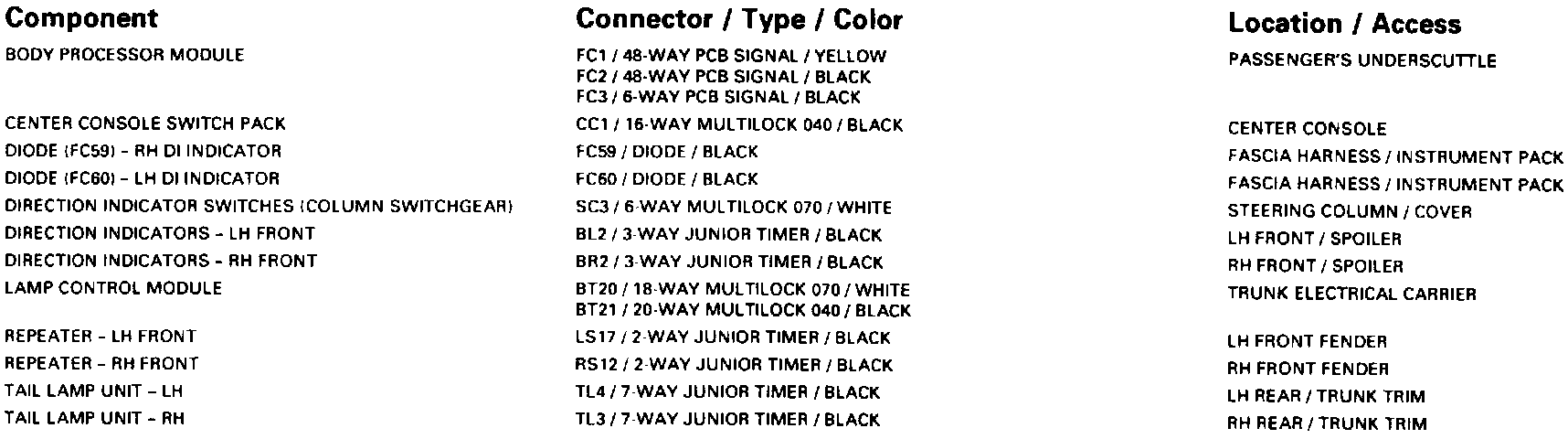

Component Information

Direction Indicators; Hazard Warning Lamps: Harness-To-Harness Connectors:

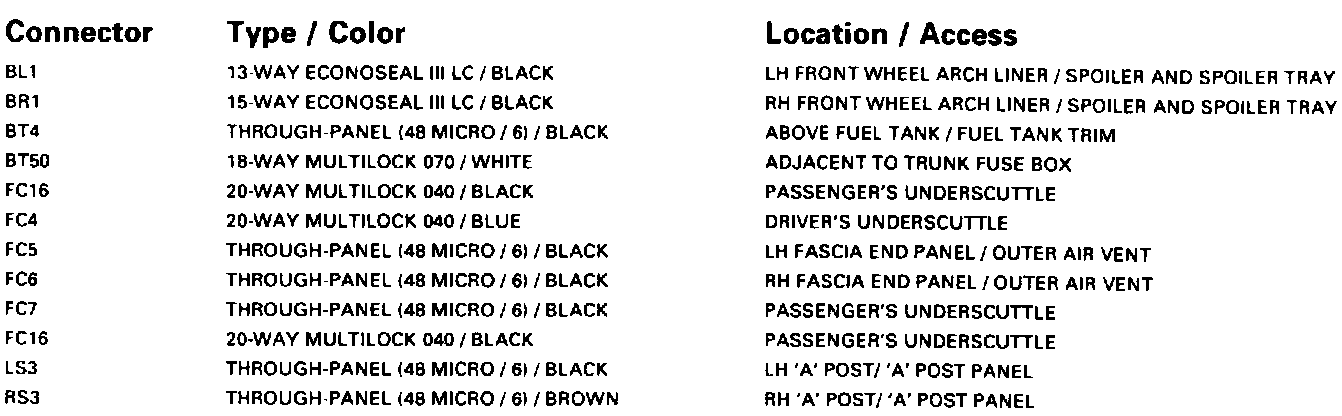

Harness-To-Harness Connectors Informations

Direction Indicators; Hazard Warning Lamps: Grounds:

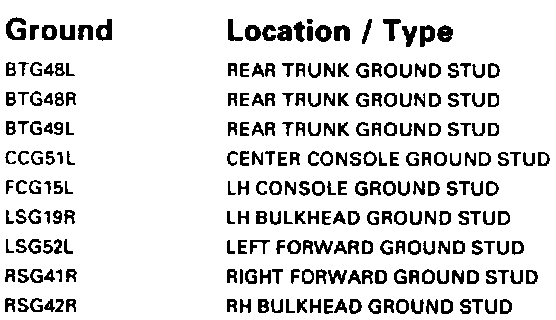

Ground Information

Direction Indicators; Hazard Warning Lamps: Control Module Pin Out Information:

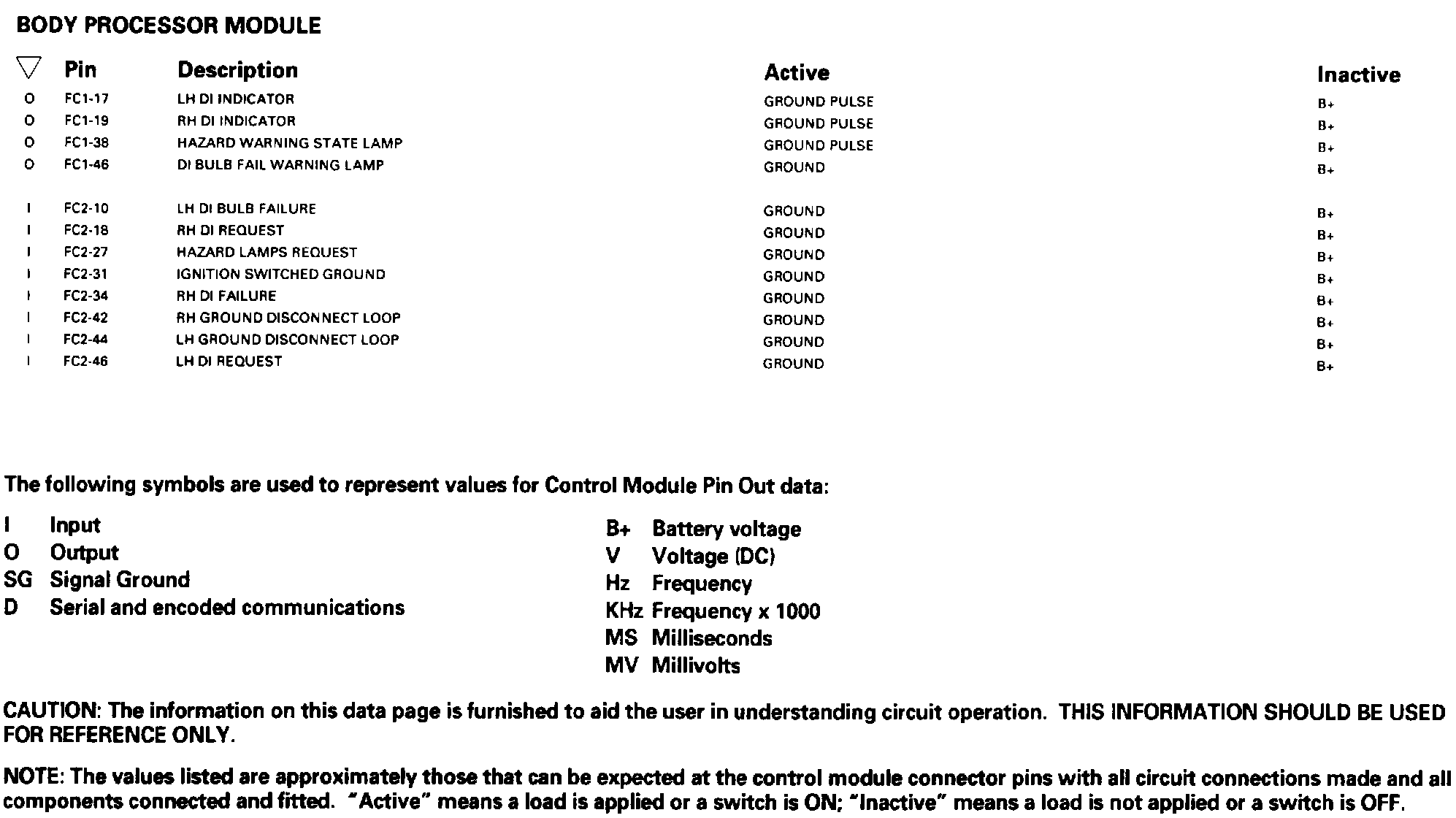

Control Module Pin Out Informations
