Rear Fog Lamps

�`�$Tail Lamps; Rear Fog Lamps; Rear Side Lamps:

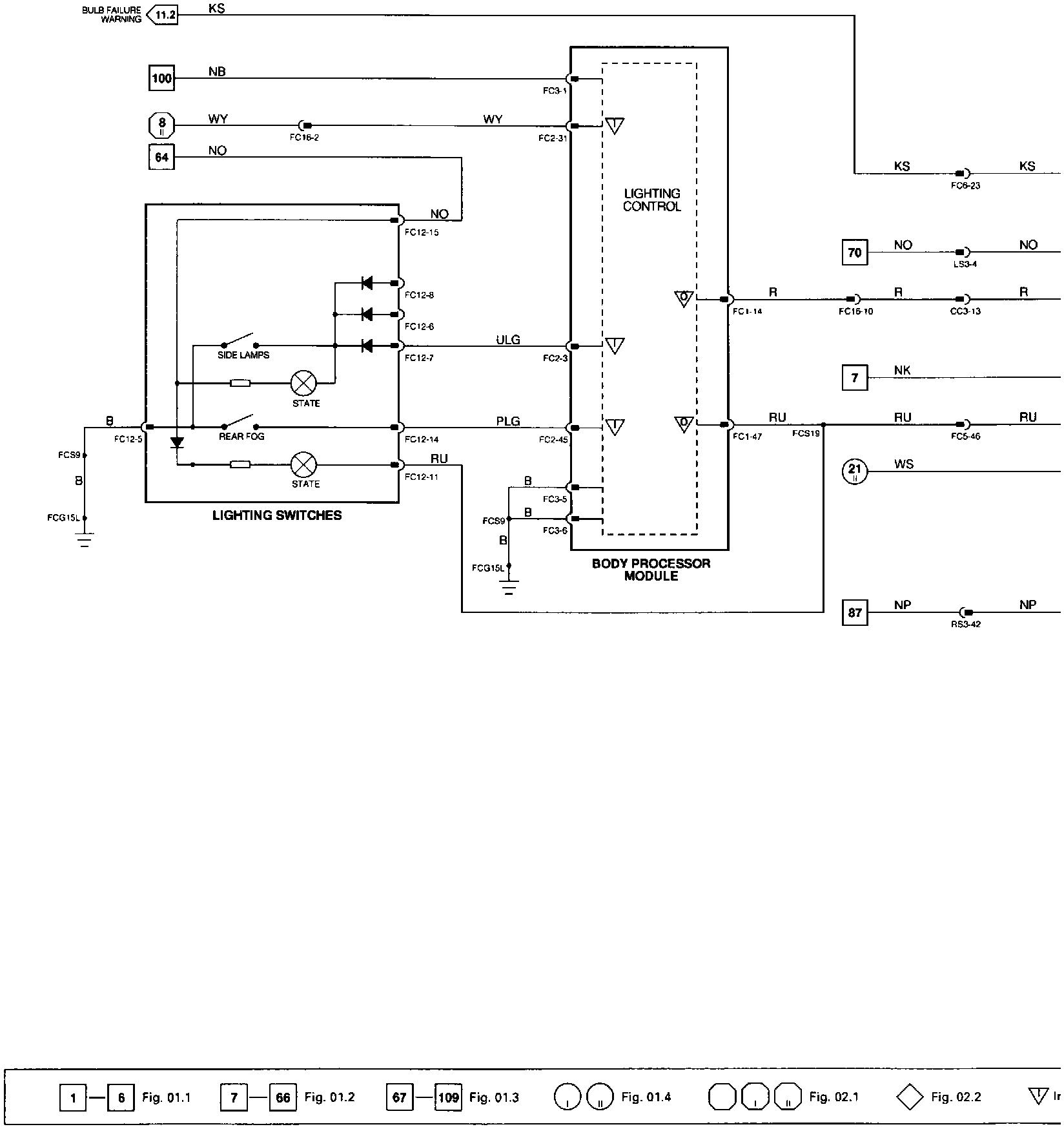

Wiring Diagram

Use the Hyperlink (VIEW) button to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

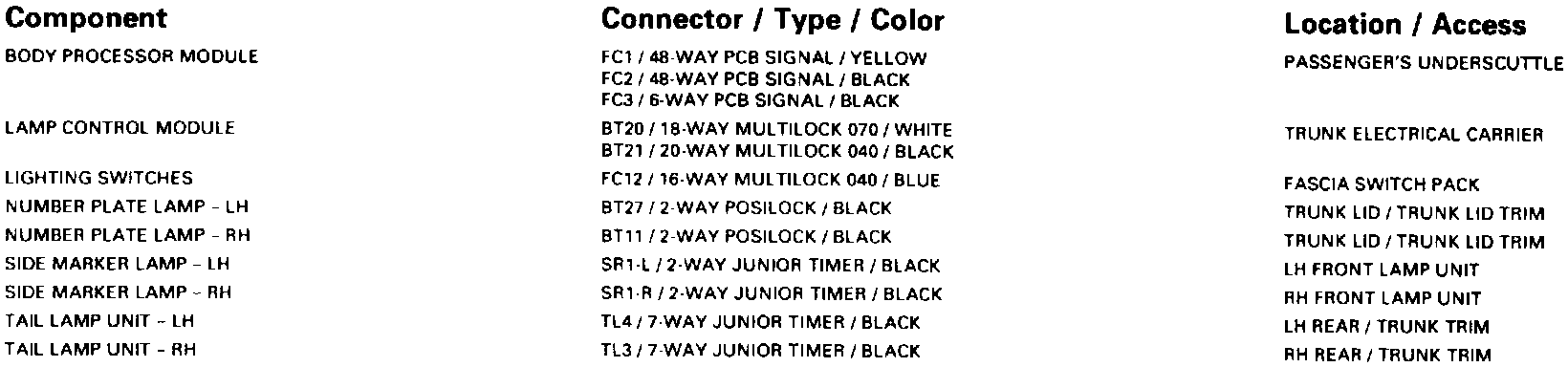

Tail Lamps; Rear Fog Lamps; Rear Side Lamps: Components:

Component Information

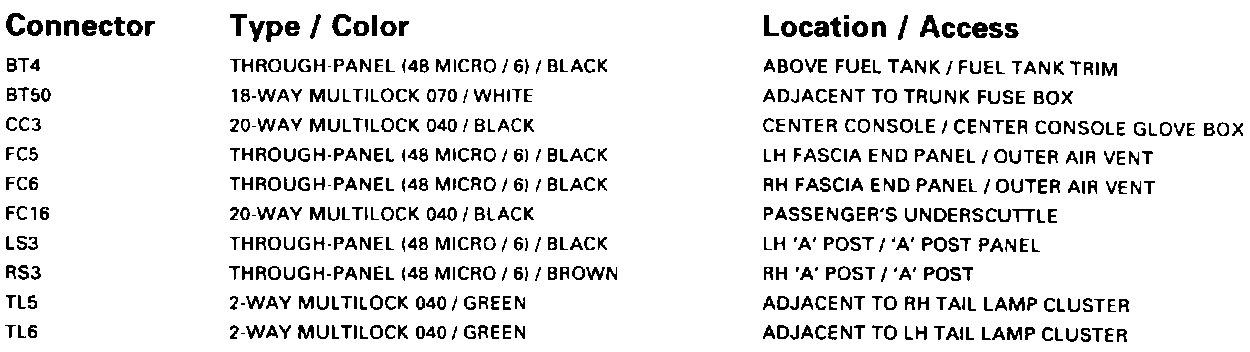

Tail Lamps; Rear Fog Lamps; Rear Side Lamps: Harness-To-Harness Connectors:

Harness-To-Harness Connectors Informations

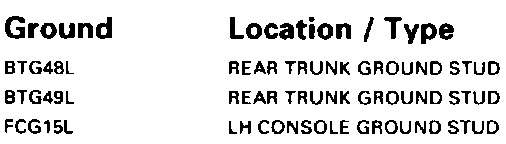

Tail Lamps; Rear Fog Lamps; Rear Side Lamps: Grounds:

Ground Information

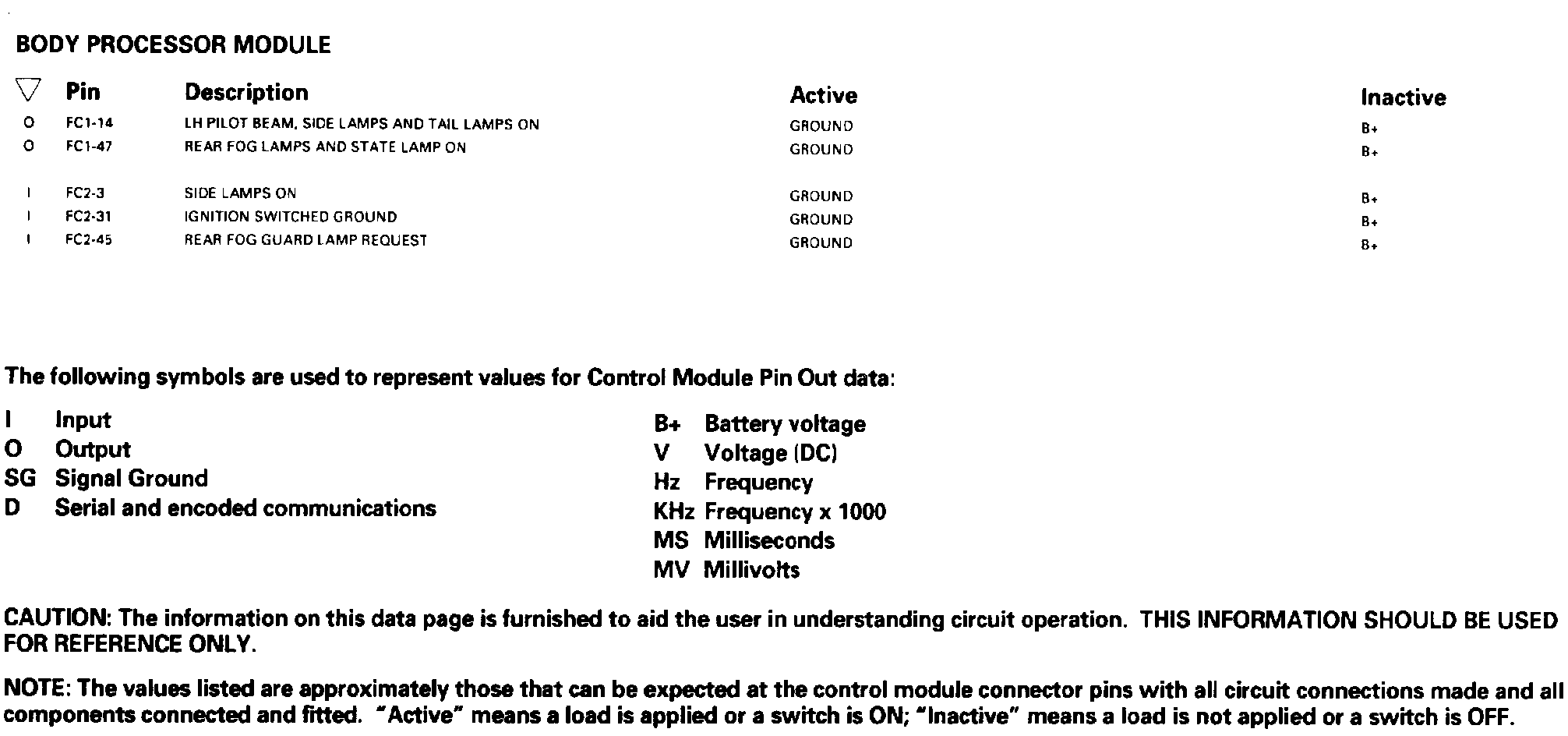

Tail Lamps; Rear Fog Lamps; Rear Side Lamps: Control Module Pin Out Information:

Control Module Pin Out Informations
