Interior Lighting, General Description

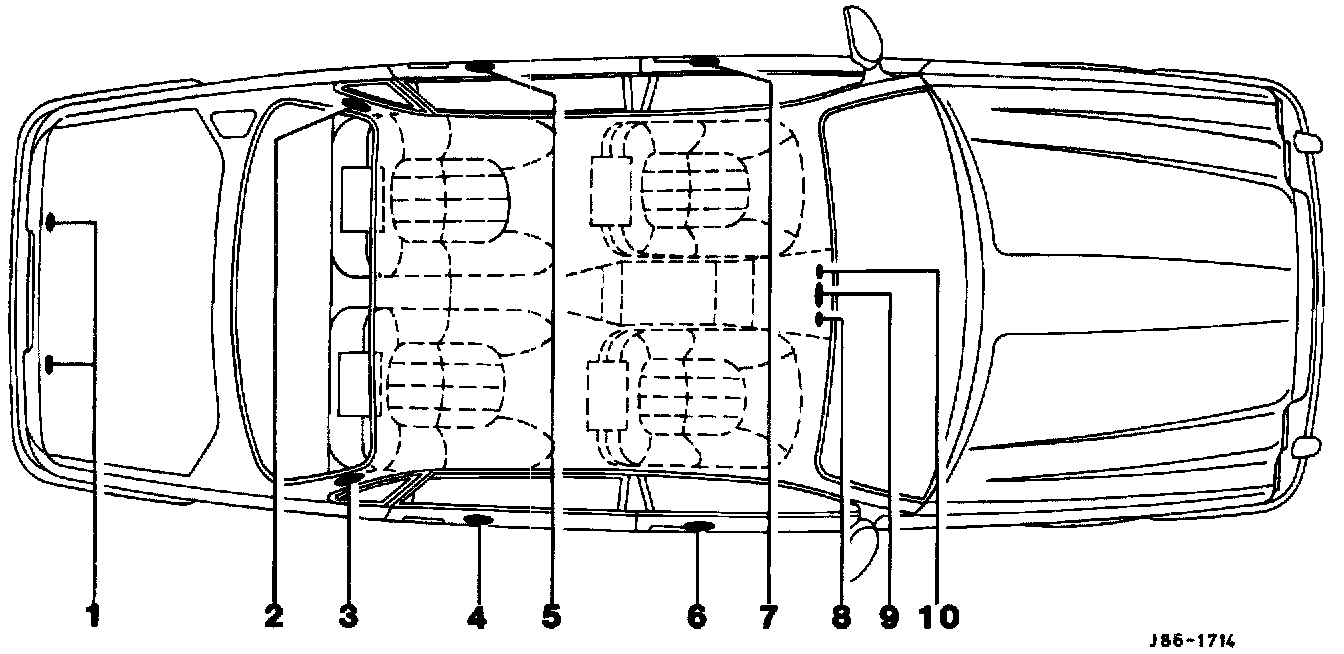

Interior Lighting Fig. 1:

The interior lamps consist of two of E-Post/courtesy lamps with integral reading lamp switch, a roof lighting module containing the interior light and two map lights with illuminated switches, sun visor lamps, door guard lamps, trunk lamps and where installed an illuminated glovebox actuated by integral switch.

The roof console containing the lighting module is secured, by two clips at the windscreen end of the assembly and by a 1/4 turn fastener which can be seen on opening the sunglasses holder.

Key to Image, Interior Lighting

Interior Lighting Number
Trunk Lamps 1
E-Post reading/courtesy lamp 2 & 3
Rear door guard lamp assembly 4 & 5
Front door guard lamp assembly 6 & 7
Front door lens 6 & 7
Interior/map lamp assembly (Lighting Module) 8, 9 & 10
