Exterior Lighting General Description & Layout

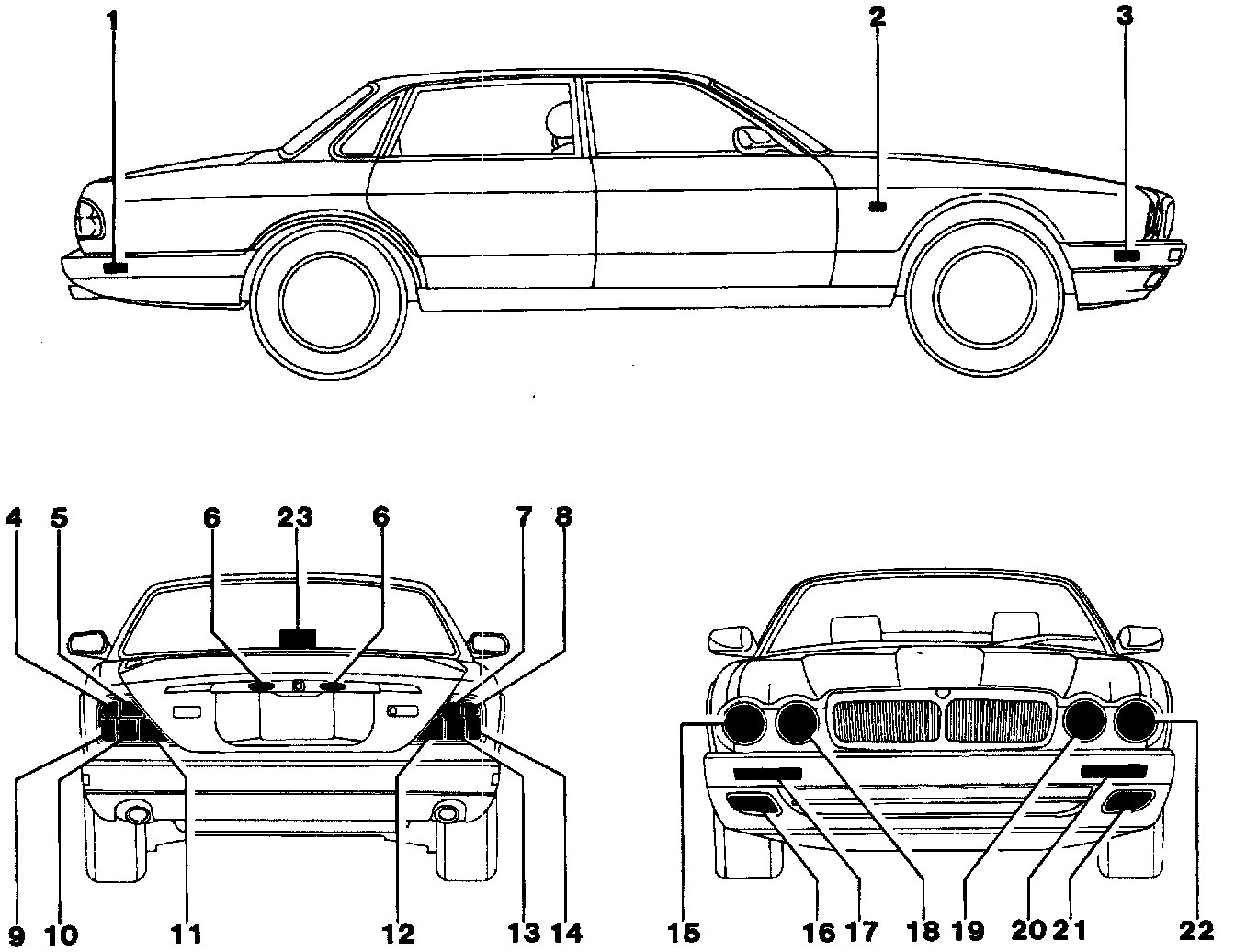

Exterior Lighting Fig. 1:

Image indicates all exterior lamps located at the front, the sides and the rear of the vehicle.

The exterior lamps consisting of two headlamp assemblies containing the inboard and outboard headlamp units incorporating the pilot bulbs, the fog lamps, the front direction indicator lamps and side marker lamps installed through the front bumper, the repeater lamps positioned or the fenders, the number plate lamps and the rear lights incorporating tail, stop, flasher and fog lamps.

The head lamp and the tail lamp assemblies are installed to the body apertures using nuts, screws and washers, whereas all remaining exterior lights are clipped in to their respective positions. Before removing the headlamp assemblies, remove the radiator grill followed by the headlamp rim finisher.


NOTE: Each newly positioned head lamp unit, is to be realigned.


Key to Image, Exterior Lighting

Exterior Lighting Number
Rear side marker lamp (Where installed) 1
Side repeater lamp 2
Front side marker lamp assembly (Where installed) 3
Tail lamp assembly
Bulb holder incorporates:
Rear indicators 4 & 8
Reverse lights 5 & 7
Brake/side lights 9 & 14
Rear side lights 10 & 13
Rear fog lamp 11 & 12
Number plate lamp assembly 6
Headlamp assemblies
Headlamp rim finisher
Outboard headlamp unit 15 & 22
Inboard headlamp unit 18 & 19
Front indicator assembly, Right-hand 17
Front indicator assembly, Left-hand 20
Front fog lamps 16 & 21
High level stop lamp assembly 23
