Climate Control, Part 1
Climate Control, Part 1z��Climate Control System, Part 1:

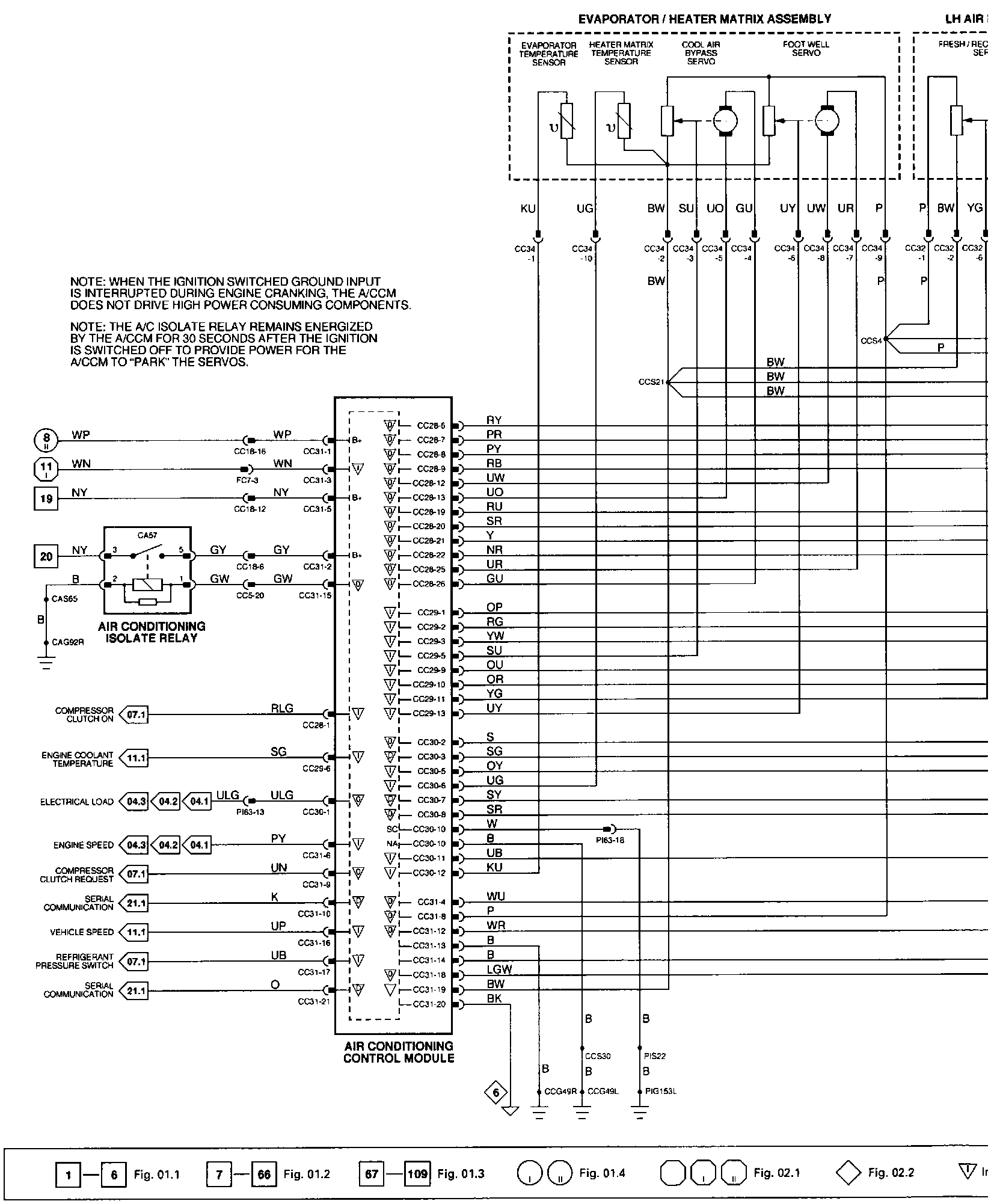

Wiring Diagram
Use the Hyperlink (VIEW) button to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

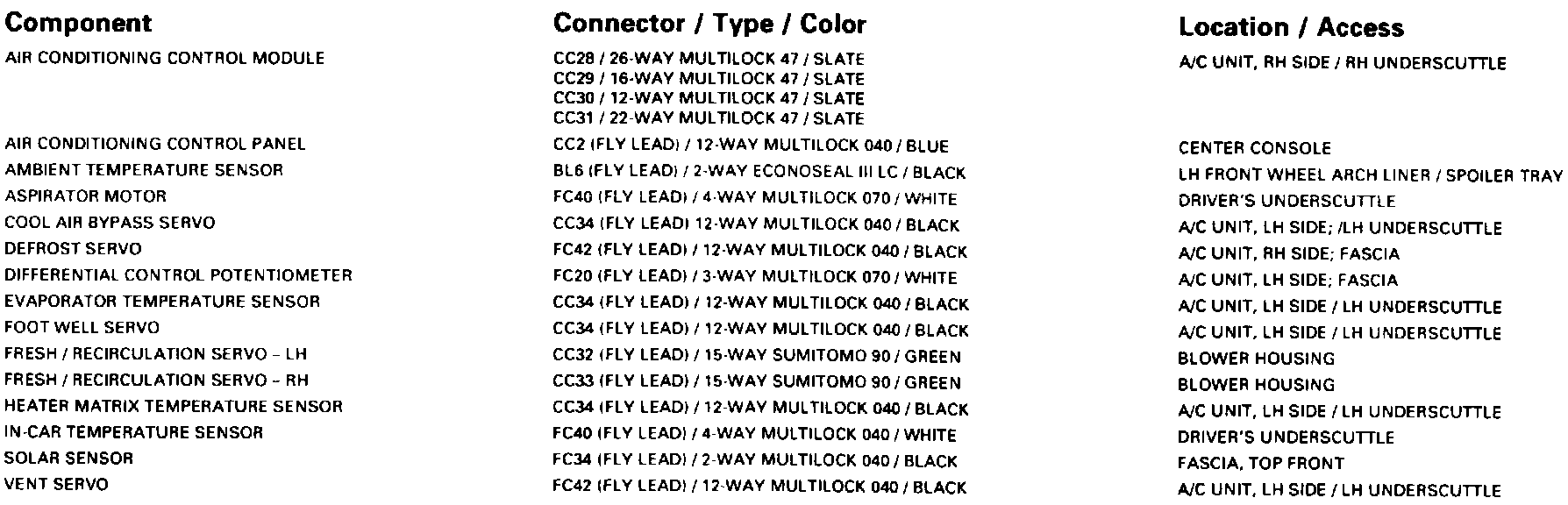

Climate Control System, Part 1: Components:
Component Information
Climate Control System, Part 1: Relays:
Relay Information

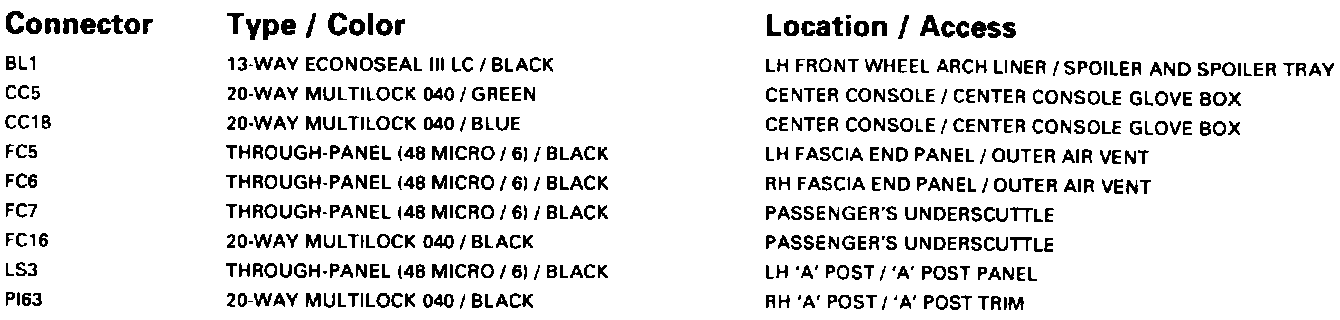

Climate Control System, Part 1: Harness-To-Harness Connectors:
Harness-To-Harness Connectors Informations

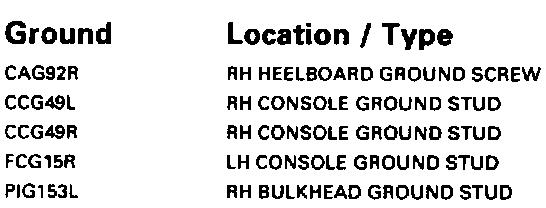

Climate Control System, Part 1: Grounds:
Ground Information
���Climate Control System, Part 1: Control Module Pin Out Information:
Control Module Pin Out Informations
