System Configuration

COOLING SYSTEM CONFIGURATION

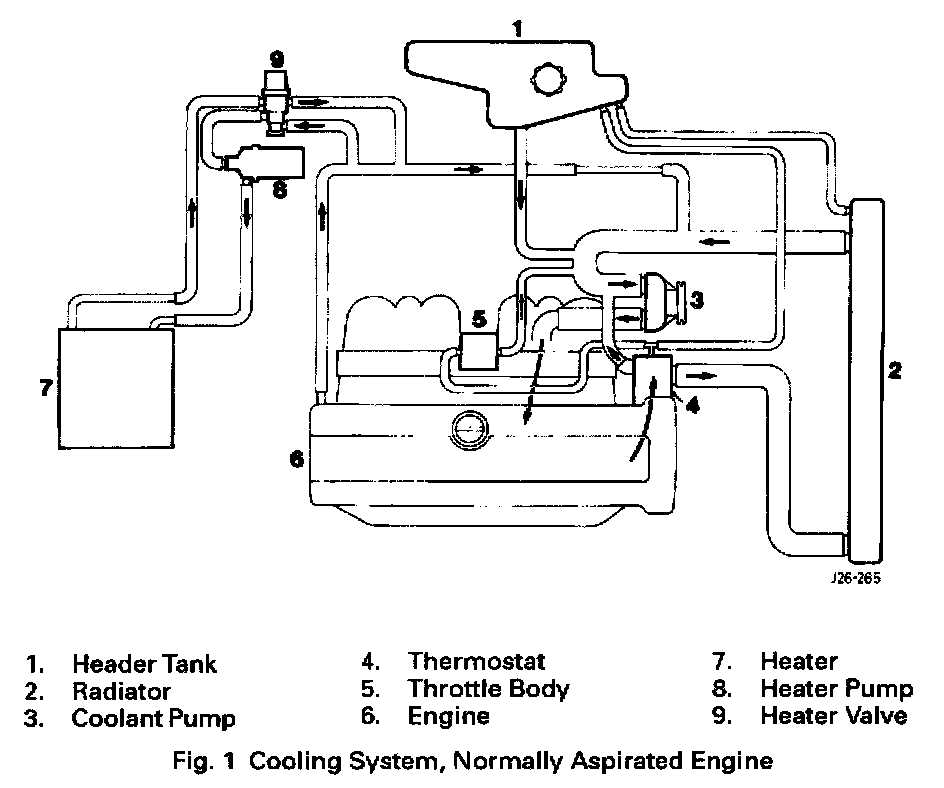

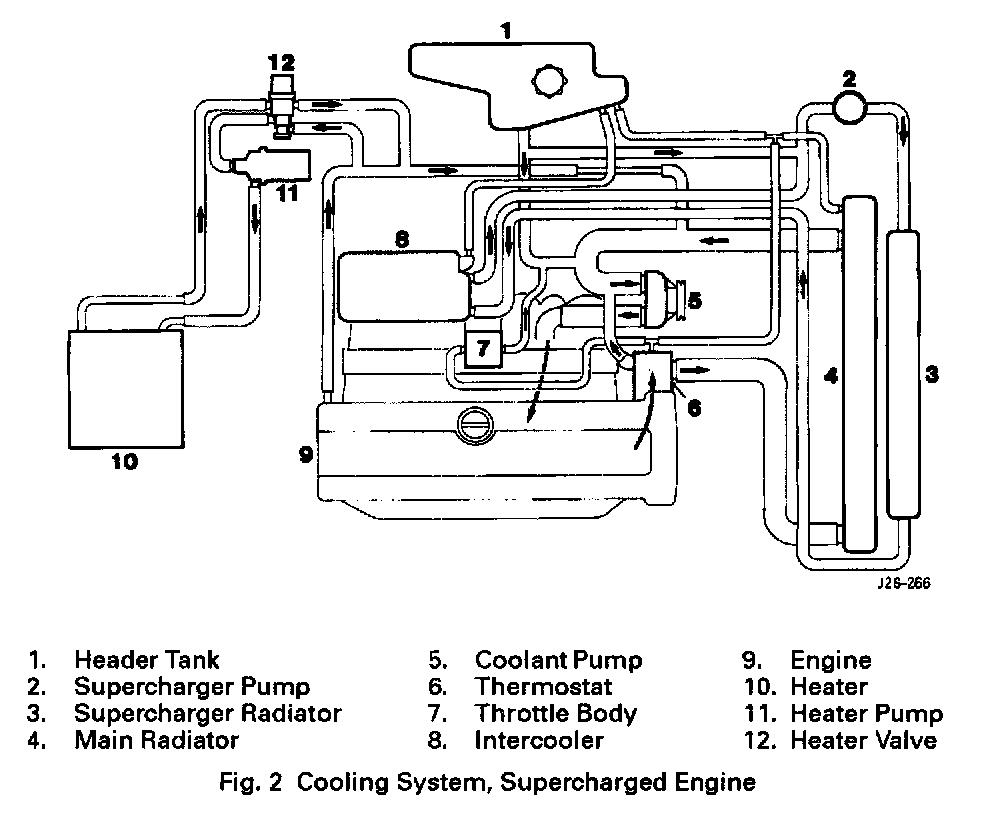

The configuration of the cooling system for normally aspirated and supercharged engines is shown in Fig. 1 and Fig. 2. The main coolant flows, with the system at normal operating temperature (i.e. with the engine thermostat open), are indicated by arrows.
