System Diagram

��Engine Management:

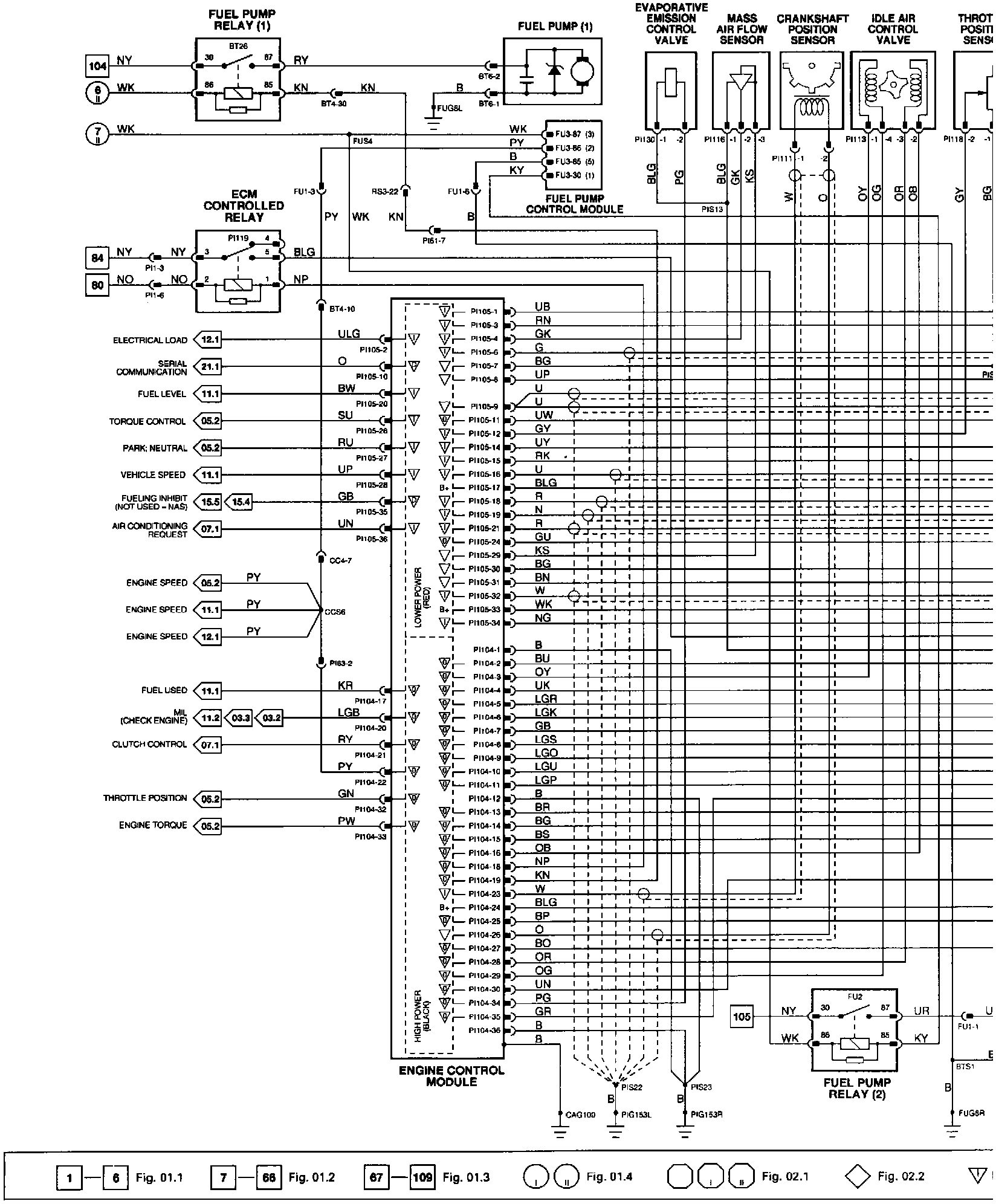

Wiring Diagram

Use the Hyperlink (VIEW) button to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

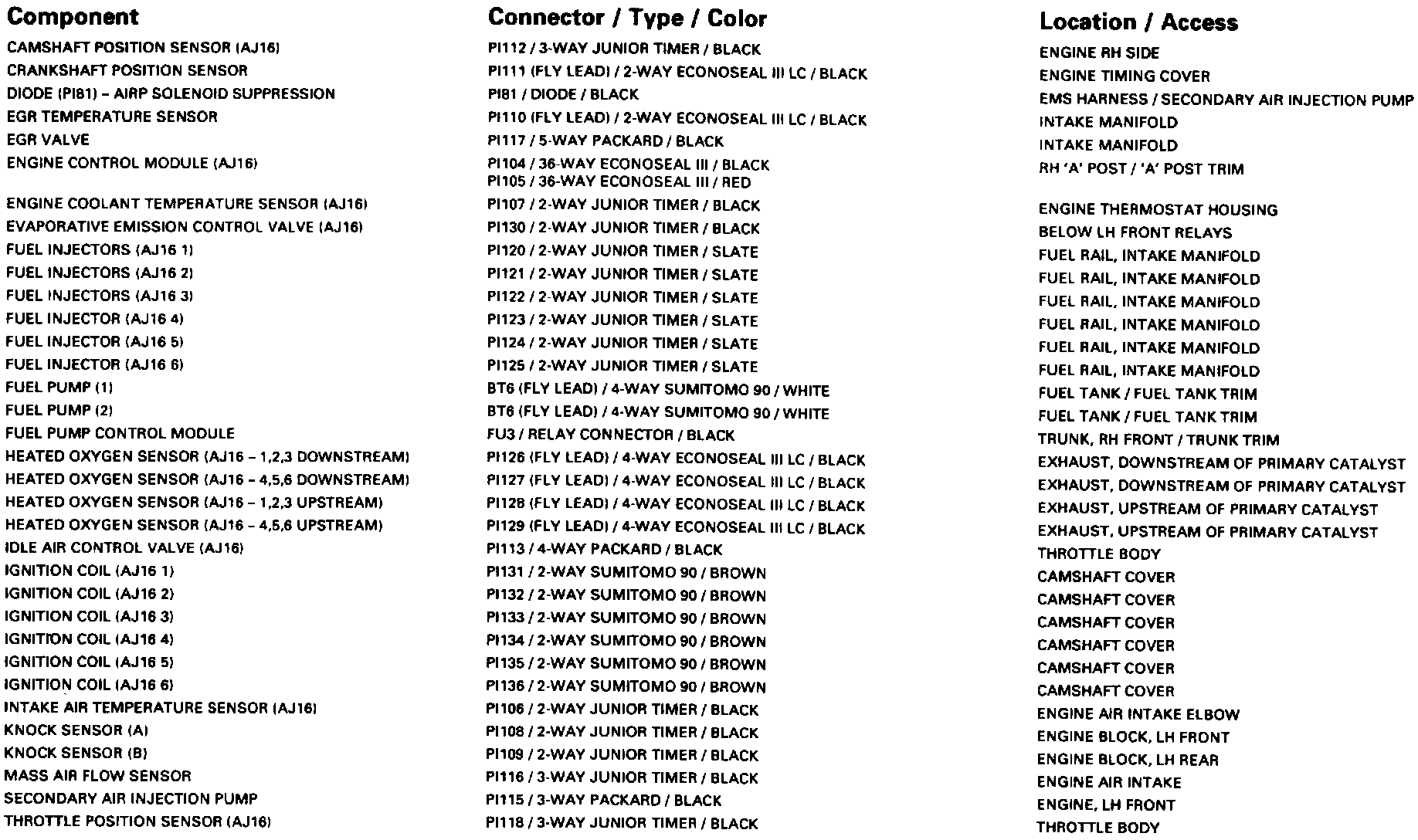

Engine Management: Components:

Component Information

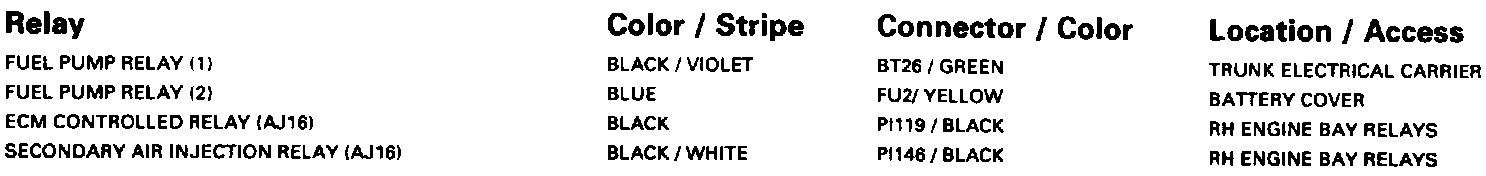

Engine Management: Relays:

Relay Information

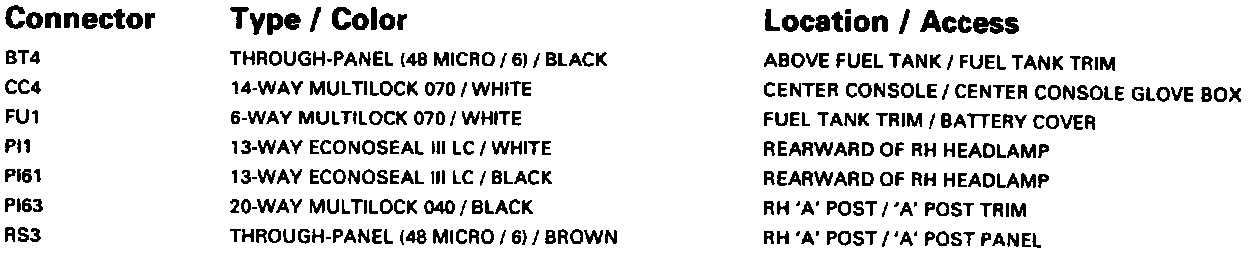

Engine Management: Harness-To-Harness Connectors:

Harness-To-Harness Connectors Informations

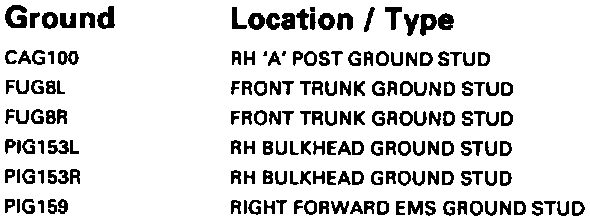

Engine Management: Grounds:

Ground Information

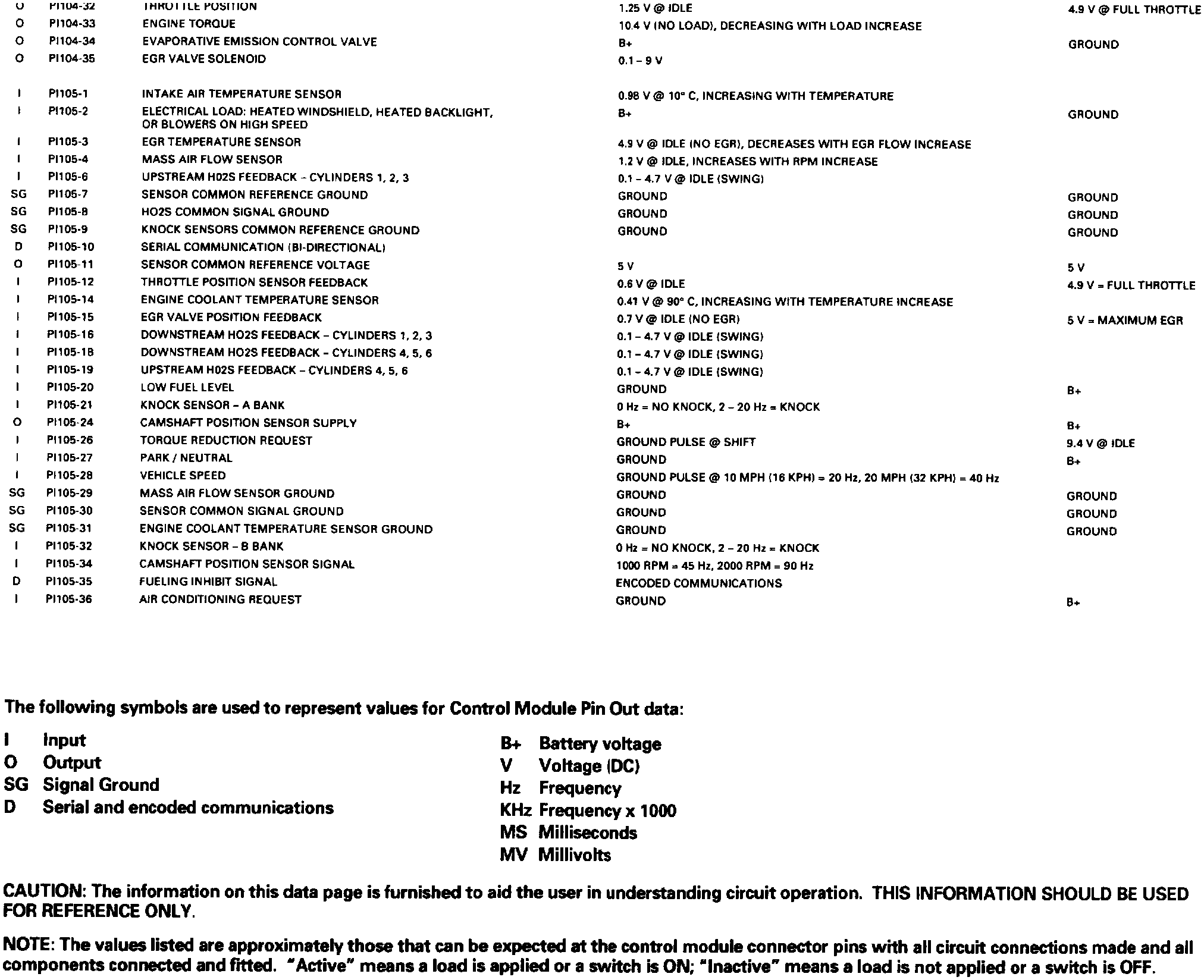

<O�Engine Management: Control Module Pin Out Information:

Control Module Pin Out Informations
