Data Link Connector

oM}Serial Communication Data Link:

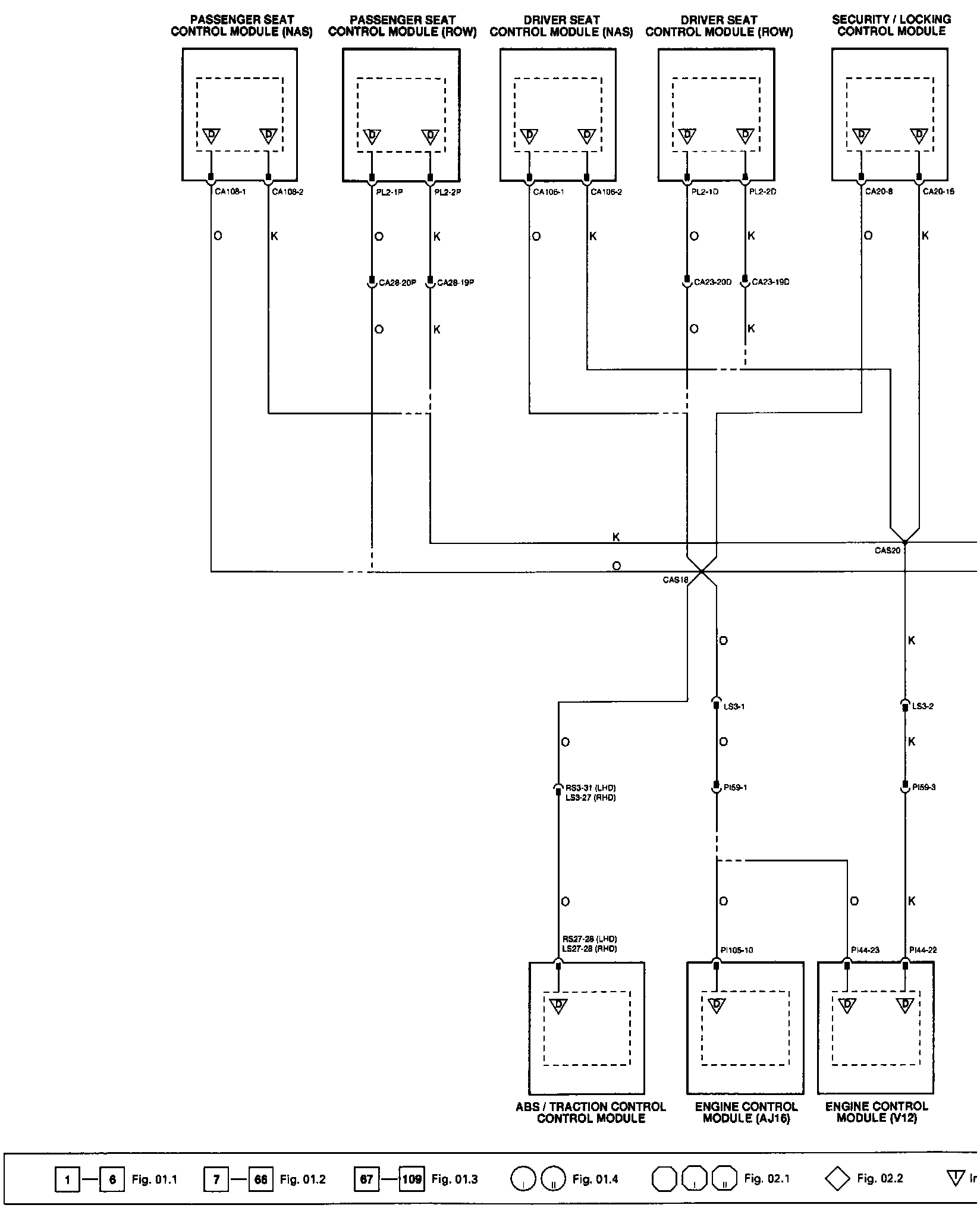

Wiring Diagram

Use the Hyperlink (VIEW) button to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

Serial Communication Data Link: Components:

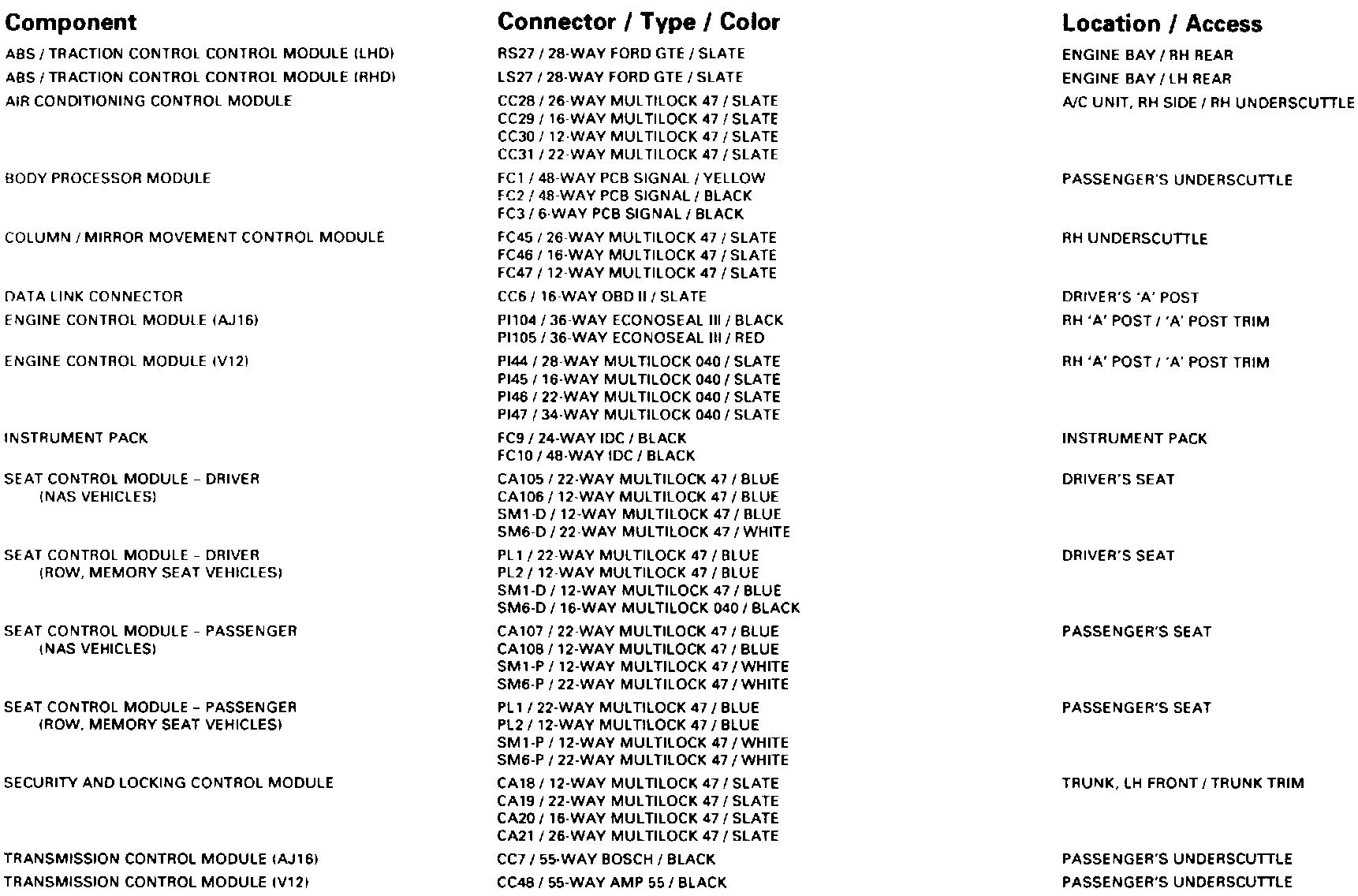

Component Information

Serial Communication Data Link: Harness-To-Harness Connectors:

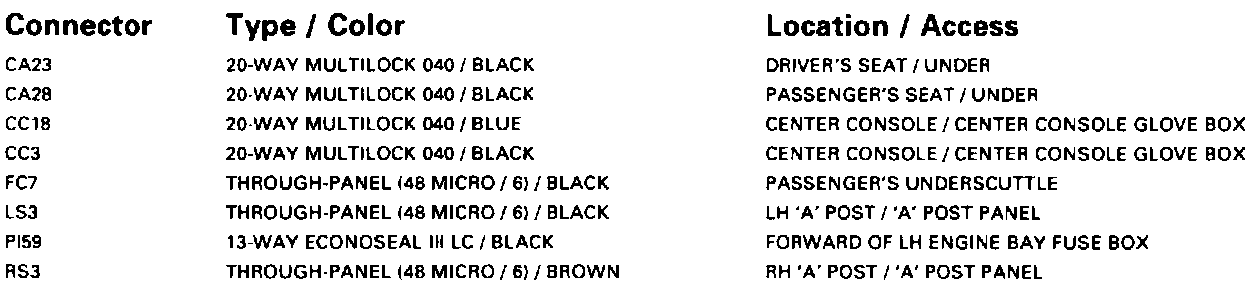

Harness-To-Harness Connectors Informations

Serial Communication Data Link: Grounds:

Ground Information
