Ignition Switched Power Distribution

°6�Ignition Switched Power Distribution:

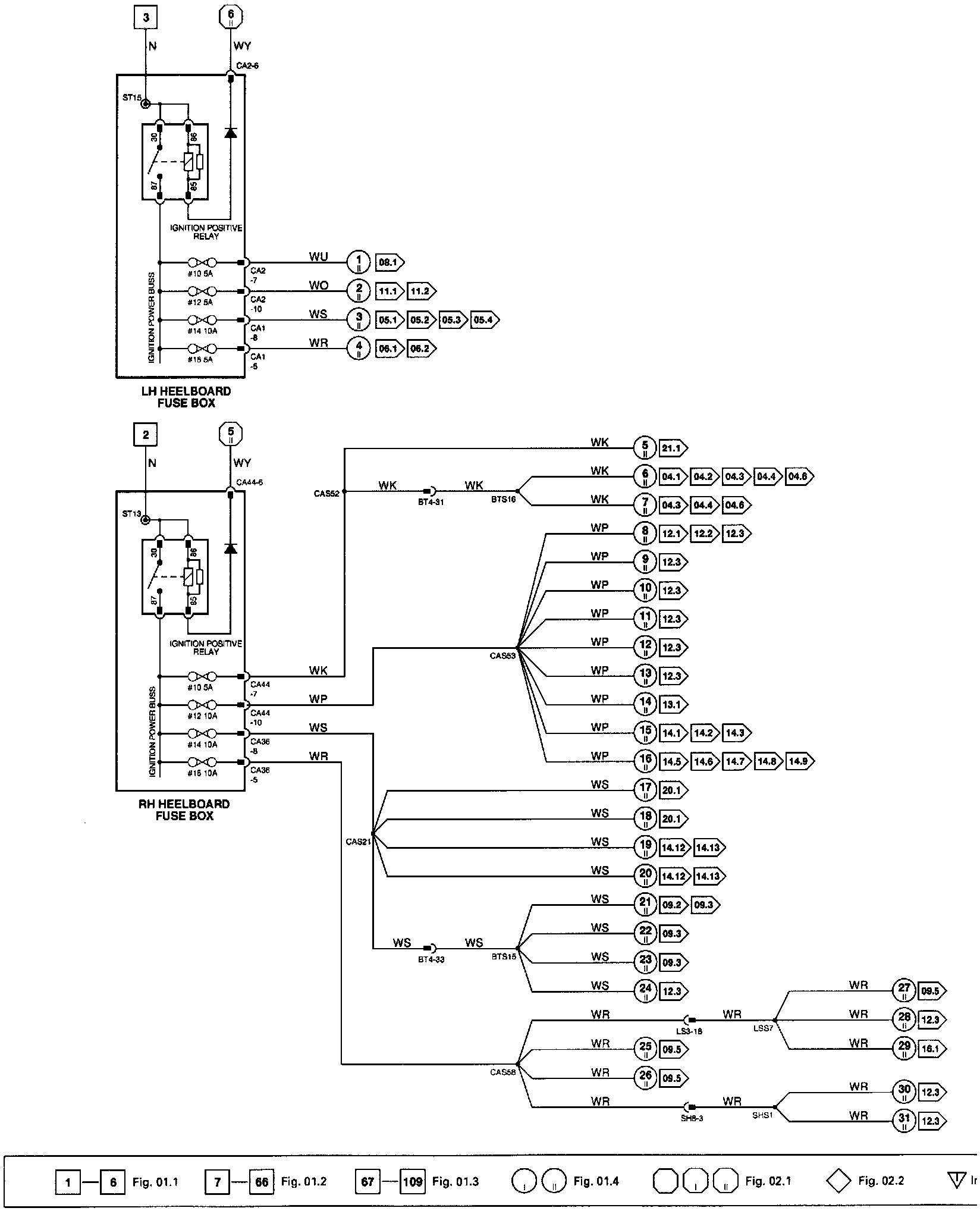

Wiring Diagram

Use the Hyperlink (VIEW) button to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

Ignition Switched Power Distribution: Components:

Components Information

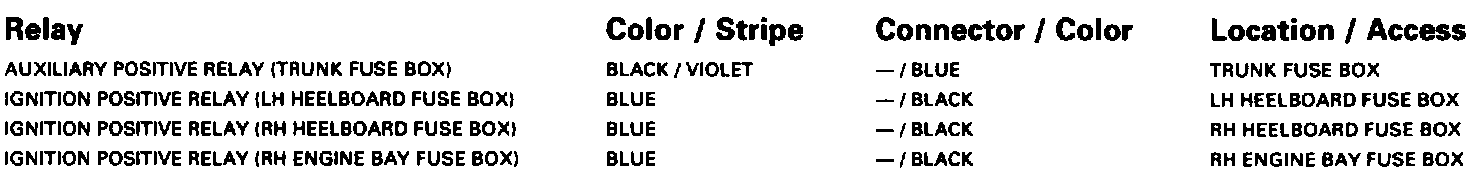

Ignition Switched Power Distribution: Relays:

Relays Information

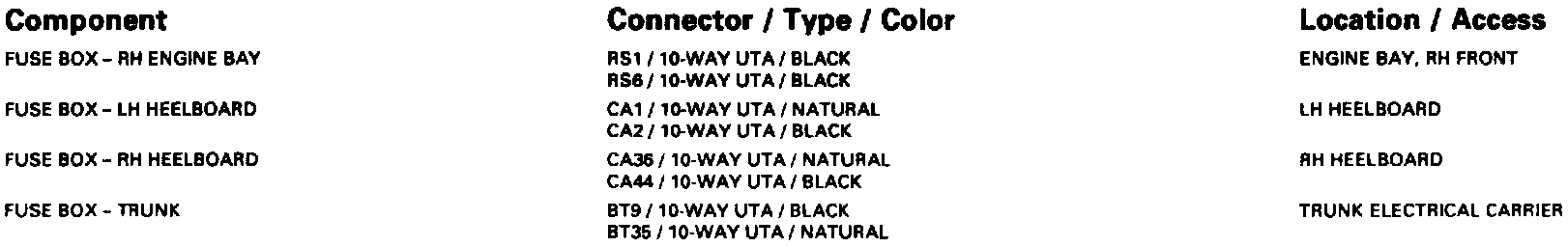

Ignition Switched Power Distribution: Harness-To-Harness Connectors:

Harness-To-Harness Connectors Information
