System Diagram

79�$Instrument Hazard/Warning Display:

Wiring Diagram

Use the Hyperlink (VIEW) button to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

Instrument Hazard/Warning Display: Components:

Component Information

Instrument Hazard/Warning Display: Harness-To-harness Connectors:

Harness-To-Harness Connectors Informations

Instrument Hazard/Warning Display: Grounds:

Ground Information

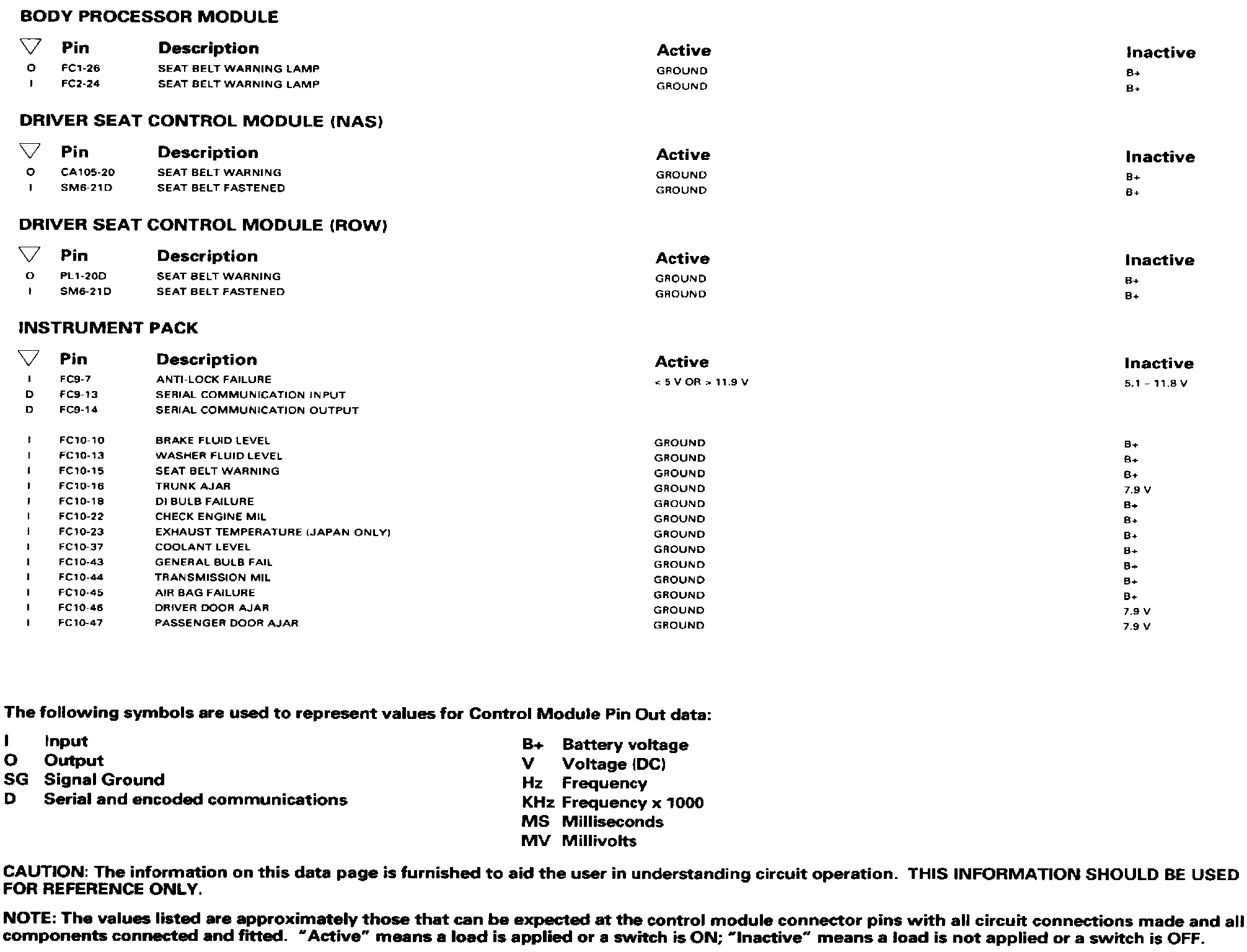

Instrument Hazard/Warning Display: Control Module Pin Out Information:

Control Module Pin Out Informations
