SUPER CHARGED TRANSMISSION CONTROL

�f{:

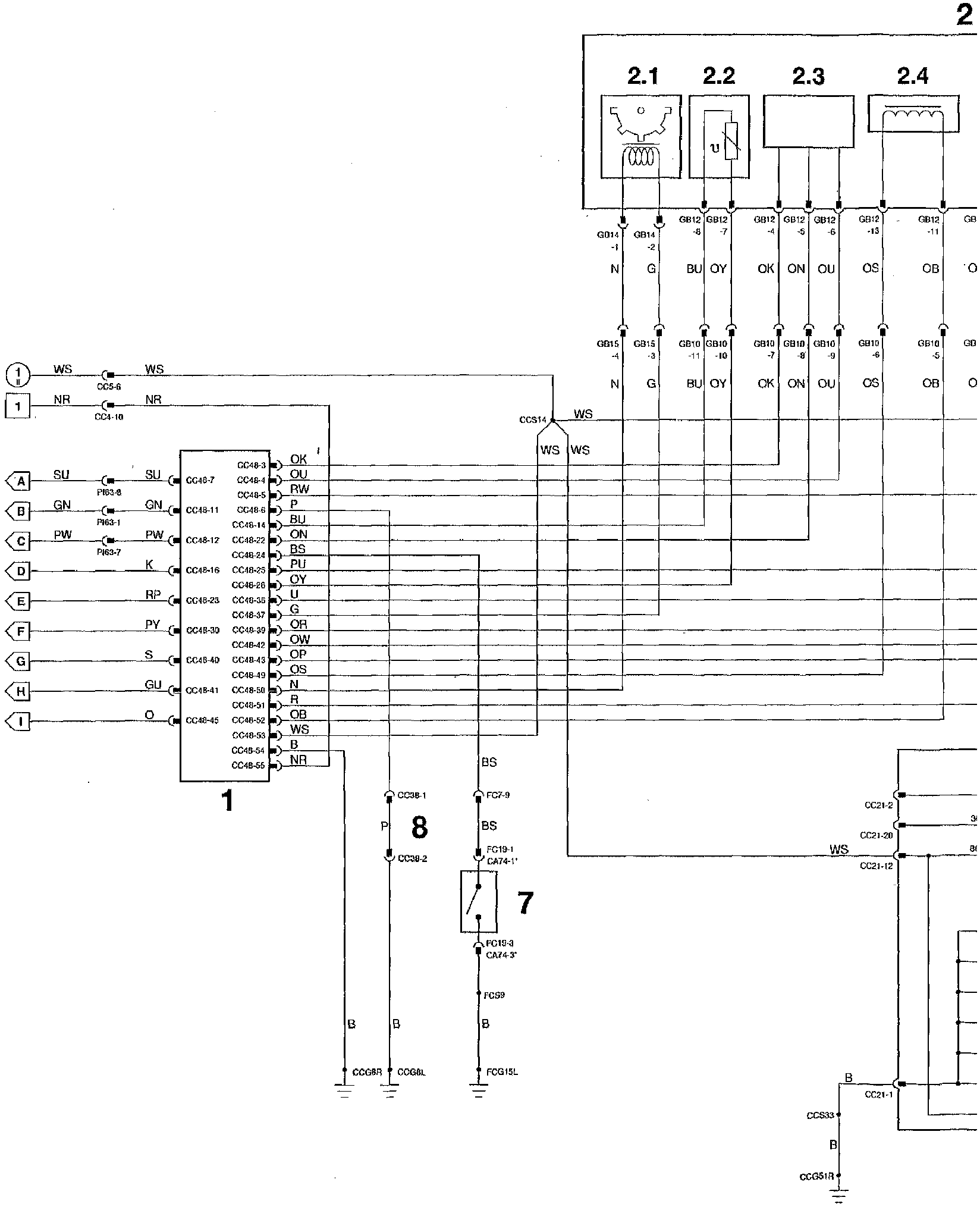

Wiring Diagram

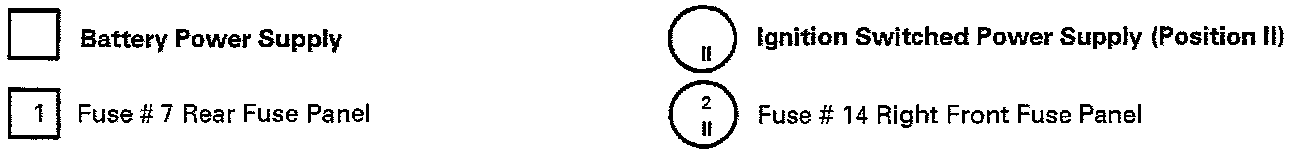

Wiring Diagram Symbols

Key to Wiring Diagram:
1 - Transmission Control Module
2 - Transmission
2.1 - Input Speed Sensor
2.2 - Transmission Temperature Sensor
2.3 - Pressure Switch Manifold
2.4 - Variable Force Motor
2.5 - Shift Solenoid B
2.6 - Shift Solenoid A
2.7 - Torque Converter Clutch Solenoid
2.8 - Output Speed Sensor
3 - Mode Switch
4 - Brake Switch
5 - Gear Selector Indicator Module
6 - Linear Gear Position Switches
7 - Kickdown Switch
8 - Calibration Select Link

A - EMS: Torque Reduction
B - EMS: Throttle Position
C - EMS: Engine Torque
D - Data Link: Serial Input
E - ABS I Traction: Traction Active
F - EMS: Engine Speed
G - Instrument Pack: Transmission MIL
H - Instrument Pack: Sport Indicator
I - Data Link: Serial Output
J - Reverse Lights: Reverse
K - Cruise Control: Inhibit
L - Mirror/Column: Reverse
M - Body Processor Unit: Park, Neutral
N - EMS: Park, Neutral
Ignition Switched Power Supply (Position II)
Fuse # 14 Left Fuse Panel
Battery Power Supply
Fuse # 5 Right Fuse Panel
