Automatic Transmission

<lAutomatic Transmission:

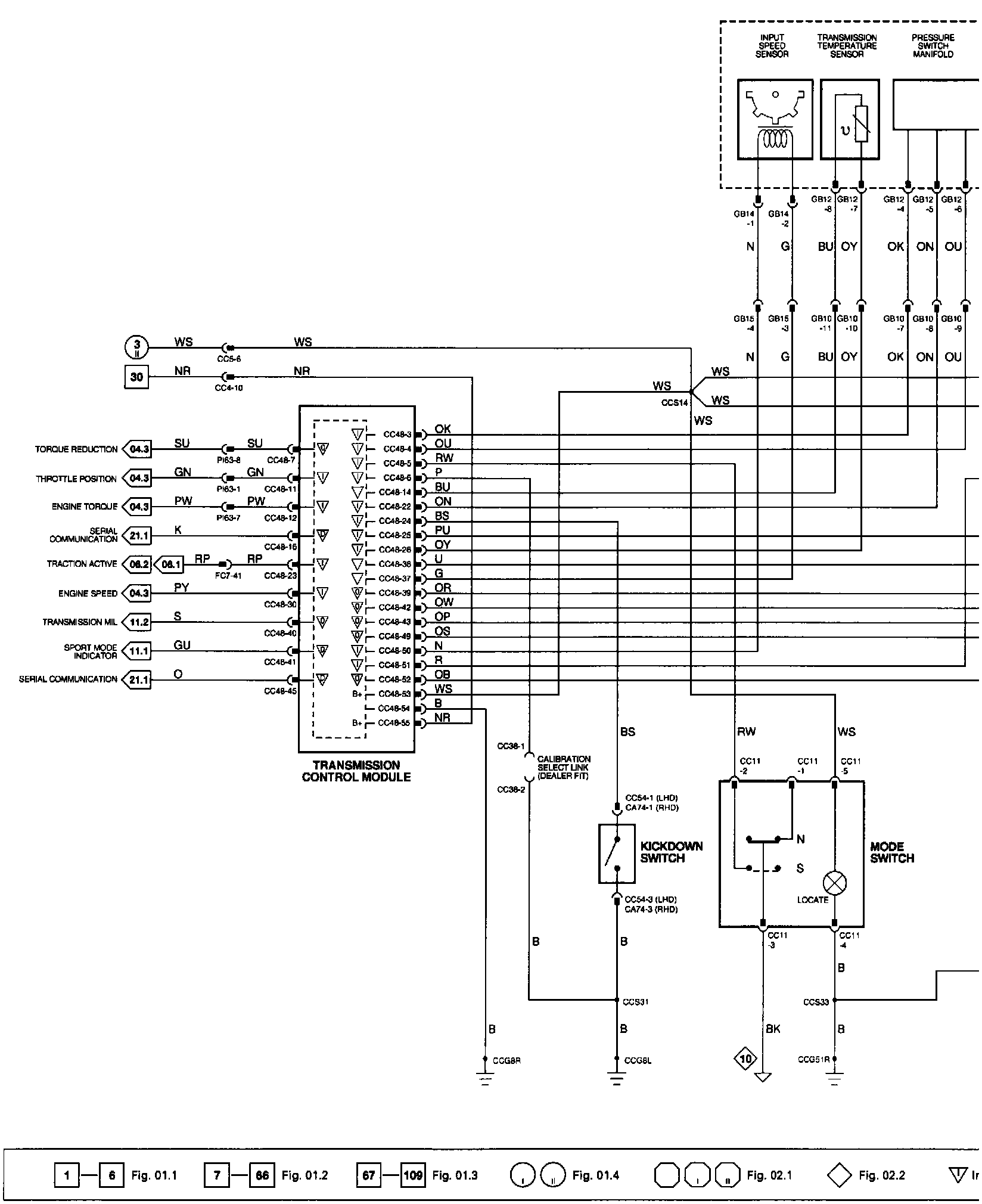

Wiring Diagram

Use the Hyperlink (VIEW) button to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

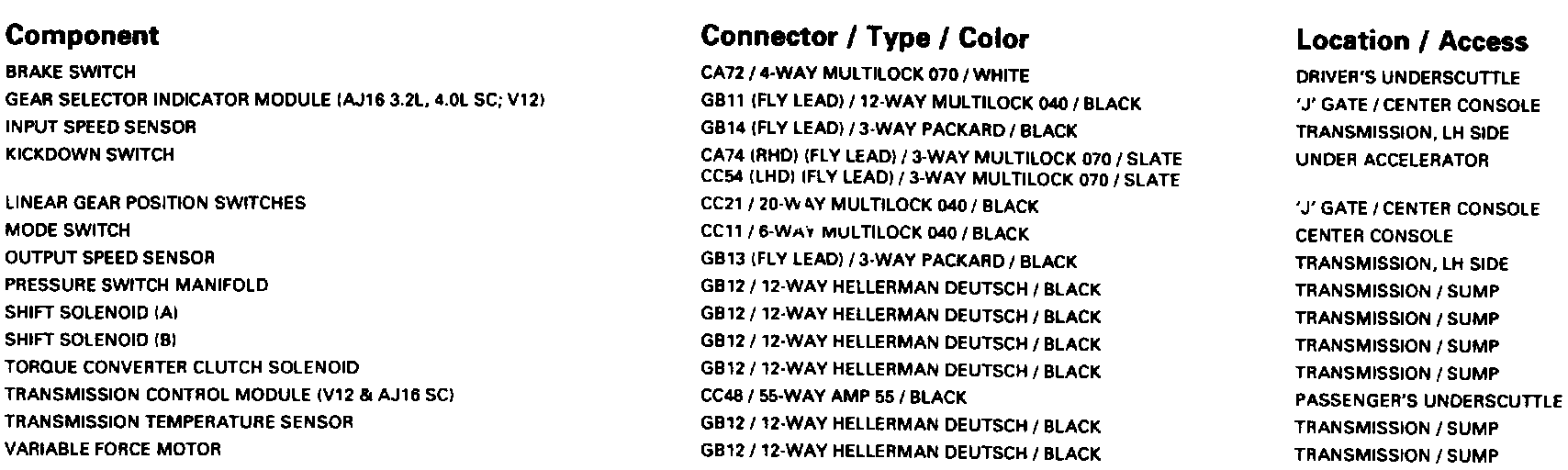

Automatic Transmission: Components:

Components Informations

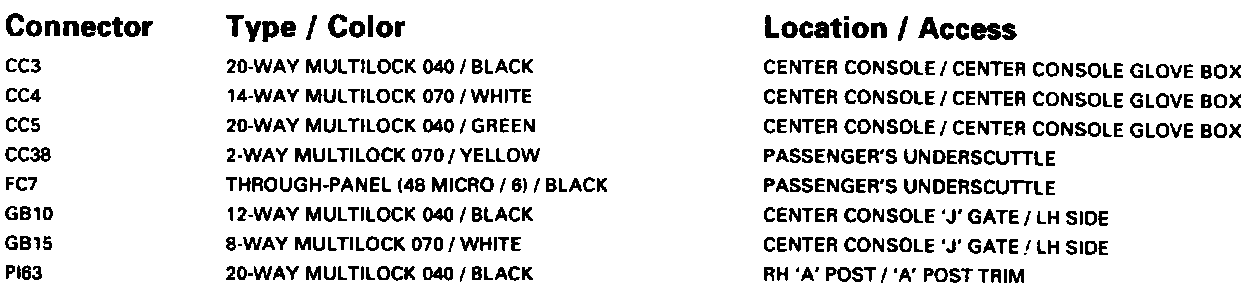

Automatic Transmission: Harness-To-Harness Connectors:

Harness-To-Harness Connectors Informations

Automatic Transmission: Grounds:

Grounds Informations

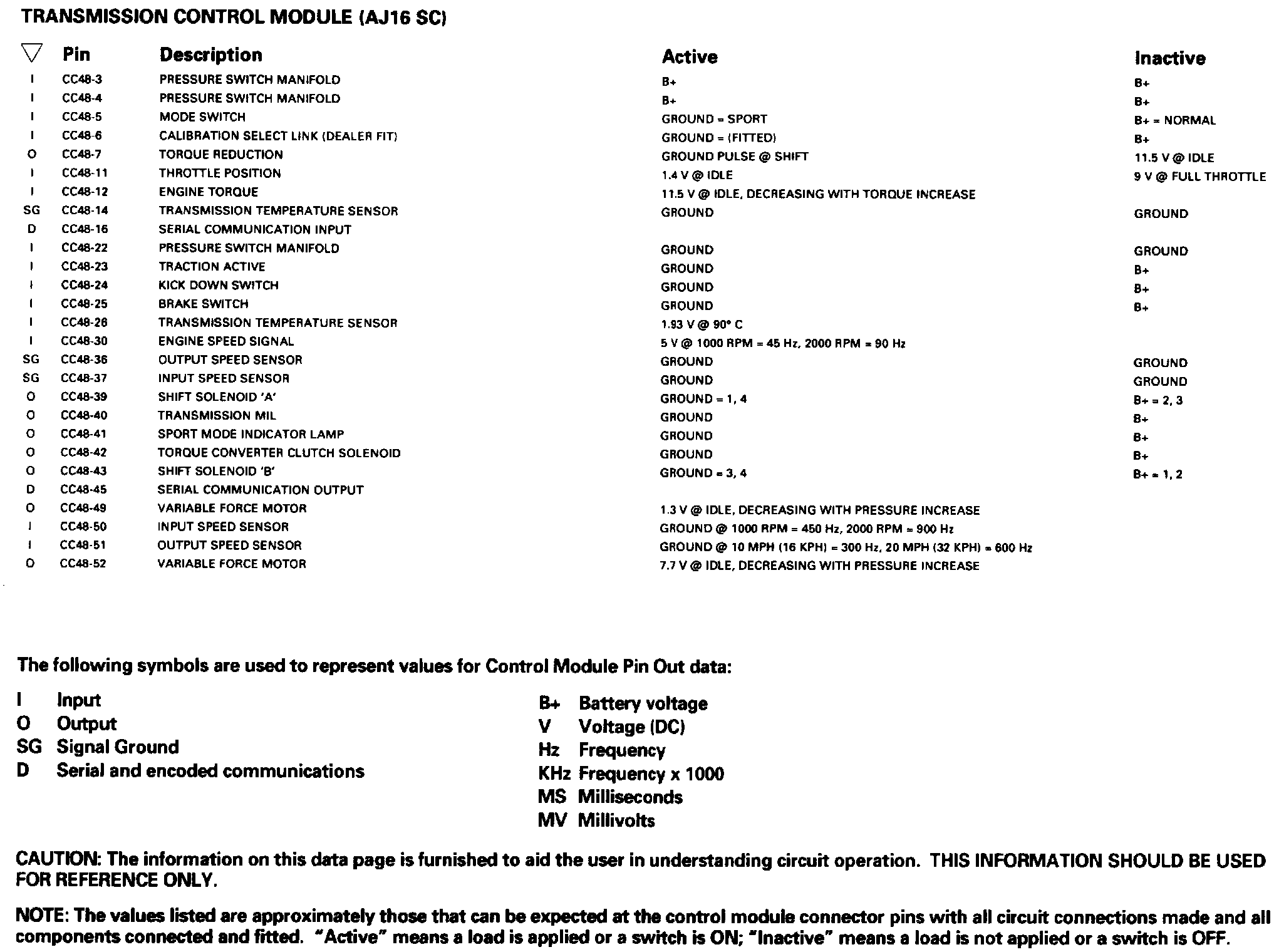

Automatic Transmission: Control Module Pin Out Information:

Control Module Pin Out Informations
