Shift Interlock, A/T

��]Gearshift Interlock:

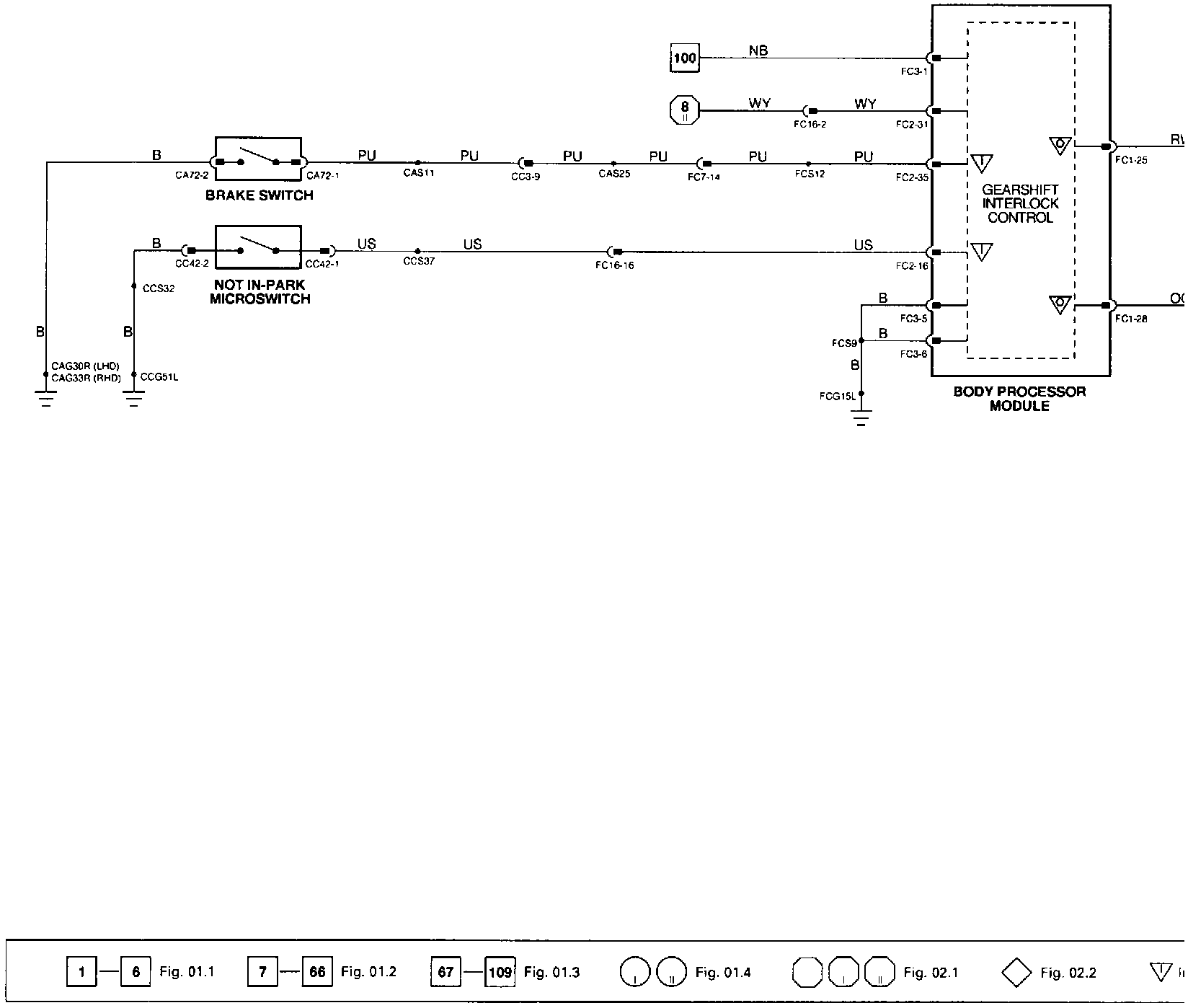

Wiring Diagram

Use the Hyperlink (VIEW) button to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

Gearshift Interlock: Components:

Components Informations

Gearshift Interlock: Relays:

Relays Informations

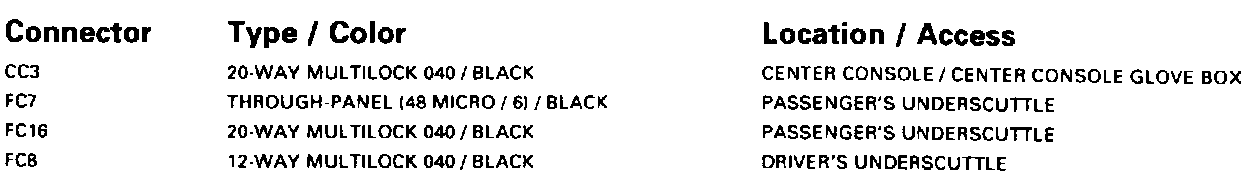

Gearshift Interlock: Harness-To-Harness Connectors:

Harness-To-Harness Connectors Informations

Gearshift Interlock: Grounds:

Grounds Informations

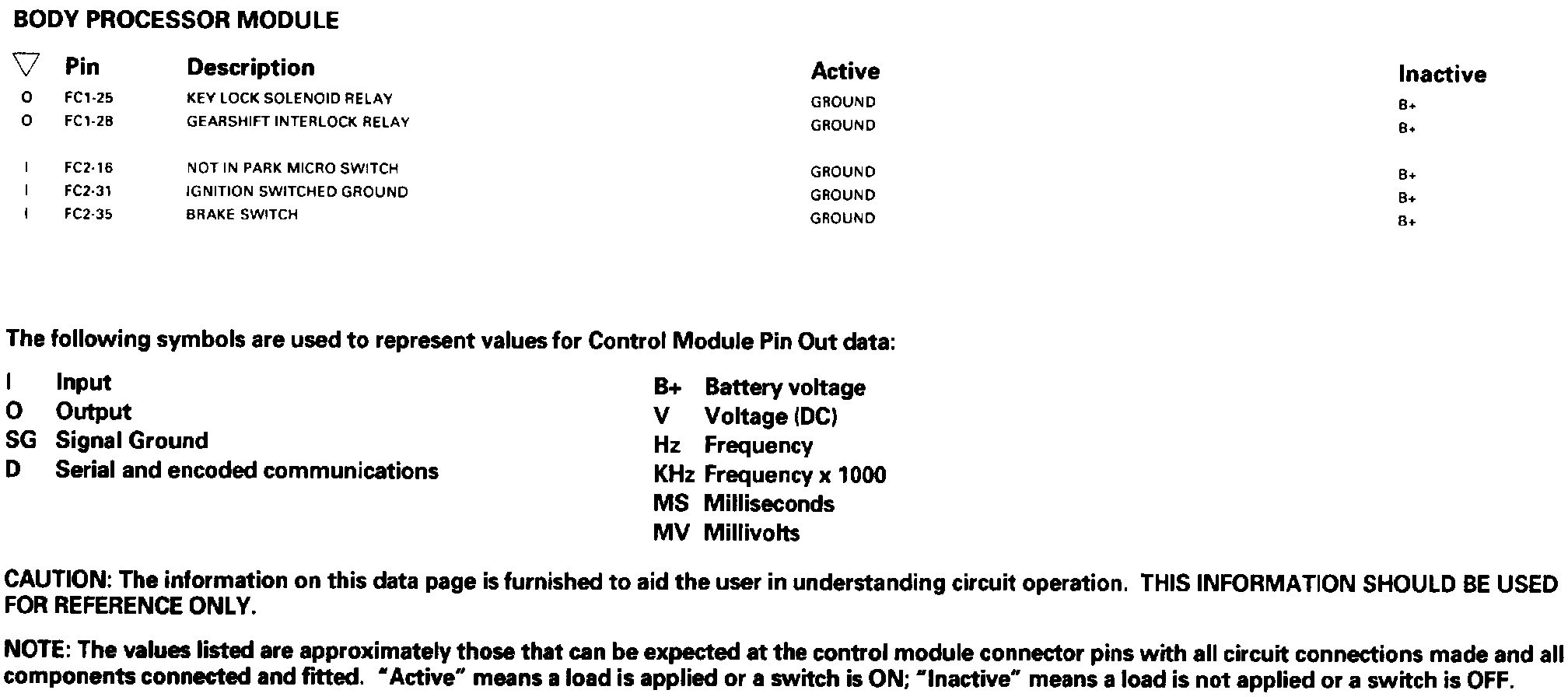

Gearshift Interlock: Control Module Pin Out Information:

Control Module Pin Out Informations
